One-Click Cleaner
One-Click Cleaner
Tired of twisting your wrist while cleaning the connector end face?
Fujikura’s One-Click™ Cleaner is an easy-to-use option for cleaning connectors on jumpers and in adapters. Simply insert the One-Click™ Cleaner into an adapter and push until a “click” is heard. The fiber end-face is effectively and gently cleaned.
The One-Click™ Cleaner’s design protects the customer’s equipment by dry-cleaning and removing contamination from the alignment sleeve or ferrule.
Ordering Information
| DESCRIPTION | Fujikura Number |
| One-Click Cleaner SC, ST, FC (500+ cleans) | SC-CLK-B |
| One-Click Cleaner Mini-500 SC, ST, FC (500+ cleans) | SC-MINI-CLK-A |
| One-Click Cleaner MU/LC (500+ cleans) | MU/LC-CLK-C |
| One-Click Cleaner Mini-500 MU/LC (500+ cleans) | MU/LC-MINI-CLK-A |

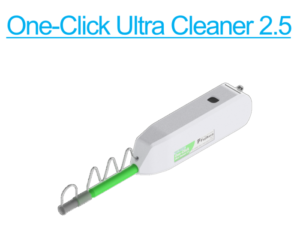

| One-Click Ultra Cleaner 2.5 (enlarged cleaning) SC, ST, FC (500+ cleans) | M250-E-CLK-A |
| One-Click Cleaner HOC, Hardened Optic Connectors (500+ cleans) | HOC-CLK-A |
| One-Click Cleaner D-LC, Duplex LC (2 x 500+ cleans) | DLC-CLK-A |
| One-Click Cleaner SN Duplex (2 x 500+ cleans) | SN-CLK-A |

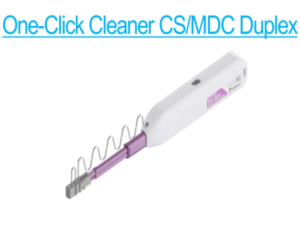

| One-Click Cleaner CS/MDC Duplex (2 x 500+ cleans) | CS/MDC-CLK-A |
| One-Click Cleaner ODC, outdoor connector (500+ cleans) | ODC-CLK-A |
| One-Click Cleaner M20, 2.0 mm ferrule (500+ cleans) | M20-CLK-A |
| One-Click Cleaner MT-RJ (500+ cleans) | MTRJ-CLK-A |

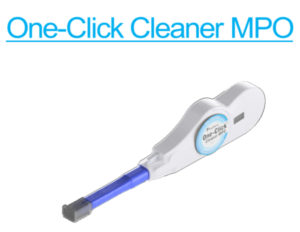

| One-Click Cleaner MPO (500+ cleans) | MPO-CLK-D |
| One-Click Cleaner MPO-16 (500+ cleans） | MPO16-CLK-A |
| One-Click Cleaner MT-BP (500+ cleans) | MT-BP-CLK-A |
One-Click™ Cleaner
■Function/ handling type : One-Push
■No. of cleanings : >500times
■Cleaning method : Dry(Cleaning the ferrule endface with cleaning cloth, with no chemical of solvent)
| Model number | Classification | Applicable fiber optic connector & adapter | Dimension(mm) (*1) | |

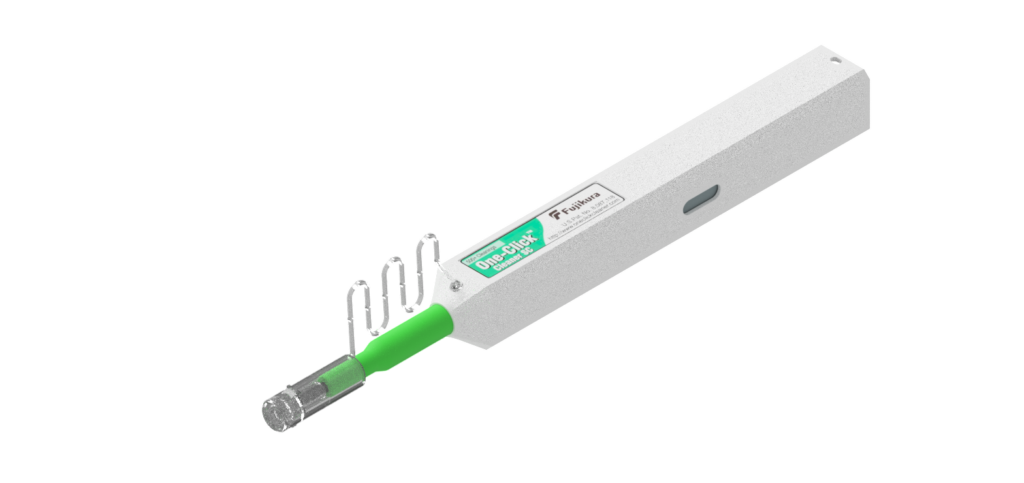

 | SC-CLK-B | Green | SC/SC2,FC,ST | W17.5*H17.5*L165 (*2) |

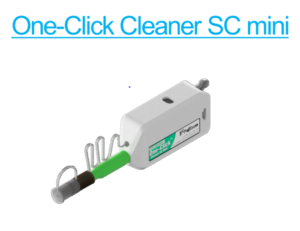

 | SC-MINI-CLK-A | Green | SC/SC2,FC,ST | W17.5*H30.5*L104 |
 | MU/LC-CLK-C | Blue | MU,LC | W17.5*H17.5*L173 (*2) |
 | MU/LC-MINI-CLK-A | Blue | MU,LC | W17.5*H30.5*L104 |
 | M250-E-CLK-A | Green | SC/SC2,FC,ST | W22.7*H33.6*L208 |
 | HOC-CLK-A | Green | SC (TRIDENT™,TITAN RTD™) (*3) | W17.5*H17.5*L166.5 |
 | DLC-CLK-A | Blue | Duplex LC | W18*H30*L205 |

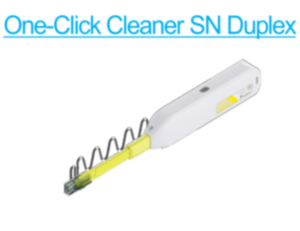

 | SN-CLK-A | Yellow | SN™ (*4) | W18*H30*L220 |
 | CS/MDC-CLK-A | Purple | CS™, MDC (*5) | W18*H30*L220 |
 | ODC-CLK-A | Purple | MU,LC,φ1.25mm Multi-connector | W17.5*H17.5*L178 (*2) |
 | M20-CLK-A | Gray | φ2.0mm Multi-connector (SMPTE 304M M20-compliant) | W17.5*H17.5*L164 (*2) |
 | MTRJ-CLK-A | Beige | MTRJ | W22.7*H33.6*L209 |
 | MPO-CLK-D | Blue | MPO | W19*H43.5*L194 |

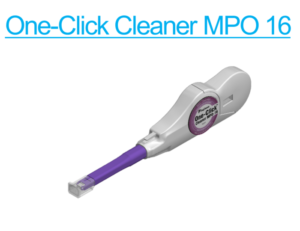

 | MPO16-CLK-A | Purple | MPO16 | W19*H43.5*L194 |

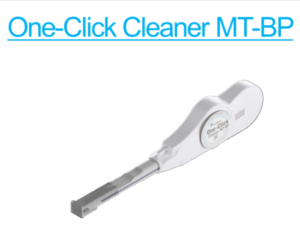

 | MT-BP-CLK-A | ― | HBMT™ (*6) | W19*H43.5*L194 |
(*1) Guide cap dimensions and prongs are not included.
(*2) Nozzle extendability:35mm extendable
(*3) TRIDENT™ and TITAN RTD™ are trademarks of AFL.
(*4) SN™ is a Registered Trademark of Senko Advanced Components, Inc. 2019 ©
(*5) CS™ is a Registered Trademark of Senko Advanced Components, Inc. 2018 ©
(*6) HBMT™ is a trademark of Molex.
Handbook

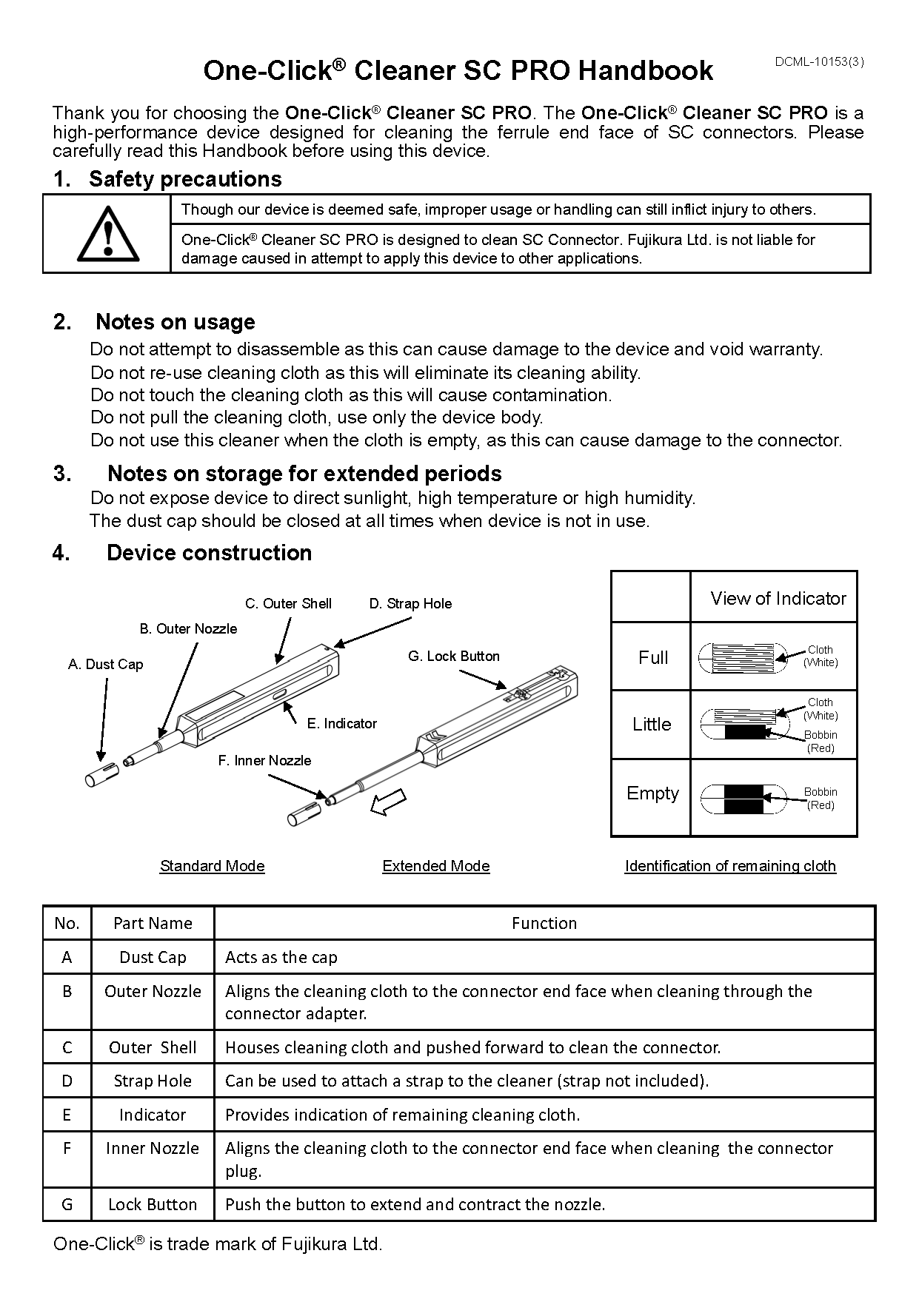

Manual for One-Click™
Applications
Cleaning Example (UPC Polish) with Enlarged Area Type

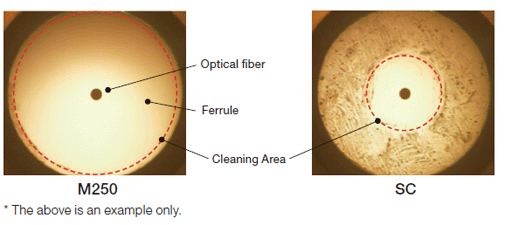

M250 type can clean wider area of the connector endface.。
Cleaning Example (UPC Polish)

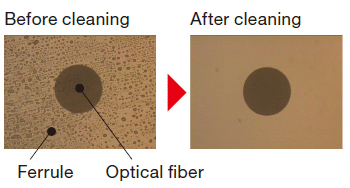

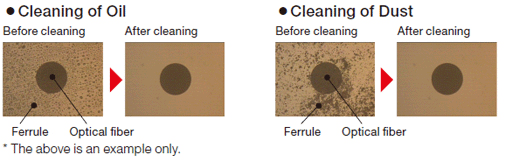

Enlarged image of endface before and after cleaning

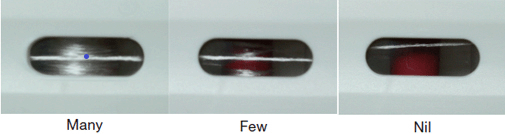

Check the remainder of cleaning cloth through window.
How to use*1

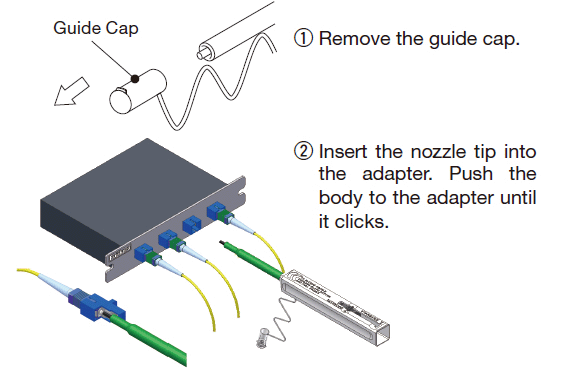

To clean the ferrule endface inside an adapter*2
Mini type is useful when the work space is limited and it is diffi cult for workers to access to adapters.
M250 type can clean wider area of the connector endface.
*1 Do not use the cleaner except for the endface cleaning.
*2 Limited to the connector endface inside an adapter.
Points

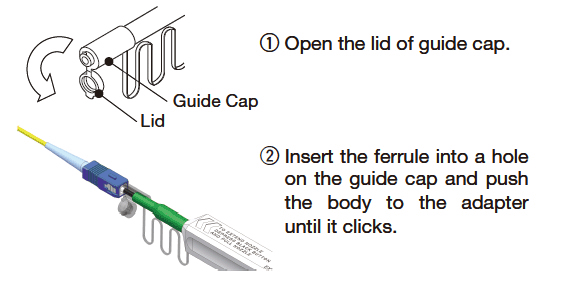

1. Insert the cleaner tip into the adapter or connector on jumpers straight and vertically, and then push it.
2. Push it slowly and gently.
3. Do not push it after hearing the click sound. Take it out gently and backward.
4. Do not squeeze it into the adapter or connector.
Cleaning Example (UPC Polish)
Enlarged image of endface before and after cleaning Extension
Cleaning of Oil
Cleaning of Dust
* The above is an example only.
