画像伝送

フジクラのイメージファイバ（画像伝送用）は数千から数万本の石英系光ファイバが溶融一体化されたマルチコア光ファイバです。画像伝送路としてファイバスコープなどの分野で応用されています。

製品一覧

Coating material	Polymide	UV curable resin				UV curable resin / Polyester elastomer
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm 82%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
1550nm band	[Φ125 μm] SRSM15-PS-Y15	[Φ125 μm] SM15-PS-U25D SM15-PS-U40D	[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H [Φ80 μm] RCSM15-PS-U17C RCHA15-PS-U17C	[Φ125 μm] BISM15-PX-U25D-H	[Φ125 μm] BIR5-15-PX-U25D [Φ80 μm] RCBI15-PX-U17D	[Φ125 μm] SM15-PS-H90D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H	[Φ125 μm] BISM15-PX-H50D-H
1400nm band		[Φ125 μm] SM14-PS-U25D SM14-PS-U40D	[Φ80 μm cladding] RCSM14-PS-U17C			[Φ125 μm] SM14-PS-H90D
1310nm band		[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H	[Φ80 μm] RCSM13-PS-U17C		[Φ80 μm] RCBI13-PX-U17D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H
980nm band	[Φ125 μm] SM98-PS-Y15	[Φ125 μm] SM98-PS-U25D SM98-PS-U40D	[Φ80 μm] RCSM98-PS-U17C			[Φ125 μm] SM98-PS-H90D
850nm band		[Φ125 μm] SM85-PS-U25D SM85-PS-U40D	[Φ80 μm RCHA85-PS-U17C			[Φ125 μm] SM85-PS-H90D
630nm band		[Φ125 μm] SM63-PS-U25D SM63-PS-U40D				[Φ125 μm] SM63-PS-H90D
530nm band		^{[Φ125 μm]} SM53-PS-U40D				[Φ125 μm] SM53-PS-H90D
480nm band		[Φ125 μm] SC48-PS-U25D SC48-PS-U40D				[Φ125 μm] SC48-PS-H90D
0.41µm band		[Φ125 μm] SC40-PS-U25D SC40-PS-U40D				[Φ125 μm] SC40-PS-H90D
RGB band		[Φ125 μm] SC40-PX-U25D-H (RGB) SC40-PX-U40D-H (RGB)				[Φ125 μm] SC40-PX-H90D-H(RGB)
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm (2%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
Coating material	Polyimide	UV curable resin				UV curable resin / Polyester elastomer

Wevelength band
1550nm band	[Φ125 μm] SRSM15-PS-Y15	[Φ125 μm] SM15-PS-U25D SM15-PS-U40D	[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H [Φ80 μm] RCSM15-PS-U17C RCHA15-PS-U17C	[Φ125 μm] BISM15-PX-U25D-H	[Φ125 μm] BIR5-15-PX-U25D [Φ80 μm] RCBI15-PX-U17D	[Φ125 μm] SM15-PS-H90D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H	[Φ125 μm] BISM15-PX-H50D-H
1400nm band		[Φ125 μm] SM14-PS-U25D SM14-PS-U40D	[Φ80 μm cladding] RCSM14-PS-U17C			[Φ125 μm] SM14-PS-H90D
1310nm band		[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H	[Φ80 μm] RCSM13-PS-U17C		[Φ80 μm] RCBI13-PX-U17D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H
980nm band	[Φ125 μm] SM98-PS-Y15	[Φ125 μm] SM98-PS-U25D SM98-PS-U40D	[Φ80 μm] RCSM98-PS-U17C			[Φ125 μm] SM98-PS-H90D
850nm band		[Φ125 μm] SM85-PS-U25D SM85-PS-U40D	[Φ80 μm RCHA85-PS-U17C			[Φ125 μm] SM85-PS-H90D
630nm band		[Φ125 μm] SM63-PS-U25D SM63-PS-U40D				[Φ125 μm] SM63-PS-H90D
530nm band		^{[Φ125 μm]} SM53-PS-U40D				[Φ125 μm] SM53-PS-H90D
480nm band		[Φ125 μm] SC48-PS-U25D SC48-PS-U40D				[Φ125 μm] SC48-PS-H90D
0.41µm band		[Φ125 μm] SC40-PS-U25D SC40-PS-U40D				[Φ125 μm] SC40-PS-H90D
RGB band		[Φ125 μm] SC40-PX-U25D-H (RGB) SC40-PX-U40D-H (RGB)				[Φ125 μm] SC40-PX-H90D-H(RGB)
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm (2%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
Coating material	Polyimide	UV curable resin				UV curable resin / Polyester elastomer

*1% proof test level is standard. 2% proof test level is available, and code ‘-H’ is added at the end of the product name.
(e.g., SM15-PS-U25D-H)

画素数	FIGHシリーズ Nタイプ	FIGHシリーズ Gタイプ	FIGHシリーズ Sタイプ	FIGHシリーズ PIタイプ
画素数	シリコーン樹脂	シリコーン樹脂	シリコーン樹脂	ポリイミド
1,600			FIGH-016-160S
3,000			FIGH-03-200S FIGH-03-215S
6,000		FIGH-06-350G	FIGH-06-280S FIGH-06-300S	FIGH-06-300PI
10,000	FIGH-10-500N		FIGH-10-350S	FIGH-10-350PI FIGH-10-500PI
15,000	FIGH-15-600N
17,000		FIGH-17-600G
30,000	FIGH-30-850N	FIGH-30-800G	FIGH-30-650S	FIGH-30-850PI
35,000				FIGH-35-900PI
40,000		FIGH-40-920G		FIGH-40-900PI
50,000	FIGH-50-1100N
60,000	FIGH-60-1200N
100,000	FIGH-100-1500N

6,000

Coating material	Polymide	UV curable resin				UV curable resin / Polyester elastomer
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm 82%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
1550nm band	[Φ125 μm] SRSM15-PS-Y15	[Φ125 μm] SM15-PS-U25D SM15-PS-U40D	[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H [Φ80 μm] RCSM15-PS-U17C RCHA15-PS-U17C	[Φ125 μm] BISM15-PX-U25D-H	[Φ125 μm] BIR5-15-PX-U25D [Φ80 μm] RCBI15-PX-U17D	[Φ125 μm] SM15-PS-H90D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H	[Φ125 μm] BISM15-PX-H50D-H
1400nm band		[Φ125 μm] SM14-PS-U25D SM14-PS-U40D	[Φ80 μm cladding] RCSM14-PS-U17C			[Φ125 μm] SM14-PS-H90D
1310nm band		[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H	[Φ80 μm] RCSM13-PS-U17C		[Φ80 μm] RCBI13-PX-U17D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H
980nm band	[Φ125 μm] SM98-PS-Y15	[Φ125 μm] SM98-PS-U25D SM98-PS-U40D	[Φ80 μm] RCSM98-PS-U17C			[Φ125 μm] SM98-PS-H90D
850nm band		[Φ125 μm] SM85-PS-U25D SM85-PS-U40D	[Φ80 μm RCHA85-PS-U17C			[Φ125 μm] SM85-PS-H90D
630nm band		[Φ125 μm] SM63-PS-U25D SM63-PS-U40D				[Φ125 μm] SM63-PS-H90D
530nm band		^{[Φ125 μm]} SM53-PS-U40D				[Φ125 μm] SM53-PS-H90D
480nm band		[Φ125 μm] SC48-PS-U25D SC48-PS-U40D				[Φ125 μm] SC48-PS-H90D
0.41µm band		[Φ125 μm] SC40-PS-U25D SC40-PS-U40D				[Φ125 μm] SC40-PS-H90D
RGB band		[Φ125 μm] SC40-PX-U25D-H (RGB) SC40-PX-U40D-H (RGB)				[Φ125 μm] SC40-PX-H90D-H(RGB)
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm (2%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
Coating material	Polyimide	UV curable resin				UV curable resin / Polyester elastomer

Wevelength band
1550nm band	[Φ125 μm] SRSM15-PS-Y15	[Φ125 μm] SM15-PS-U25D SM15-PS-U40D	[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H [Φ80 μm] RCSM15-PS-U17C RCHA15-PS-U17C	[Φ125 μm] BISM15-PX-U25D-H	[Φ125 μm] BIR5-15-PX-U25D [Φ80 μm] RCBI15-PX-U17D	[Φ125 μm] SM15-PS-H90D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H	[Φ125 μm] BISM15-PX-H50D-H
1400nm band		[Φ125 μm] SM14-PS-U25D SM14-PS-U40D	[Φ80 μm cladding] RCSM14-PS-U17C			[Φ125 μm] SM14-PS-H90D
1310nm band		[Φ125 μm] SRSM15-PX-U25D-H SRSM15-PX-U40D-H	[Φ80 μm] RCSM13-PS-U17C		[Φ80 μm] RCBI13-PX-U17D	[Φ125 μm] SRSM15-PX- H50D-H SRSM15-PX- H90D-H
980nm band	[Φ125 μm] SM98-PS-Y15	[Φ125 μm] SM98-PS-U25D SM98-PS-U40D	[Φ80 μm] RCSM98-PS-U17C			[Φ125 μm] SM98-PS-H90D
850nm band		[Φ125 μm] SM85-PS-U25D SM85-PS-U40D	[Φ80 μm RCHA85-PS-U17C			[Φ125 μm] SM85-PS-H90D
630nm band		[Φ125 μm] SM63-PS-U25D SM63-PS-U40D				[Φ125 μm] SM63-PS-H90D
530nm band		^{[Φ125 μm]} SM53-PS-U40D				[Φ125 μm] SM53-PS-H90D
480nm band		[Φ125 μm] SC48-PS-U25D SC48-PS-U40D				[Φ125 μm] SC48-PS-H90D
0.41µm band		[Φ125 μm] SC40-PS-U25D SC40-PS-U40D				[Φ125 μm] SC40-PS-H90D
RGB band		[Φ125 μm] SC40-PX-U25D-H (RGB) SC40-PX-U40D-H (RGB)				[Φ125 μm] SC40-PX-H90D-H(RGB)
Minimum bending radius (proof test level)	R30mm (1%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)	R5mm (2%)	R20mm (2%)	R15mm (2%)	R7.5mm (2%)
Coating material	Polyimide	UV curable resin				UV curable resin / Polyester elastomer

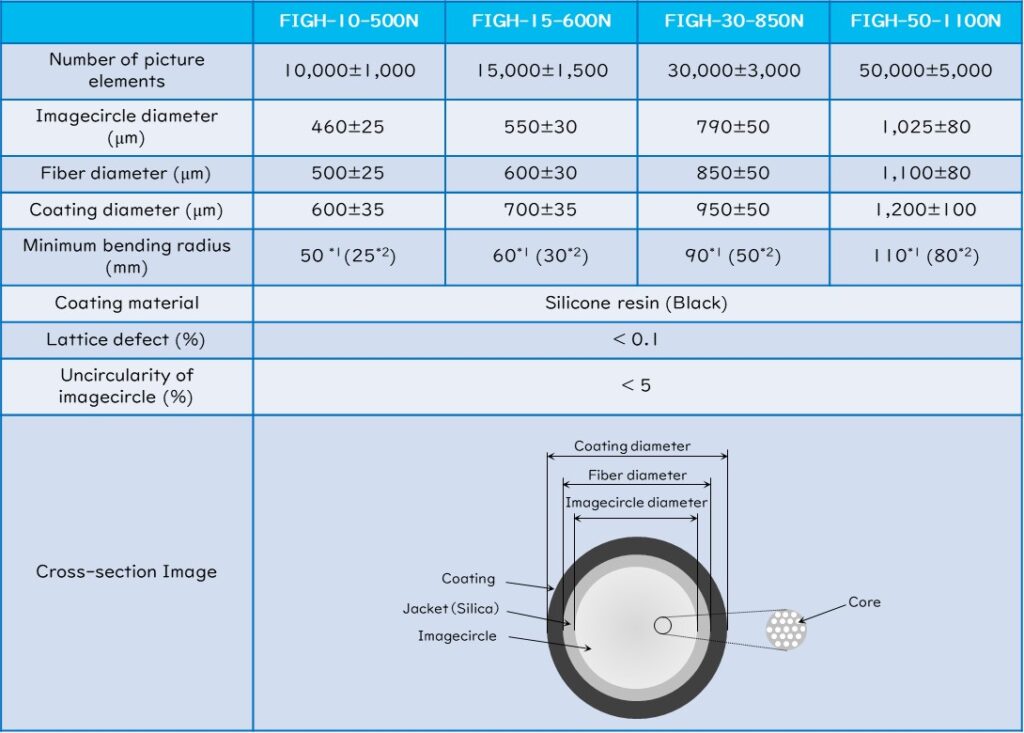

*1：Minimum bending radius in storage.
*2：Recommended bending radius in use for short period of time.
(For your reference only, possible breakages due to static fatigue)
