ITU-T G.657.A1 and G.652.D
(+200 μm Coating Diameter)
FutureGuide™-LWP
plus-200

FutureGuide™-LWP plus-200 streamlines high-density optical cable design, reducing costs in manufacturing, transport, and installation, while seamlessly integrating with existing networks for its compatibility with conventional ITU-T G.652 fibers.

Download Brochure

It is demanded recently to install more fibers in available spaces due to rapid increase of network traffic, especially in access and drop-cable networks.
Fujikura’s innovative optical fiber coating technology achieves FutureGuide™-LWP plus-200 having 200 μm coating diameter and tolerable macro-bending performance exceeding ITU-T G.657.A1 while maintaining Mode Field Diameter (MFD) 9.2 μm at 1310 nm. Low(zero)-water-peak attenuation complying with ITU-T G.652.D of this fiber can support full-band transmission (available in O, E, S, C and L – bands).
FutureGuide™-LWP plus-200 helps not only designing high-density (e.g., higher fiber count and smaller diameter) optical fiber cables but also saving costs of manufacturing, transporting and installing cables. Furthermore, its compatible MFD with conventional ITU-T G.652 fibers would realize deployment of new cables into existing networks without any troubles.
It is expected that this fiber can be a solution for the demand of increasing fiber count in available spaces.

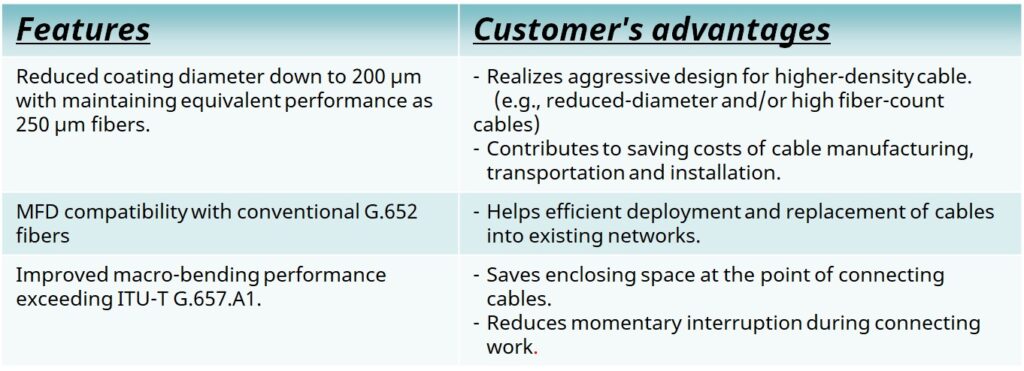

Features

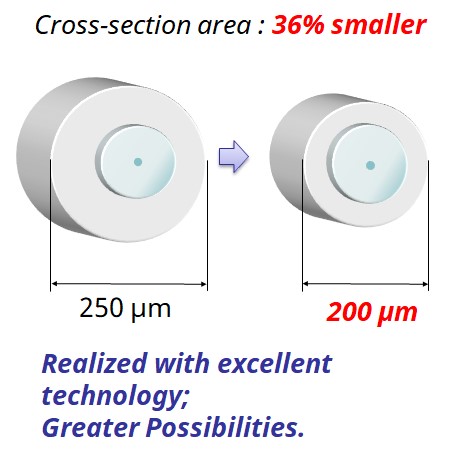

Reduced coating diameter down to 200 μm with maintaining equivalent performance as 250 μm fibers.

MFD compatibility with conventional G.652 fibers

Improved macro-bending performance exceeding ITU-T G.657.A1.

Customer’s advantages

-Realizes aggressive design for higher-density cable.
 (e.g., reduced-diameter and/or high fiber-count cables)
-Contributes to saving costs of cable manufacturing,
 transportation and installation.

-Helps efficient deployment and replacement of cables into existing networks.

-Saves enclosing space at the point of connecting cables.
-Reduces momentary interruption during connecting work.

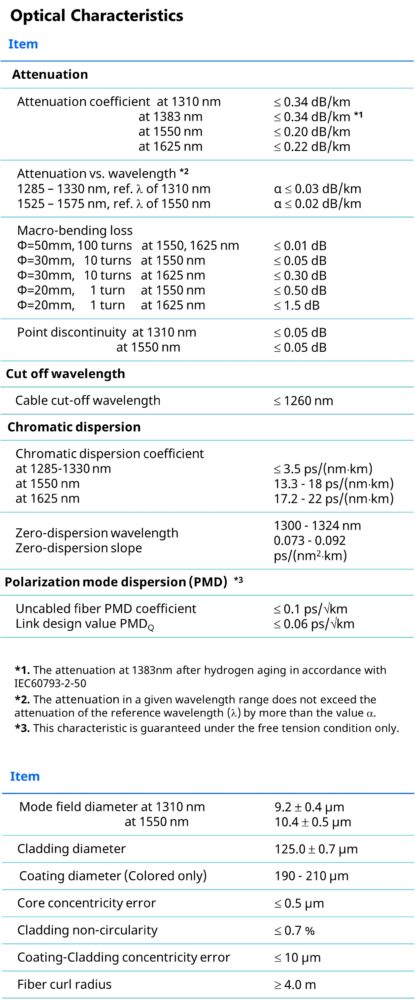

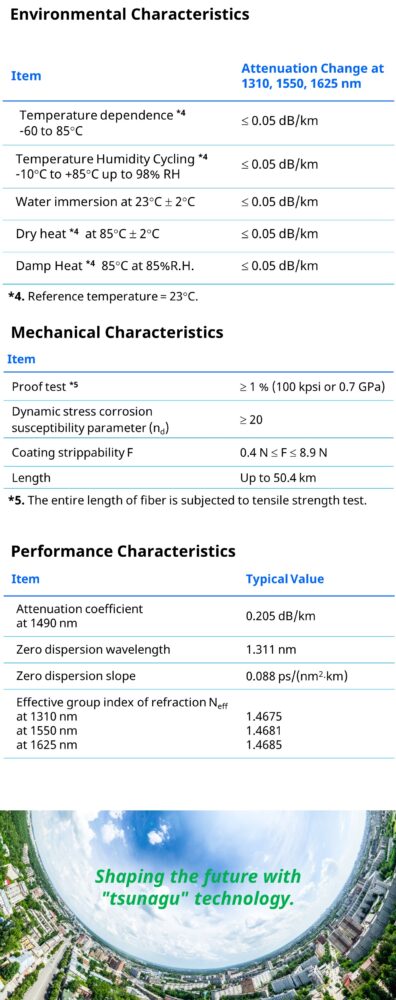

Product Characteristics

* This document is published for your reference purpose only. The specifications for commercial purpose will be issued upon agreement with customers.
