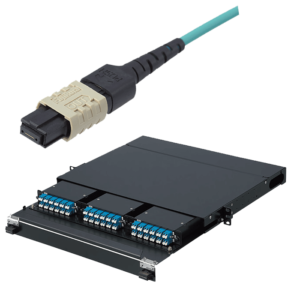

MDC/MMC Patch Panel

• 432 MDC/MMC connectors (864/6,912 fibers) within 2 RUs.

MDC Connector Solutions

• Duplex optical connector with proven 1.25mm ferrule technology.
• 3x fiber cabling density over duplex LC connectors.
• DirectConec™ push-pull boot.
• Simple polarity reversal with no exposed fibers.
• Meets IEC Attenuation Grade B random mating.

MMC Connector Solutions

• Multi-fiber optical connector with proven MT-16 mechanical and fiber alignment structure.
• Multi-fiber optical connector with proven MT-16 mechanical and fiber alignment structure.
• DirectConec™ push-pull boot.
• Compatible with standard 250 micron OD and pitch optical fibers.
• Compatible with standard 250 micron OD and pitch optical fibers.

MDC/MMC Cleaner

• Proven and reliable push technology pioneered by One-Click™ brand cleaners to allow swift and efficient cleaning of MDC dual ferrules/TMT ferrule with one actuation.

MDC Connector

• Duplex optical connector with proven 1.25mm ferrule technology.
• 3x fiber cabling density over duplex LC connectors.
• DirectConec™ push-pull boot.
• Simple polarity reversal with no exposed fibers.
• Meets IEC Attenuation Grade B random mating.

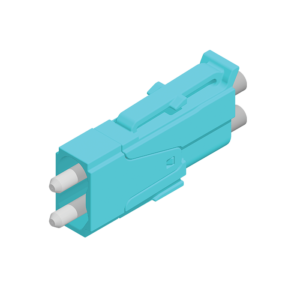

MDC Adapters

• 2-port, 3-port and 4-port adapters connecting MDC to MDC/MDC Jr. connectors.
• 2-port and 3-port adapters designed to fit through the same panel cutout defined for duplex LC adapters.

MDC Cleaner

• 2-port, 3-port and 4-port adapters connecting MDC to MDC/MDC Jr. connectors.
• 2-port and 3-port adapters designed to fit through the same panel cutout defined for duplex LC adapters.

MDC Jr. Connector

• Optimized for breakouts and on board optic architectures.
• Minimizing valuable space consumption behind the panel.

MMC Connector

• Multi-fiber optical connector with proven MT-16 mechanical and fiber alignment structure.
• 3x cabling port density over the MPO format.
• DirectConec™ push-pull boot.
• Compatible with standard 250 micron OD and pitch optical fibers.
• Meets IEC Attenuation Grade B random mating.

MMC Adapters

• Optimized for transceivers, on-board optics and module applications.
• Smaller footprint of the MMC Jr. connector maintains a robust connection while minimizing valuable space consumption on the boards or behind module/panel walls.

MMC Jr. and Adapter
Receptacle

• Optimized for transceivers, on-board optics and module applications.
• Smaller footprint of the MMC Jr. connector maintains a robust connection while minimizing valuable space consumption on the boards or behind module/panel walls.

MMC Cleaner

• Proven and reliable push technology pioneered by One-Click™ brand cleaners to allow swift and efficient cleaning of TMT ferrule with one actuation.

TMT Ferrule Technology

• Proven alignment structure of MT-16.
• 16 fibers at 250 micron pitch.
• Compatible with 250, 200, and 165 micron fibers.
• Compatible with 250, 200, and 165 micron fibers.
• Ideal for on-board fiber management, as well as transceivers and hardened connector embodiments.

Single-fiber
Optical Connector

Simplex Patch Cord

Duplex Patch Cord

MPO Cabling System

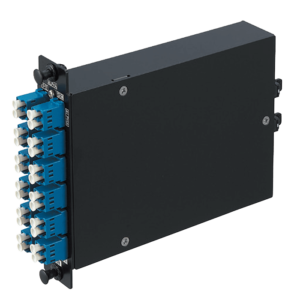

Optical Patch Panel and Connector Module

MPO Connector

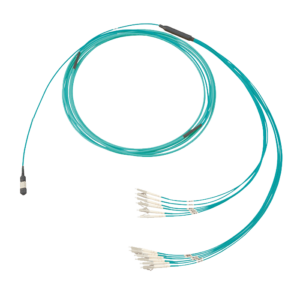

Trunk Cable

Patch Cord with
Fiber-optic Connector for MPO Cabling System

FAST™ Connector Series

• Easy installation with no e-power needed in field
• No epoxy, No polishing
• Low insertion loss
• FAST have the design to clamp 250um/900um coated fiber, 2mm/3mm cord and square shaped outdoor/indoor cable.
• FAST demonstrates the performance combining both SC/LC/ST connectors and Mechanical splices.

FAST™ Plus Connector

• Easy installation with no e-power needed in field
• No epoxy, No polishing
• Hybrid Matching Gel with high connection reliability
• Maintenance Free Cleaver is attached, enabling easy and high quality fiber cleaving
• Universal design which supports 0.25mm fiber, 0.9mm fiber, 2mm cord and 3mm cord as 1 product

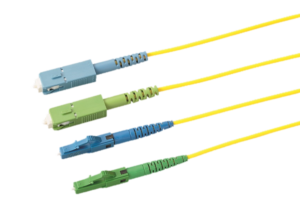

FuseConnect™ Series

• No epoxy, No polishing
• Easy termination by fusion splicer
• FuseConnect have the design to clamp 900um coated fiber, 2mm/3mm cord and Square shaped drop/indoor cable

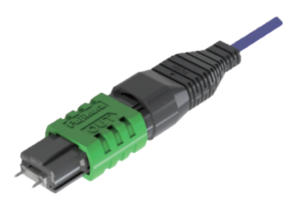

FuseConnect™ for MPO

• Field installable MPO connector using fusion splicer
• No epoxy, No polishing
• Heat shrink sleeve splice protector
• Included boots for 3mm round cord and flat ribbon fiber in each pack
• Ribbonizing tool (RT-02) for single fiber is available as an option

Mechanical Splice Element

One-Click™ Cleaner
MPO ESD

• The cleaner body is made from highly conductive resin, allowing for rapid dissipation of static electricity.
• It effectively suppresses static electricity generated on the ferrule end-face during cleaning, reducing the risk of dust attraction.
• Suitable for use in ESD(electrostatic discharge) protected area and compliant with IEC 61340-5-1^(*1) standards.

One-Click™ Cleaner PRO

• Reduces operation time by half, reduces labor cost
• Designed with ergonomic intuitive features
• Eliminates the need for constant guide cap switching
• Especially suited for Datacenter, factories, and FTTH

One-Click™ Cleaner

• Removing oil, dust, and dirt without damaging delicate fiber end-faces.
• Both dry and wet cleaning (add cleaning fluid).
• Clean connectors in tight spaces. Field or laboratory use.

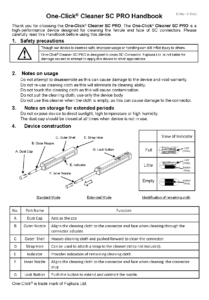

Manuals for One-Click™

Optical Distribution Frame
CDF Series

Optical Distribution Frame
FDF1000 Series

Fiber Optic
Termination Box
for 19-inch Rack Mounting
(Sliding Enclosure)
FTB-235 Series

Fiber Optic
Termination Box
for 19-inch Rack Mounting
(Fixed Enclosure)
FTB-223A Series

Optical Termination Box
(Outdoor use)
FPB-202

Optical Termination Box (outdoor use)
FSPH Series

• Rainproof, mountable on outdoor walls

Optical Termination Box
FDB-FR Series

Optical Termination Box
FDB-PR Series

• Wall mount
• Indoor

Optical Termination Box
(Indoor use)
FTB-601 Series

• Wall mount
• Indoor

Optical Termination Box (Indoor wall mount type) FDB Series

• Indoor
• Wall mount

Small Rosette
FPB-301 Series

Optical Splitter Module
3U Module Type
FSC110 Series

Optical Splitter Module
Cassette Type with 2mm Cordage
FSC116 Series

Compact Splitter Module
FSC114 Series

Optical Closures for Aerial
FSCO-V3 Series

Optical Closures for Aerial
Drop Connecting Case

Optical Closures for Underground
FSCO-HHS Series

Optical Closures for Underground
FSCO-FB/FB3 Series

Optical Closures for Underground
FSCO-TN Series

Pump LD Wavelength Stabilizer

• Compact Size(Same diameter as fiber itself)
• High reliability (Comply with GR-1209/1221 requirement）
• Polarization Maintaining (Optional)

Optical Fiber Coupler

• High reliability
• Low loss
• Low PDL
• Coupling ratio : 2%～50% (Available to adjust)

Polarization Beam Combiner

• Low loss
• High reliability
