Optical Splitter Module
3U Module Type
FSC110 Series
Optical Splitter Module 3U Module Type FSC110 Series
■ Suitable for mounting in a 19-inch rack (EIA standard).
(Consult for mounting in a JIS 19-inch rack.)
■ The layout is designed for high-density and easy installation.
■ Various combinations/types of modules are available for vaious application, allowing for efficient mounting.
■FSC110 Series
1×16, 1×8, 1×4
Optical Splitter Module
For FSC110
Splitter Module Chassis

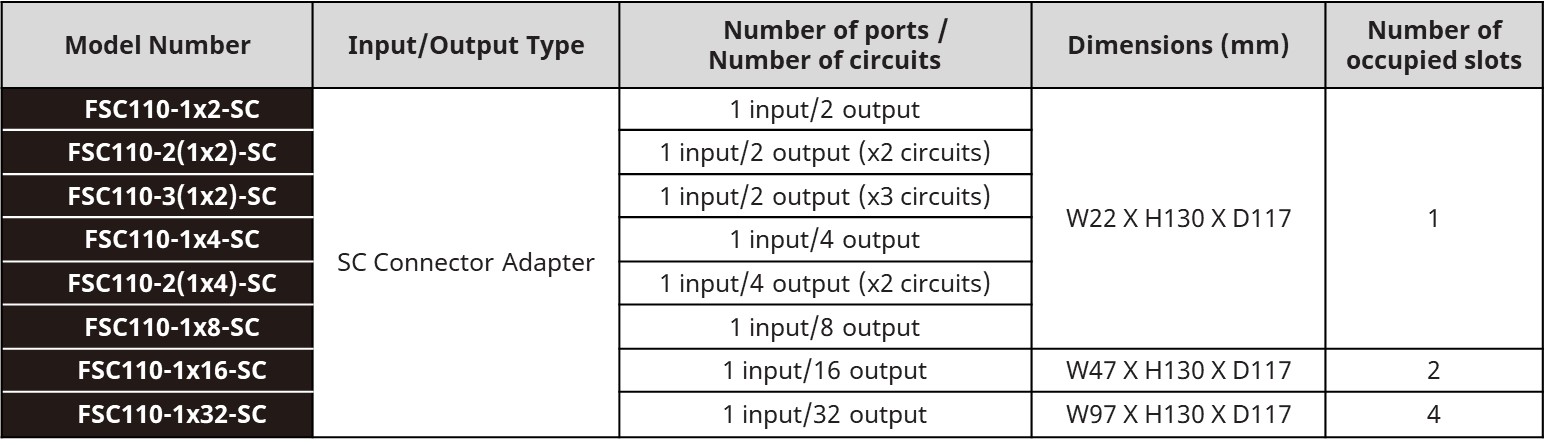

■FSC110 Series Module Lineup

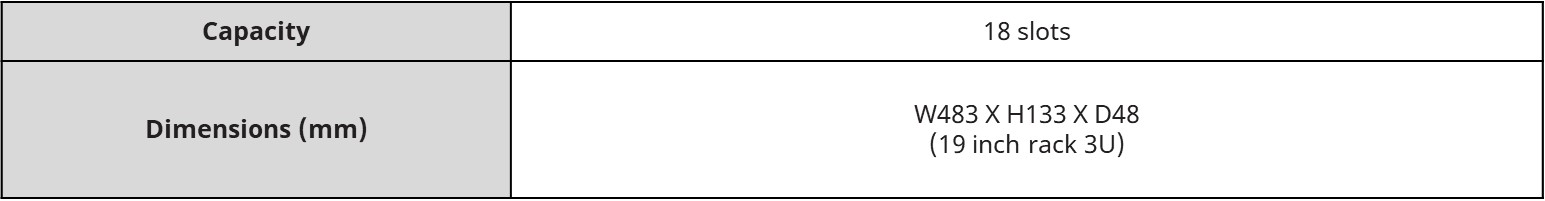

■Chassis for FSC110

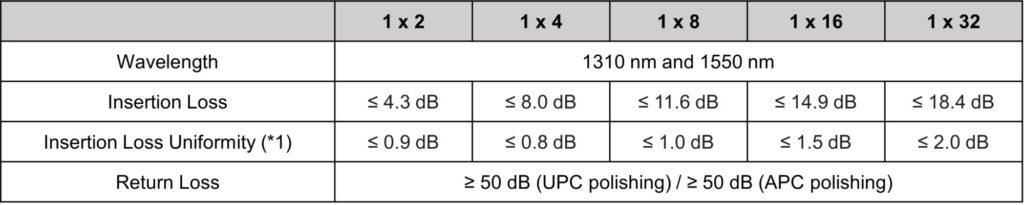

Splitter Module Specifications
(*1) Loss uniformity in the table does not include input/output connector loss.
(*1) Loss uniformity in the table does not include input/output connector loss.
