Trunk Cable

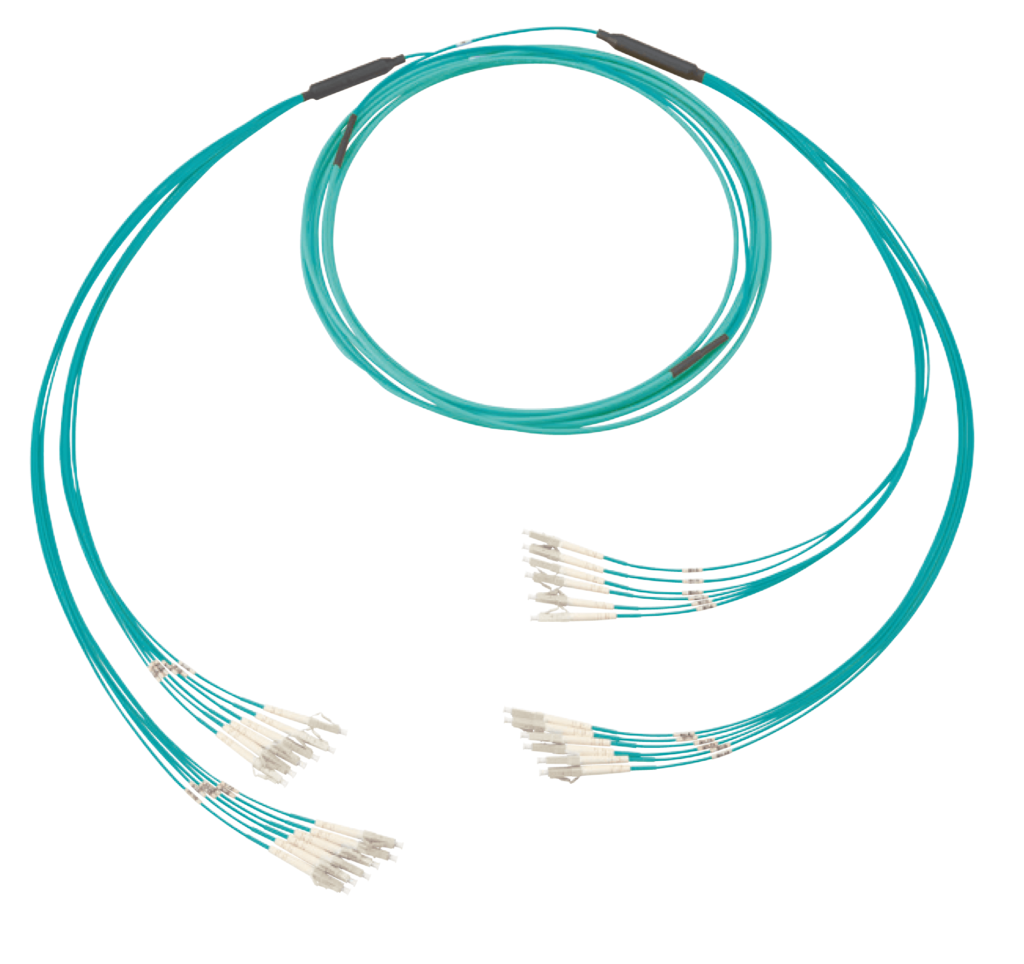

■Efficient Trunk Cable Solutions
Data Center Connectivity: Trunk cables are ideal for connecting racks and roomswithin data centers. Pre-Installed Connectors: Delivered with MPO and simplex connectors installed for ready-to-use convenience.
Flexible Packaging Options: Availablewith tow-ends and reel packaging to suitvarious installation environments.

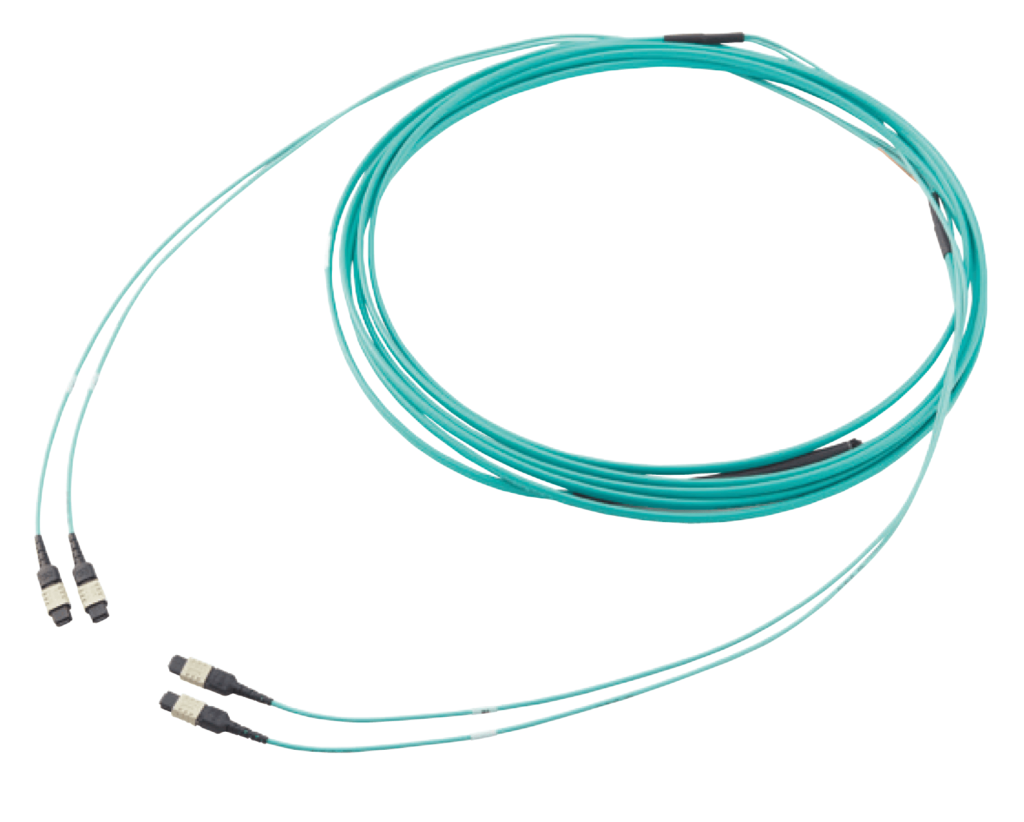

■ MPO-MPO

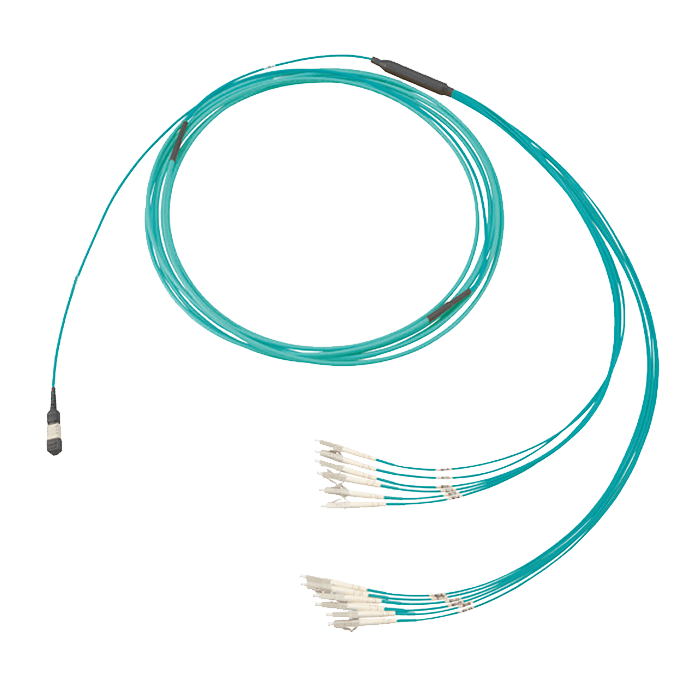

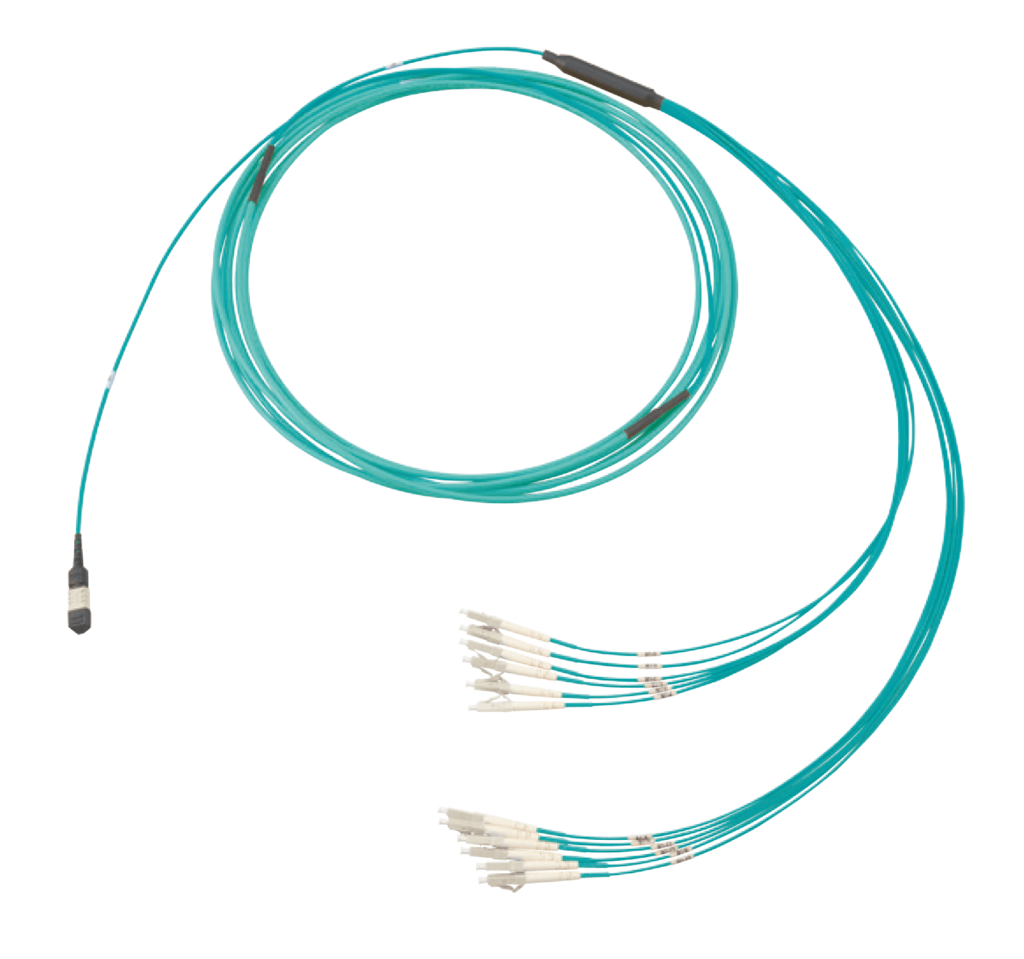

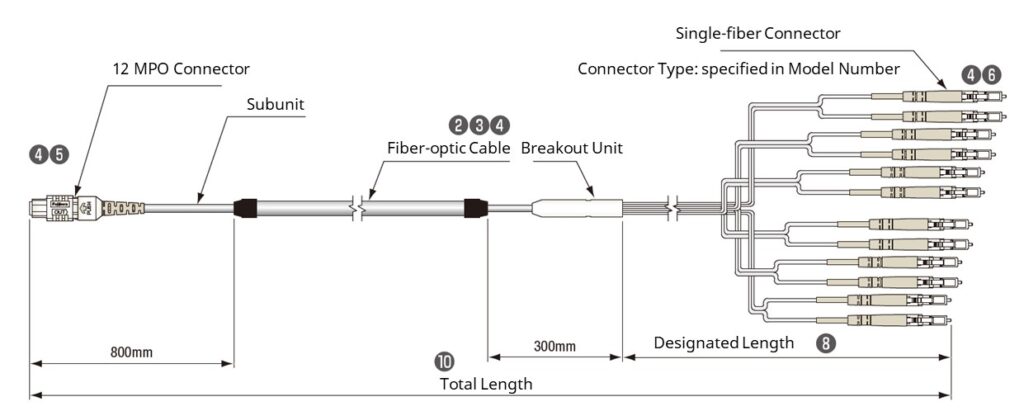

■ MPO – Single-fiber Connector (Fan-out)

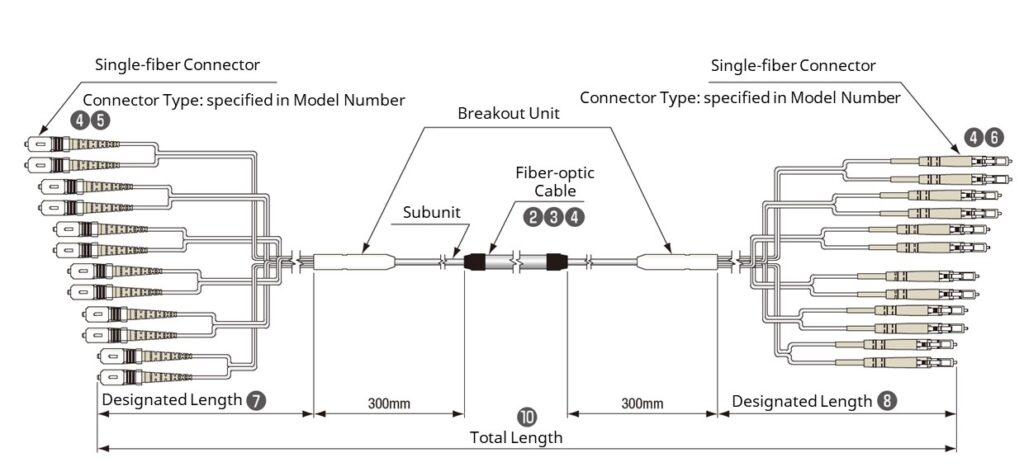

■ Single-fiber Connector (Fan-out) – Single-fiber Connector (Fan-out)
■ Stock: The following cables are always in stock and can be assembled with connectors and ship in short lead time.
12 fibers …… OS2 (SM), OM3, OM4
24 fibers …… OS2 (SM), OM3, OM4
48 fibers …… OS2 (SM), OM3, OM4
FJ-A-KLADMPFMPF-AABM040C
Type A, Trunk Cable, Plenum, OM3-BIF, Aqua, 24 fibers, MPO (Female) -MPO (Female), Pulling Eye (One End), 40 m, Bundled
FJ-A-KSYFSSCSLC-CCAM060R
Type A, Trunk Cable, Plenum, OS2, Yellow, 48 fibers, Simplex SC/UPC-Simplex LC/UPC, Single-fiber Fan-out Length 1000 mm-1000 mm, No Pulling Eye, 60 m, Reeled

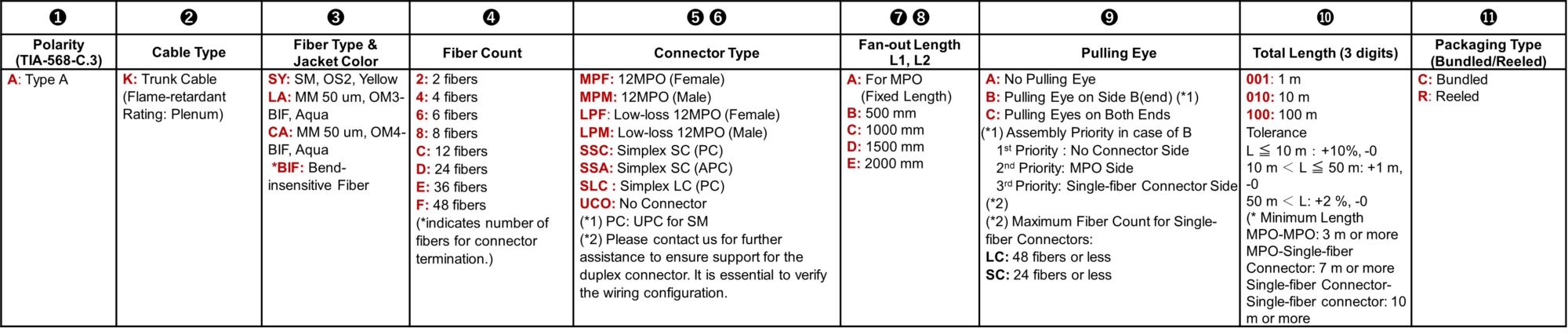

Possible Trunk Cable Details, including Ordering Options, etc.

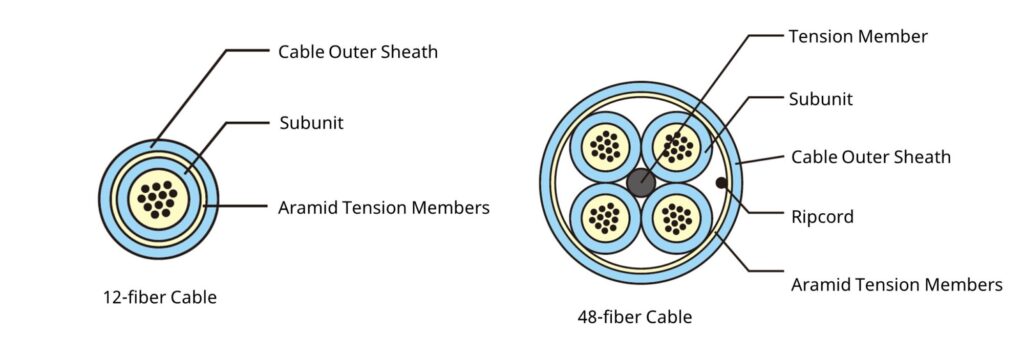

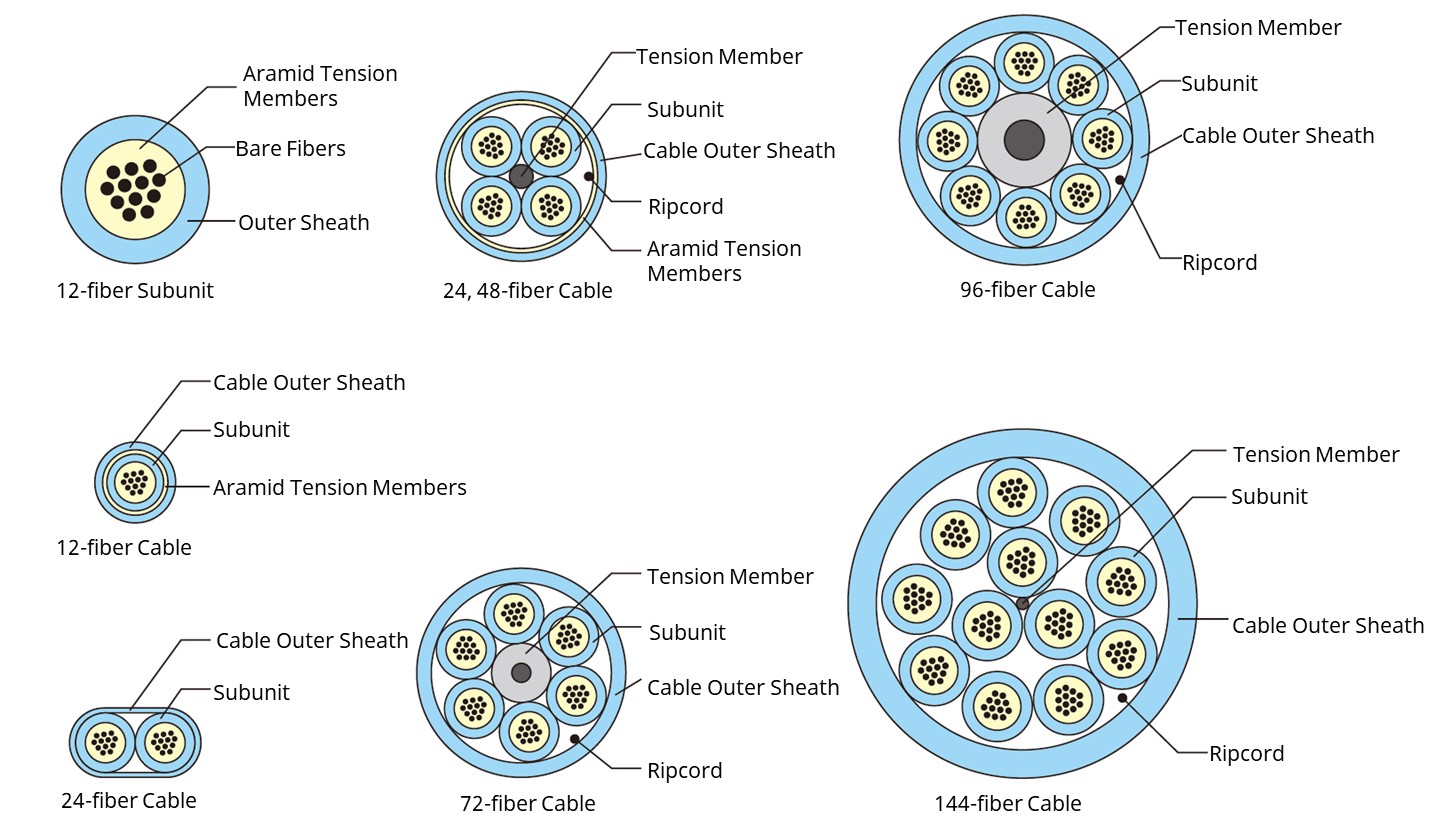

■ Trunk Cable Structure

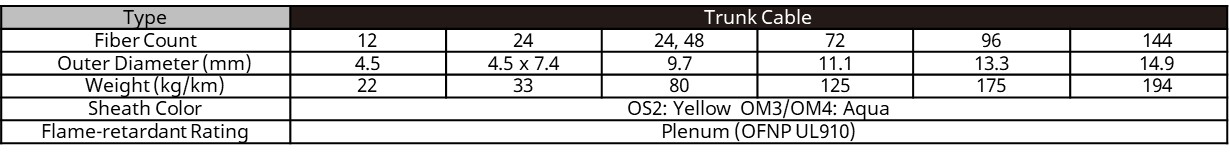

■ Trunk Cable Specifications
This design conserves space when cabling with multiple fibers featuring a smaller diameter compared to the exsisting cable with a set of cords.
It accommodates 12 fibers within a 3 mm subunit (cord), making it an ideal cable for MPO connector termination.
* The 24-fiber cable (4.5 x 7.4 mm) will be switched to the round cable (outer diameter 9.7 mm) as soon as it is finished in stock.
■ Reel
Compact and Eco-Friendly Reel Packaging
Durable Construction: The reel features a wooden board and paper tube body, assembled with bolts and nuts for easy disassembly and disposal on-site.
Compact Design: Available in flange diameters of 44 cm and 60 cm, making it easy to transport into server rooms.
Eco-Friendly Materials: The materials are resistant to wood waste, ensuring suitability for use within the server room environment.
■ Pulling Eye
Adaptable Pulling Eye Design
Variable Outer Diameter: The outer diameter of the pulling eye ranges from 30 to 50 mm, tailored to the fiber count and the number of connectors.
Customizable Length: The length of the pulling eye is adjustable based on the fan-out length and the quantity of connectors, ensuring a precise fit for your specific installation needs.
■ Polarity
The only type A wiring is described here. Please contact us for type B wiring, duplex SC or duplex LC connector termination.
