Optical Distribution Frame<br>CDF Series

Optical Components

Optical Distribution Frame
CDF Series

Download Brochure

CDF Series

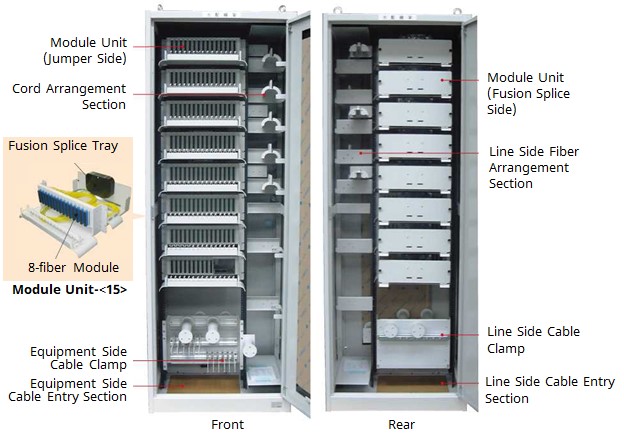

■ Front and rear access optical distribution frame based on the 19-inch rack (EIA standard).
■ Achieve the desired capacity by mounting a combination of module units.
■ Optical distribution frame with a door.
■ It is also possible to mount splitter modules for 19-inch rack installation.
■ Please contact us for other variations in fiber count and specifications.

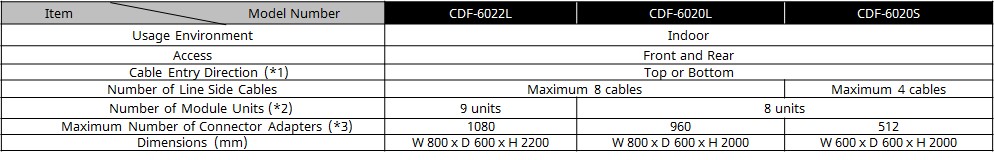

(*1) Please specify at the time of purchase.

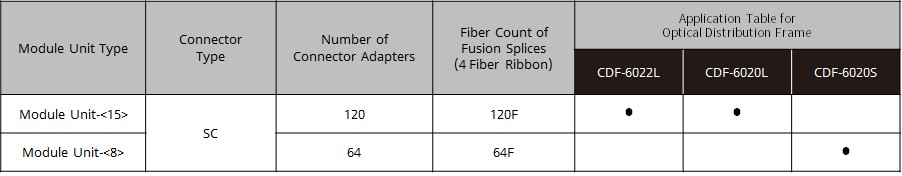

(*2) Possible to make a selection from the application table above.
(*3) The number of connector adapters varies depending on the module unit to be installed.
