FTB-601 Series
Optical termination box(Apartment indoor use)
FTB-601 Series
■ Drop cables can be installed as well as round cables.
■ Output cables can be routed to the right as well as up and down directions.

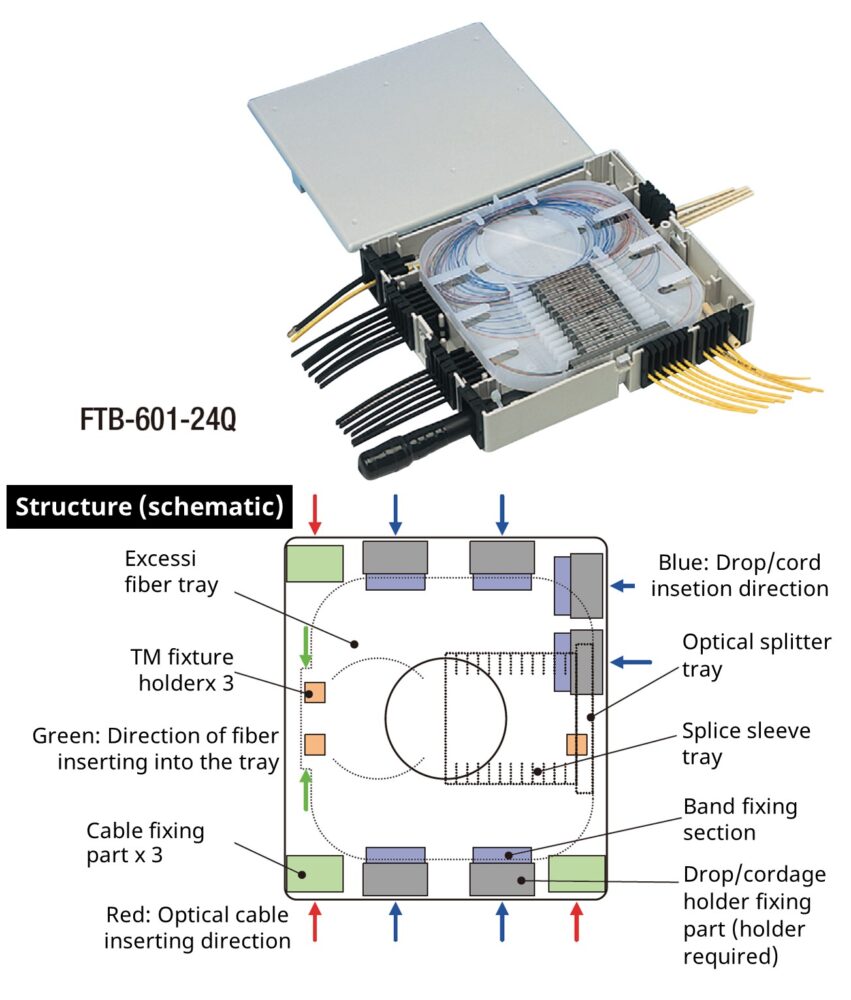

■ Equipped with an optical splitter storage space
■ The pass through of fibers for mid span branching(slot cutting) is available.
*1 Store the splitter in the splice tray if its size is compatible with splice sleeve.
| Type No | FTB-601-12C | FTB-601-24Q | |
| Cable Installation Direction | Top, bottom and right | ||

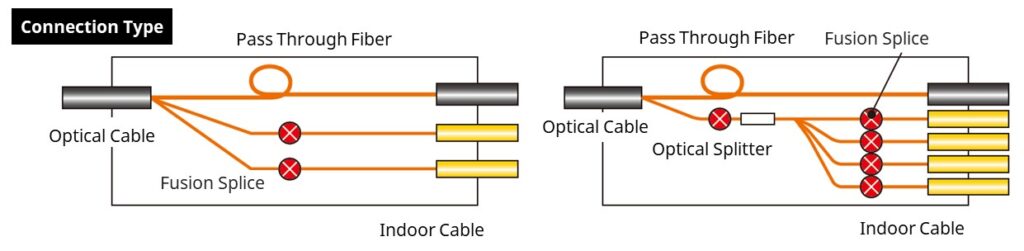

| Connection Type | Fusion splice | ||
| Fiber Capacity | Single Fiber (0.25 mm) | 24 fibers | |
| Single Fiber (0.9 mm) | 8 fibers | ||
| 4 Fiber Ribbon | 40 fibers | ||
| Path Through Fiber Capacity | – | 160 fibers (*1) | |
| Splitter Storage Space | 1 pc for PLC | ||
| Dimensions (mm) | W160 x H180 x D38 | ||
| Mounting Hole Position (mm) | W90 x H90, 3holes(Φ6) | ||
| Applicable Cable | Input | Round cable Φ16mm or less(1pc), 2mm width flat outdoor or indoor cable(3pcs) | |
| Output | 2mm width flat outdoor or indoor cable(12pcs), 2mm cord(6pcs) | Round cable Φ16mm or less(2pcs), 2mm width flat outdoor or indoor cable(24pcs), 2mm cord(12pcs) | |
| Weight(kg) | Approx. 0.3 | ||
(*1) One side and both side branch of fiber are available.
