Drop Connecting Case

■ Designed to facilitate connections between drop cables.

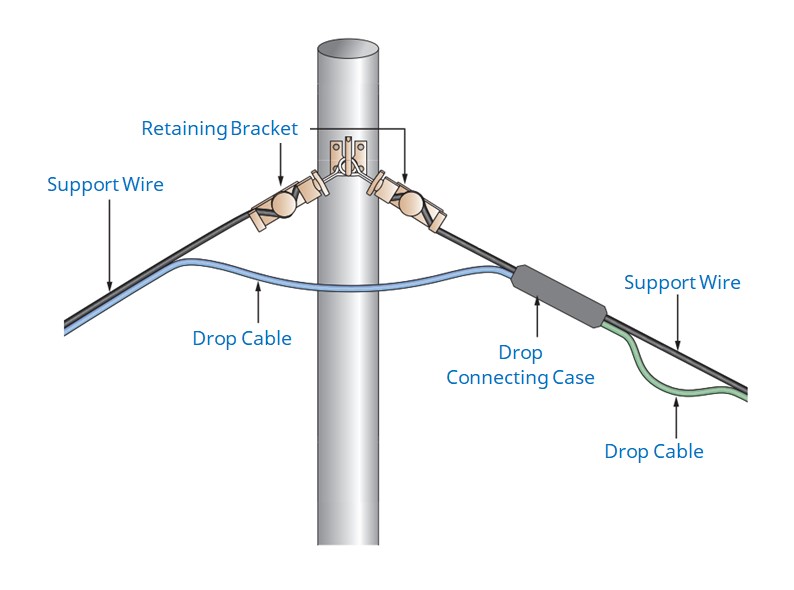

■ Applications include restoration of the disconnected drop cable and relocation to other utility poles.


Applicable Cable TypeFigure-8 drop cable,
Flat type drop/indoor cable
Cable Capacity /
Applicable Cable Dia.
Figure-8 Drop Cable1 set (2 pcs) / Approx. 2×5.3 mm
Flat Type Outdoor/Indoor Cable1 set (2 pcs) / Approx. 2×1.6mm or 3.1×2 mm

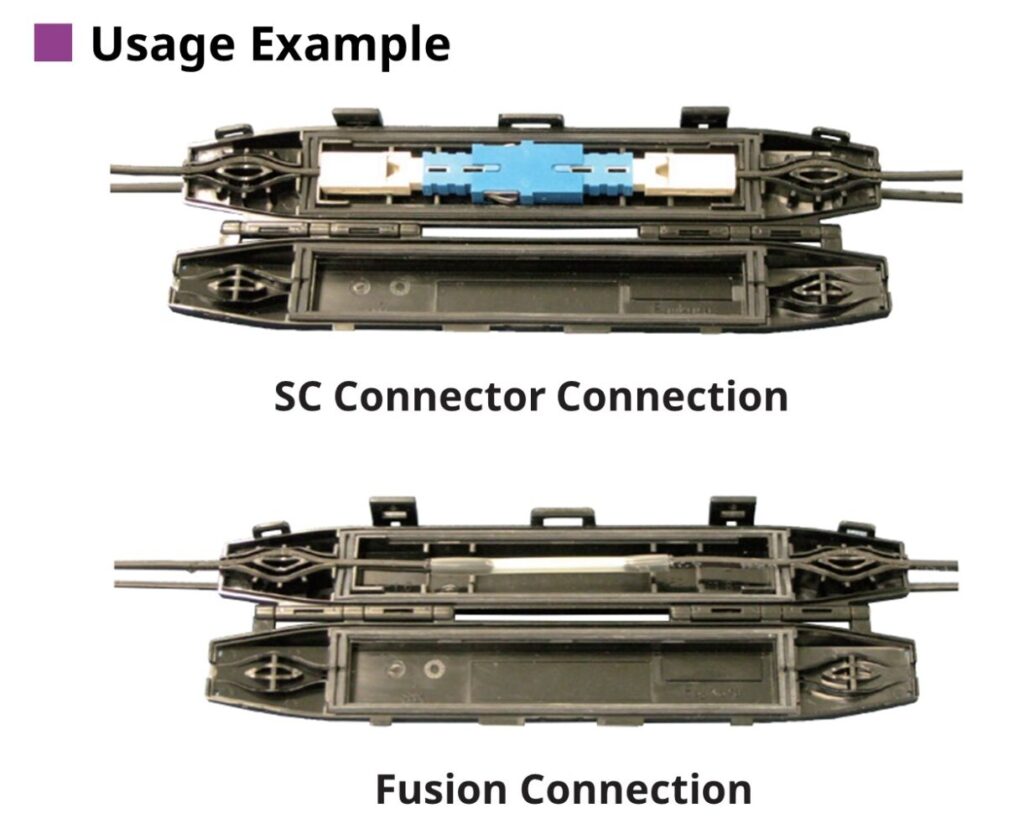

Applicable Connection TypeFusion splicing, SC connector(*1) or Mechanical splice
IP RatingIPX4 (*2)
Dimension (in approx.)W24 x H33 x L176 mm
Weight (in approx.)0.1 kg

(*1) SC adapter is applied unflanged type, (*2) JIS C 0920
