One-Click™ Cleaner
The One-Click™ Cleaner is a convenient and effective tool for cleaning fiber optic connectors. It offers quick and reliable cleaning with a simple one-click operation. The cleaner is available for various connector types and provides repeatable cleaning performance.
One-Click™ Cleaner
● One-Click™ Cleaner is specialized for optical connectors. It allows for the removal of oils and dust adhering to the fiber end faces.
● It prevents issues such as increased optical connector loss and damage to the ferrule end faces

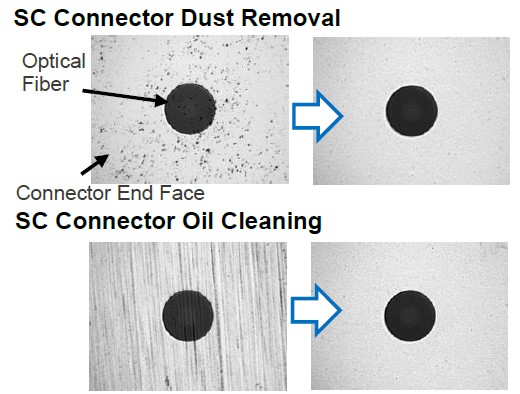

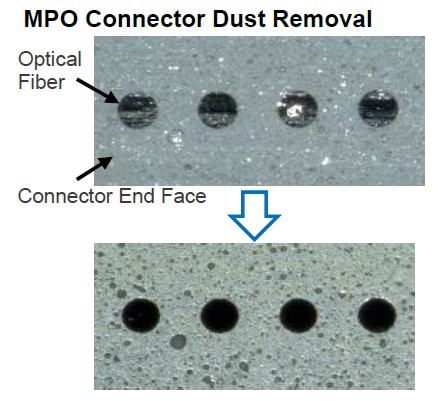

Connector Cleaning Image
High-quality connector connections rely on meticulous cleaning of the connector end faces.
● Even invisible dust and dirt can affect communication performance.
● Contaminants on the connector end faces may risk damaging other connectors during mating.

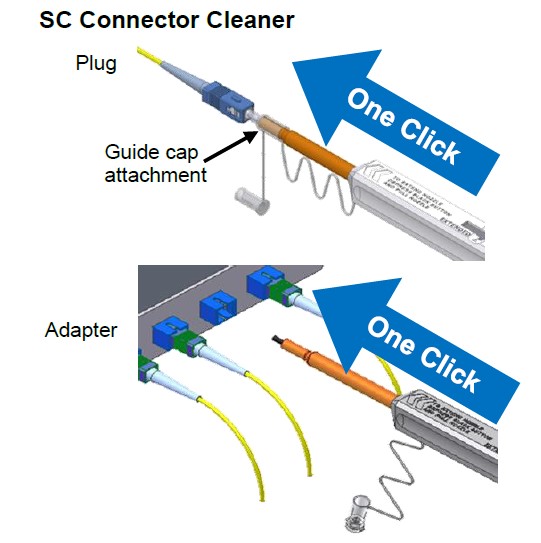

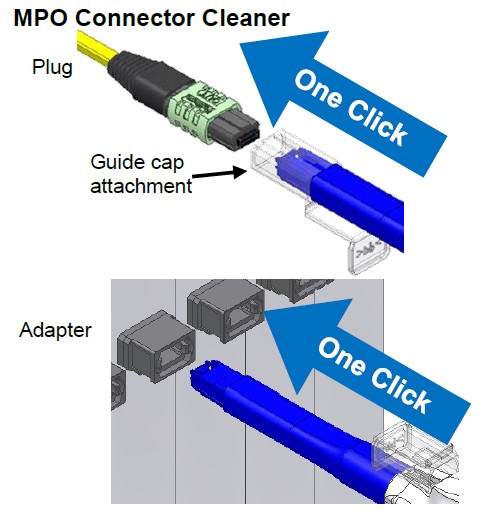

How to use
● Both the plug and adapter can be cleaned by replacing the included guide cap.
(PRO series does not require guide cap replacement)
● Applicable for PC and APC polishing type connector. (The APC type depends on connector type)

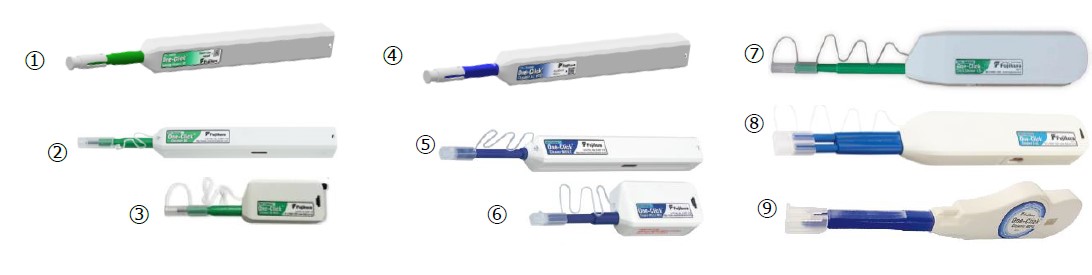

Product lineup
We have a wide range of products to support any connection.
| One-Click™ Model name | Target connectors etc. | Cleaning times | Main use / market(*4) | |||
| Telecom | Data center | Factory | Machine | |||
| SCPRO-CLK-A① | SC(*2), PRO | 775 | ✓ | ✓ | ✓ | ✓ |
| SC-CLK-A② | SC/FC/ST(*2), standard | 500 | ✓ | ✓ | ||
| SC-MINI-CLK-A③ | SC/FC/ST(*2), mini | ✓ | ✓ | |||
| M250-E-CLK-A⑦ | SC/FC/ST(*2), cleaning area expansion | ✓ | ||||
| LCPRO-CLK-A④ | LC, PRO | 775 | ✓ | ✓ | ✓ | ✓ |
| MU/LC-CLK-C⑤ | MU/LC, standard | 500 | ✓ | ✓ | ✓ | ✓ |
| MU/LC-MINI-CLK-A⑥ | MU/LC, Mini | ✓ | ✓ | |||
| DLC-CLK-A⑧ | LC Duplex | ✓ | ✓ | |||
| CS/MDC-CLK-A | CS™(*3) / MDC | ✓ | ||||
| SN-CLK-A | SN™(*3) | ✓ | ||||
| MTRJ-CLK-A | MT-RJ | ✓ | ||||
| MPO-CLK-D⑨ | MPO | ✓ | ||||
| MPO16-CLK-A | MPO-16 | ✓ | ✓ | |||
| MPOESD-CLK-A | MPO, Anti electrostatic discharge | ✓ | ✓ | |||
| MMC-CLK-A | MMC-24 | ✓ | ✓ | |||
| MMC16-CLK-A | MMC-16 | ✓ | ||||
| ODC-CLK-A | Φ 1.25mm Multi /MU/LC | ✓ | ||||
| M20-CLK-A | Φ 2.0 mm multi (SMPTE304M, etc.) | ✓ | ||||
| HOC-CLK-A | SC/AFL TRIDENT™/AFL TITAN RTD™(*5) | ✓ | ||||
(*2) Including SC2, FA, and FAS connectors.
(*3) A trademark of Senko Advanced Components, Inc.
(*4) This is just an example and can be used in places that are not checked.
(*5) AFL TRIDENT™ and AFL TITAN RTD™ are trademarks of AFL Telecommunications LLC.
* One-Click™ is a trademark of Fujikura Ltd.
