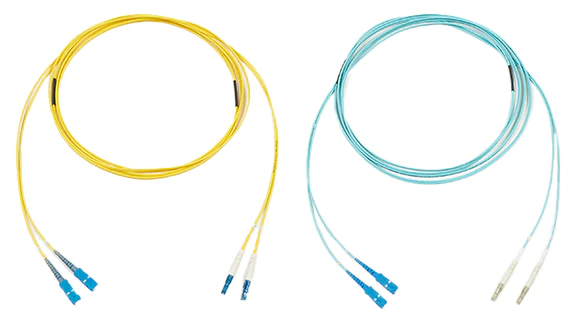

Duplex Patch Cord
Applications
- Wiring in the optical equipment for inside plant
- Wiring in the Optical Termination Enclosure and Optical Distribution Frame
Features
- 01
Compatible with various connectors
Compatible with SC, LC, MU, and FC connectors
- 02
Supports SM and MM
Compatible with single-mode fiber and multi-mode fiber
- 03
For Indoor Equipment Cabling Applications
Indoor-use ribbon cable with optical connectors
Customer Benefits
Enables easy construction of high-quality, stable optical communication environments, improving operational reliability and cost efficiency.

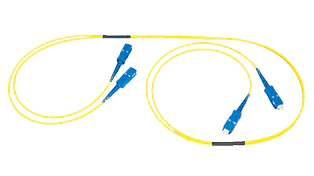

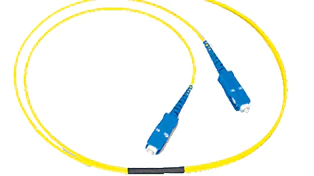

Lineup
Product Catalog
You can find the product specifications here. Please download them using the button below.
Selection Process

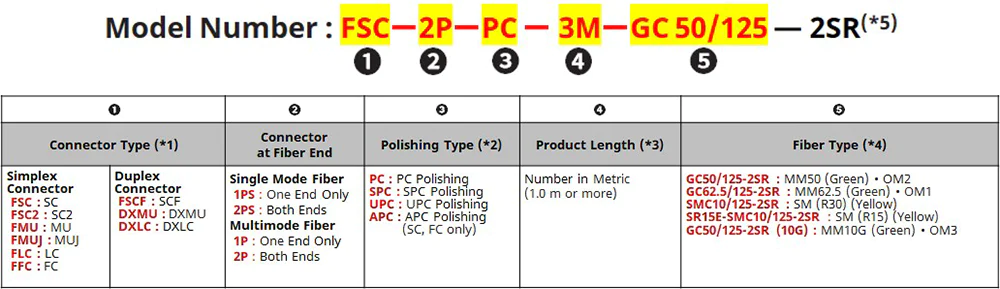

Ordering Information

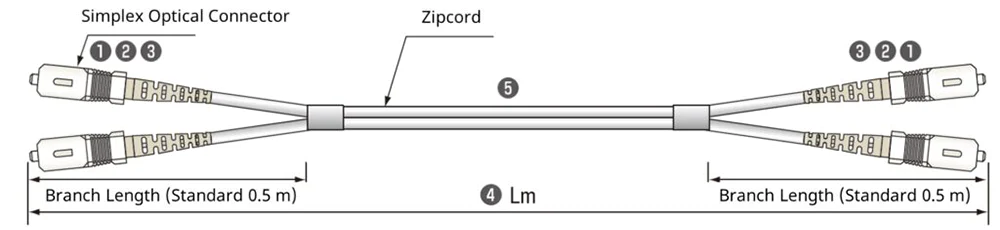

Both End with Connectors
(*1): When different connectors are attached to both ends, use FFC/FSC notation.
(*2): When polishing with different ends, indicate PC/SPC notation. Multimode fiber is PC polishing only.
(*3): Product length tolerances are shown below:
| Product Length | Tolerance |
|---|---|
| 1 m < L ≤ 10 m | +10%, -0 |
| 10 m < L ≤ 50 m | +1 m, -0 |
| 50 m < L | +2%, -0 |
(*4): Color in () indicates coating color.
(*5): When duplex connectors (SCF, DXLC, DXMU) are installed on both ends, polarity specification (1X, -ST) is required. Standard Branch Length is 0.5 m. (Please contact us for short items.)
