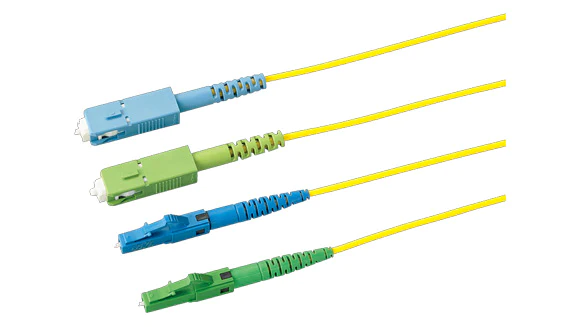

FuseConnect™ Series
Applications
- Field termination of optical connector in Data center and central office
- Low return loss connection
Features
- 01
Low-Loss, Low-Reflection Connection
As a fusion-type connector, it enables low-loss, low-reflection connections comparable to factory-assembled connectorized products.
- 02

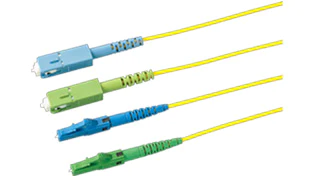

Applicable to Cord/Cable
The lineup includes varieties compatible with 0.9 mm fiber wires and optical cords, making it applicable to diverse structures.
- 03

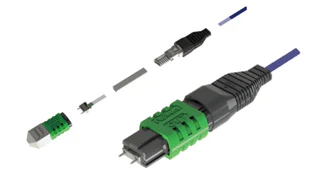

Multi-Fiber MPO Connectivity
As a fusion-spliced type, MPO products are also available in the lineup, enabling use for multi-fiber connections.
Customer Benefits

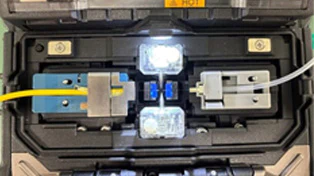

Field fusion splicing for connector assembly achieves the high construction quality required in data centers. On-site termination also reduces excess cable length and facilitates repairs in case of connector failure.
Product Catalog
You can find the product specifications here. Please download them using the button below.
Selection Process
Ordering Information / Product Image (After assembly)
1) 0.9 mm fiber
| Fiber | Polishing | SC | LC |
|---|---|---|---|

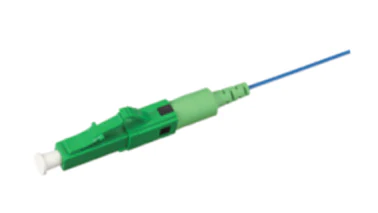

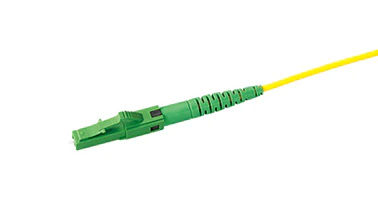

| SM | UPC | SC-SF-SM-09 | LC-SF-SM-09 (*A) |
| APC | SC-SF-APC-09 | LC-SF-APC-09 (*B) | |
| MM (OM1) | PC | SC-SF-GI6-09 | LC-SF-GI6-09 |

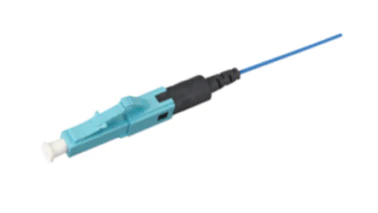

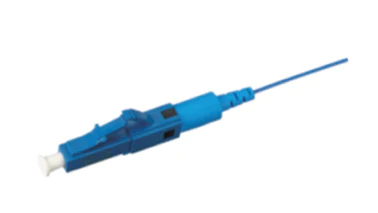

| MM (OM4) | PC | SC-SF-OM4-09 | LC-SF-OM4-09 (*C) |
2) 2 mm cord
| Fiber | Polishing | SC | LC |
|---|---|---|---|

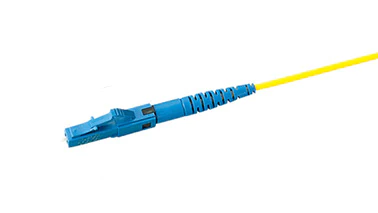

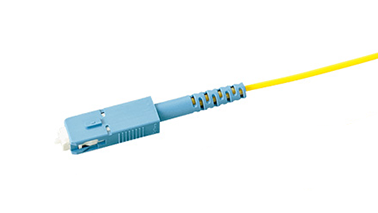

| SM | UPC | SC-QA-SM-20 (*D) | LC-QA-SM-20 (*F) |

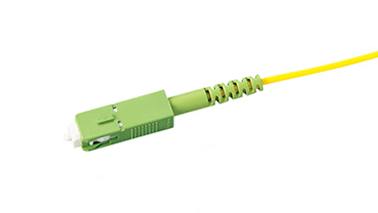

| APC | SC-QA-APC-20 (*E) | LC-QA-APC-20 (*G) | |
| MM (OM1) | PC | SC-QA-GI6-20 | LC-QA-GI6-20 |
| MM (OM4) | PC | SC-QA-OM4-20 | LC-QA-OM4-20 |
