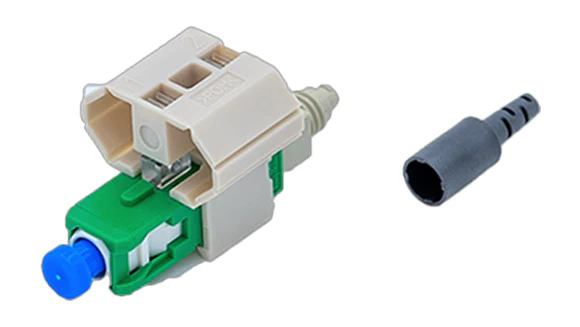

FAST™ Connector Series
Applications
- Connector assembly at constrution site for FTTH
Features
- 01

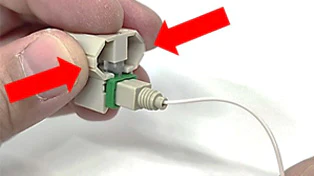

Tool-Free, Easy Assembly
Field assembly is possible using only dedicated jigs and basic tools, and includes wedge units for quick connection without special tools.
- 02
Compatible with a Wide Range of Cables
Compatible with 0.25 mm stranded wire, 0.9 mm solid wire, 2 mm/3 mm cords, drop/indoor cables, and more.
- 03
High Performance and Reliability
It achieves excellent optical performance with an average connection loss of 0.5dB or less and a return loss of 40dB or more, providing stable communication quality.
Customer Benefits
Reduces installation time and improves work efficiency. It also supports diverse cable types, offering high versatility for deployment and contributing to overall cost reduction.
Product Catalog
You can find the product specifications here. Please download them using the button below.
Selection Process
Ordering Information
1. 0.25mm / 0.9mm fiber, 2mm / 3mm cord:
| Fiber | Polishing | SC | LC | ST |
|---|---|---|---|---|
| SM | SPC | FAST-SC-SM-ALL | FAST-LC-SM-ALL | FAST-ST-SM-ALL |
| APC | FAST-SC-APC-SM-ALL | FAST-LC-APC-SM-ALL | - | |
| MM (OM1) | PC | FAST-SC-GI6-ALL | FAST-LC-GI6-ALL | FAST-ST-GI6-ALL |
| MM (OM2) | PC | FAST-SC-GI5-ALL | FAST-LC-GI5-ALL | FAST-ST-GI5-ALL |
| MM (OM3) | PC | FAST-SC-10G-ALL | FAST-LC-10G-ALL | FAST-ST-10G-ALL |
2. Rectangular shaped cable (outdoor / indoor)
| Fiber | Polishing | SC | LC(*6) | ST |
|---|---|---|---|---|
| SM | SPC | FAST(N)-SC-SM-UNI/GT (*E) | FAST-LC-SM-LF/GT | - |
| APC | FAST(N)-SC-APC-SM-UNI/GT | FAST-LC-APC-SM-LF/GT | - |
