Small Rosette
FPB-301 Series

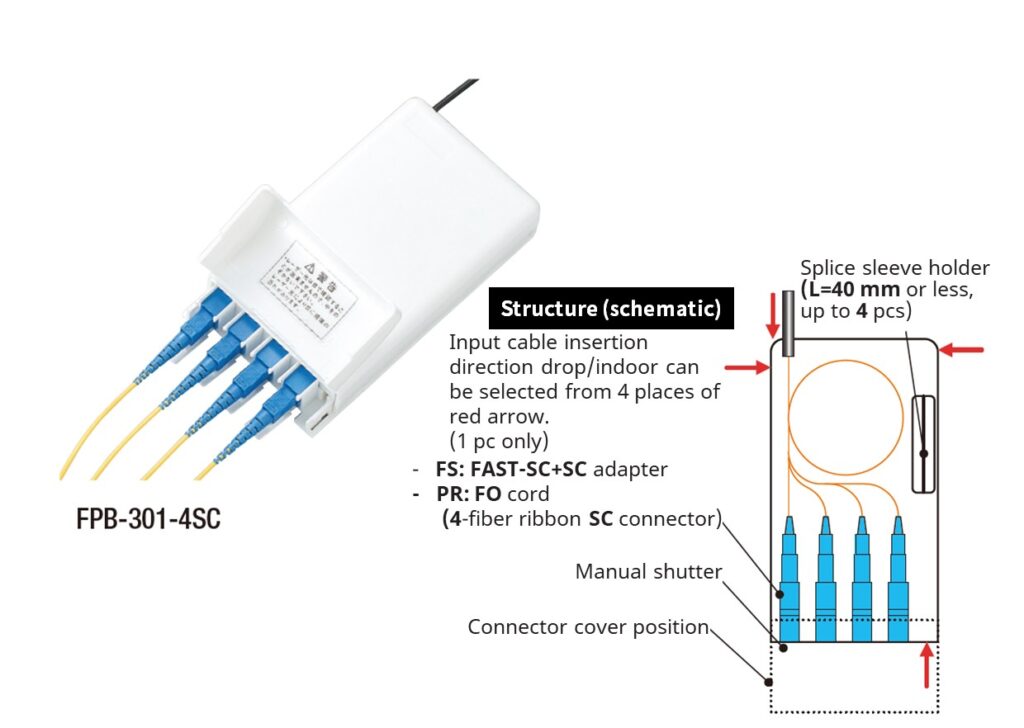

The FPB-301 Series, small rosette/outlet, is suitable for terminating FTTH condominiums and LAN (FTTD). It supports built-in FO (-PR) and field-installable connector (FAST™-SC) (-FS). Indoor cable and drop cable can be installed, and it supports fibers with 15mm bending radius. Drop/indoor cable can be inserted from any of the four directions. The connector protection cover safeguards against external impacts.
Small Rosette FPB-301 Series
■UV Resistant
■Suitable for termination of FTTH condominiums and of LAN (FTTD).

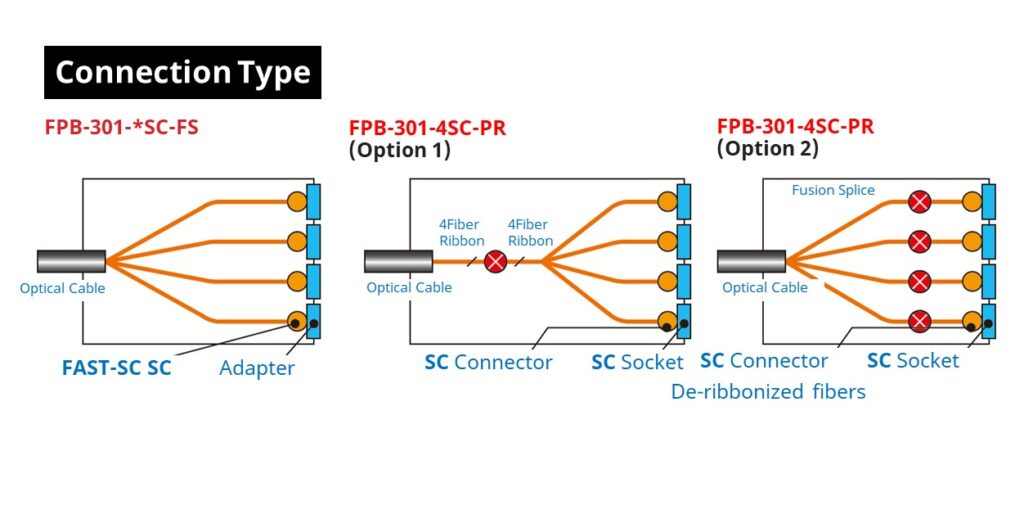

■Built in FO(-PR) and field-assembled connector (FAST-SC) (-FS) available
■Indoor cable and drop cable can be installed. Use the fibers having R15 mm bending diameter such as
“SR 15″ and “SR 15 E“.

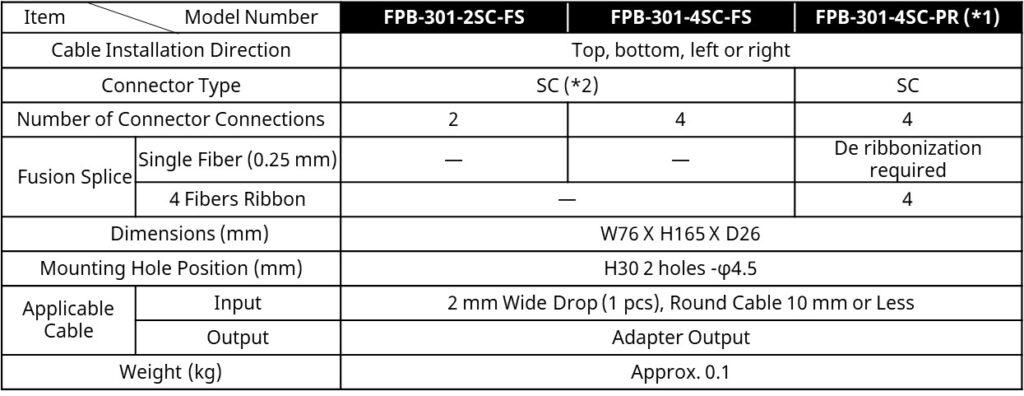

(*1): Built-in 4FO fiber line.
(*2): FAST-SC included.
(*1): Built-in 4FO fiber line.
(*2): FAST-SC included.
