Optical Termination Box (Indoor wall mount type) FDB Series
The FDB Series is an indoor wall-mount optical termination box. It offers flexibility in connecting optical cables, cordage, and adapters. It is suitable for network maintenance and comes with a lockable door for added security.
Optical Termination Box (Indoor use)
FBD Series
FDB series are indoor wall mount type of optical termination box.
Features
■A flexible termination box, capable of connecting optical cables, cordage, and adapters
■Suitable for network maintenance
Application
■Indoor
■Wall mount
(*1) Please specify when ordering.
(*2) FC adapter type is available.
Optional items:
•Cable fixture kit for extension
Up to 10 cables can be fixed by adding a cable extension kit.
Model : cable extension kit (3 cables) (for FDB)
Model : cable extension kit (5 cables) (for FDB)

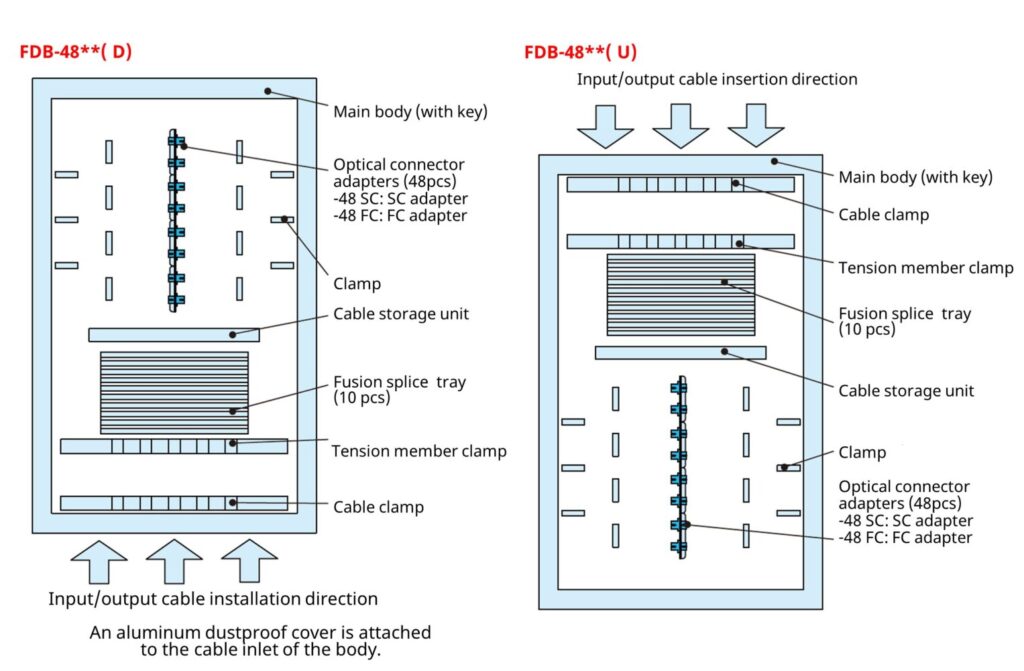

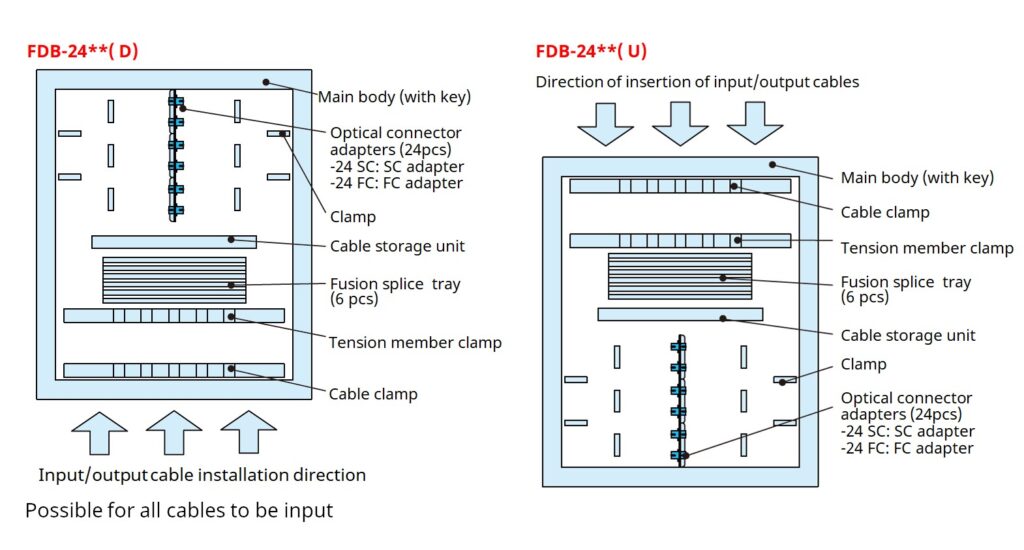

| Type No | FDB-24SC(U) | FDB-24SC(D) | FDB-48SC(U) | FDB-48SC(D) | |
| Cable Installation Direction | Top | Bottom | Top | Bottom | |

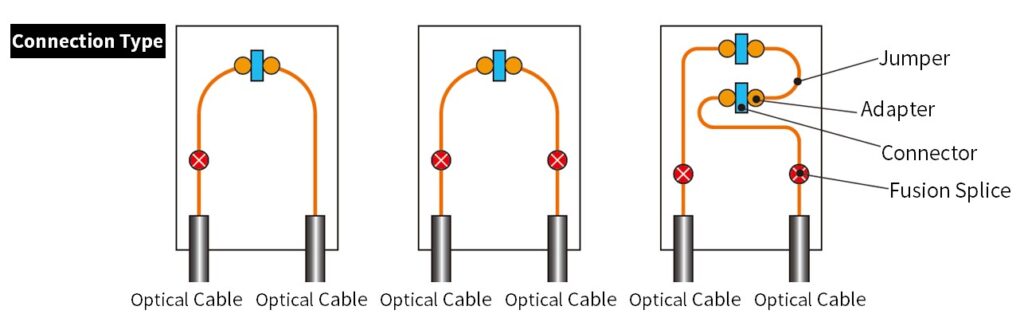

| Connection Type | SC connector(*1) and Fusion splice | ||||
| Number of Adapters | 24 | 48 | |||
| Fiber Capacity | Single Fiber (0.25mm) | 60 fibers | 100 fibers | ||
| Single Fiber (0.9mm) | 60 fibers | 100 fibers | |||
| 4 Fiber Ribbon | 120 fibers | 200 fibers | |||
| Dimensions (mm) | W500 x H600 x D160 | W500 x H800 x D160 | |||
| Mounting Hole Position (mm) | W460 x H480, 4holes(Φ10) | W460 x H680, 4holes(Φ10) | |||
| Applicable Cable | Input | Round cable Φ30 mm or less (1pc) | |||
| Output | Round cable Φ30 mm or less (4pcs), 2mm cord | ||||
| Weight(kg) | Approx. 25 | Approx. 35 | |||
(*1) FC connector type is available.
