Fiber Optic
Termination Box
for 19-inch Rack Mounting
(Sliding Enclosure)
FTB-235 Series

FTB-235 Series

Features

● Applicable for various needs by combining patch panel body, adapter panel, wiring guide, and holding metal fitting for multi-fiber cables. (Note 1, Note 2)
● Enabling ease maintenance after installation and additional connection of fibers with its sliding mechanism.
● Preventing accidental removal with the transparent optical adapter by using visible light (SM only).
● Supports 0.9 mm single fiber, 4-fiber ribbon fiber, and 8-fiber ribbon fiber optical cables.
● Available of prewiring type. (Note 2)

Note 1: The model without prewiring is delivered as a kit and needed to be assembled by customer.
Note 2: The model with prewiring is delivered after assembled with FO (Fan Out) cord at the factory.

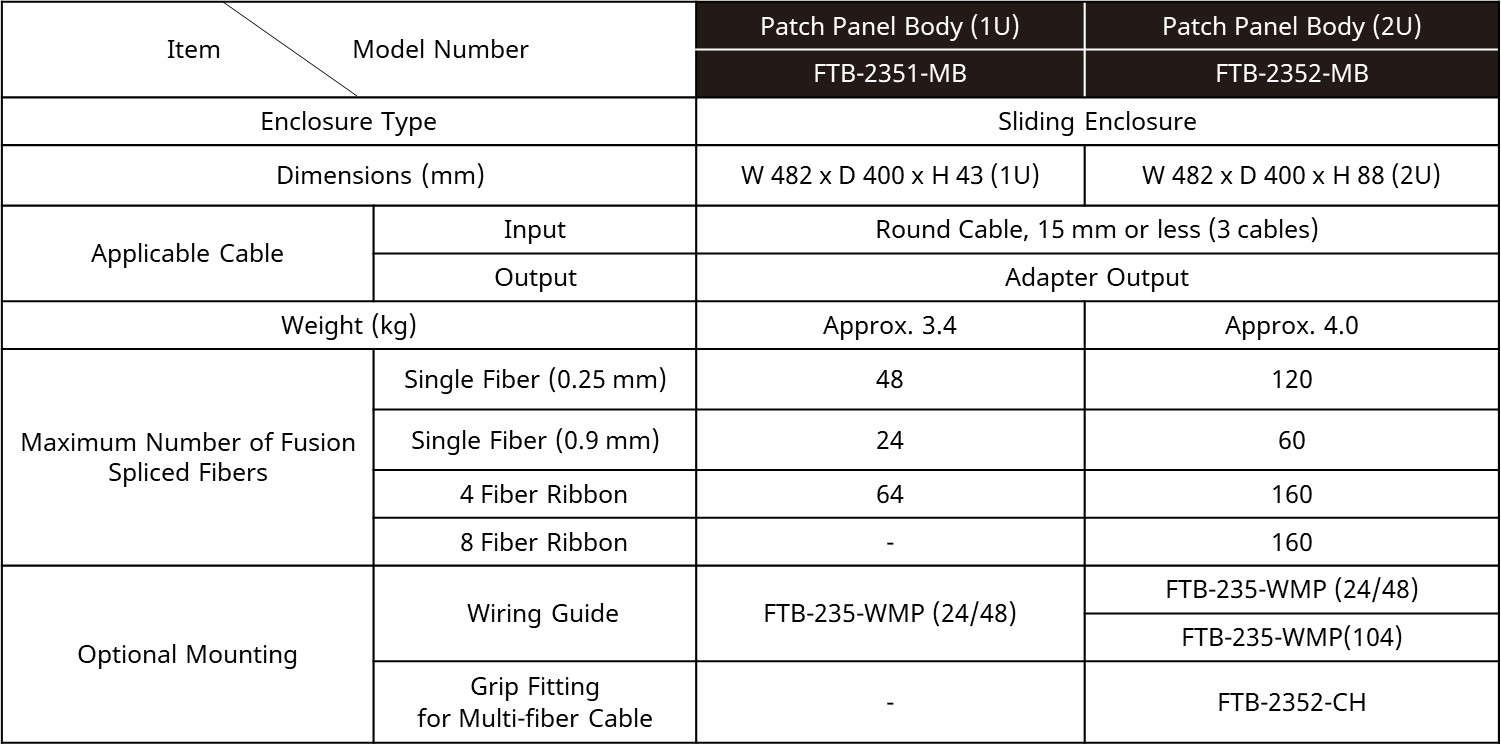

● Patch Panel Body

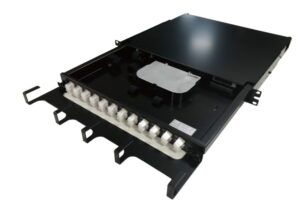

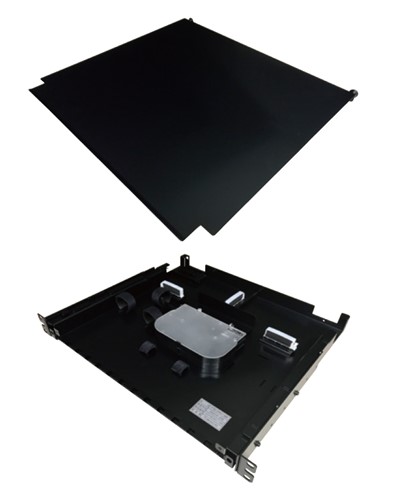

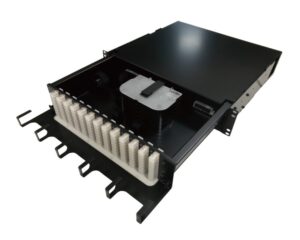

Patch Panel Body (1U)

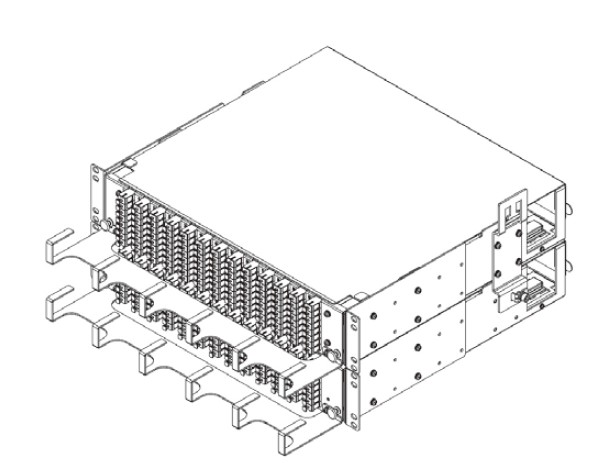

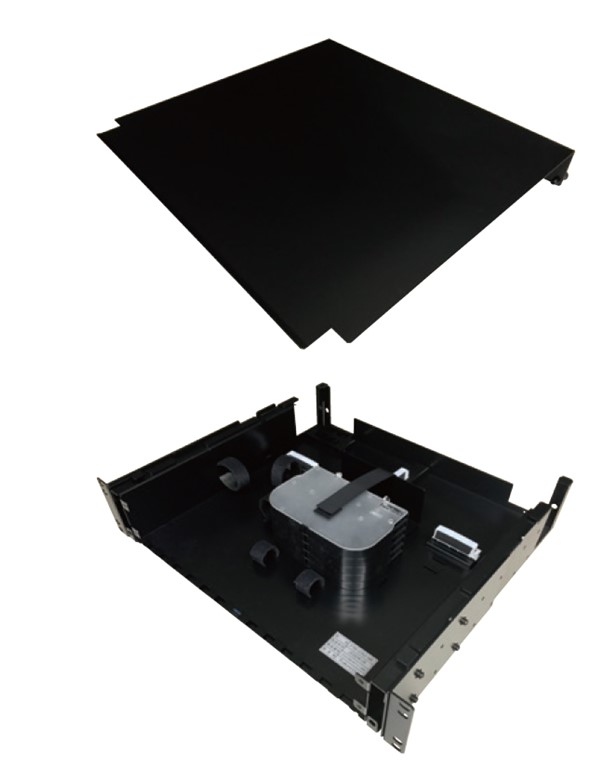

Patch Panel Body (2U)

● Adapter Panel (for 1U)

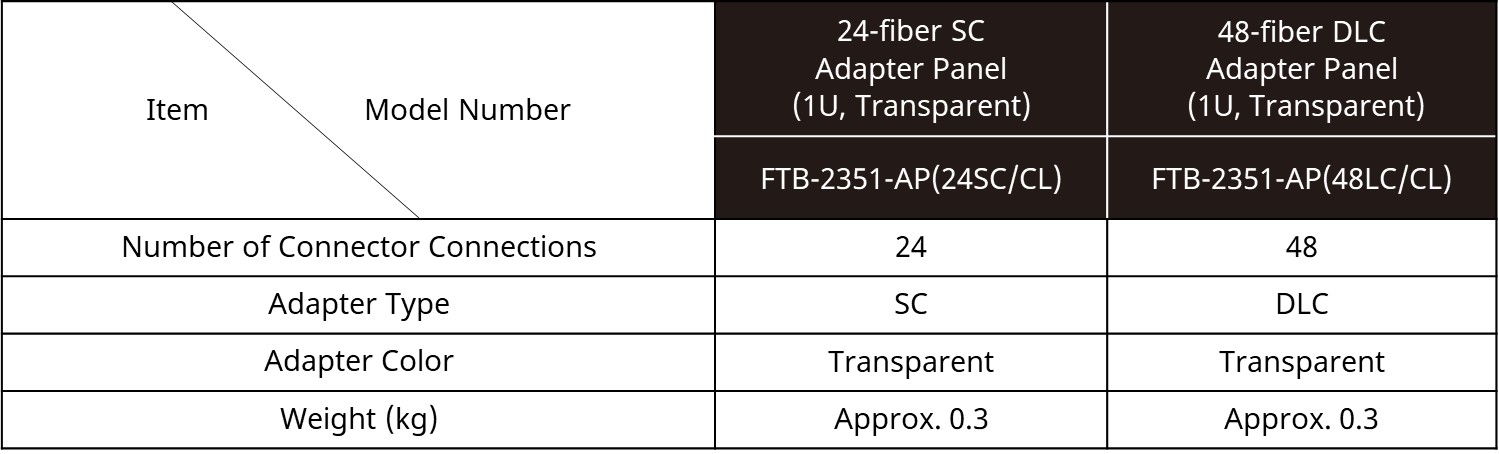

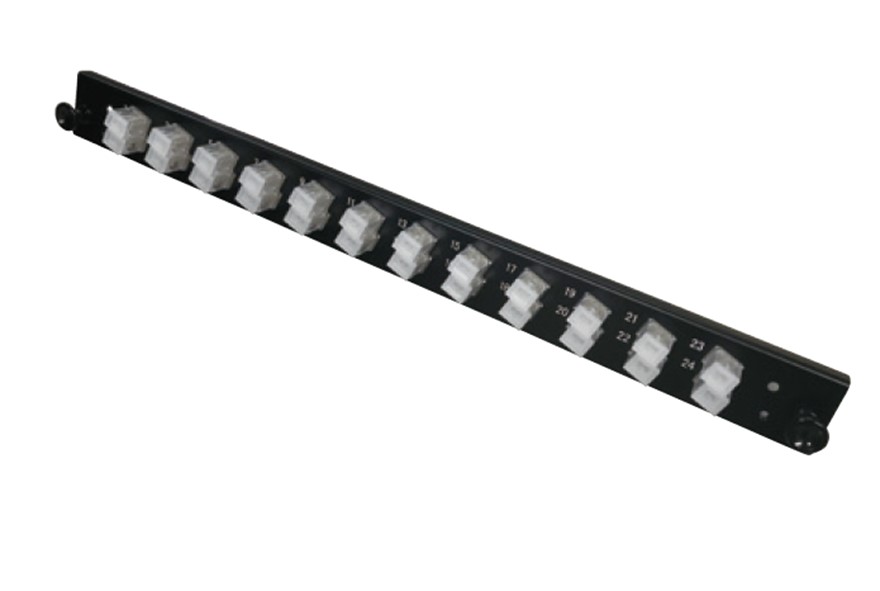

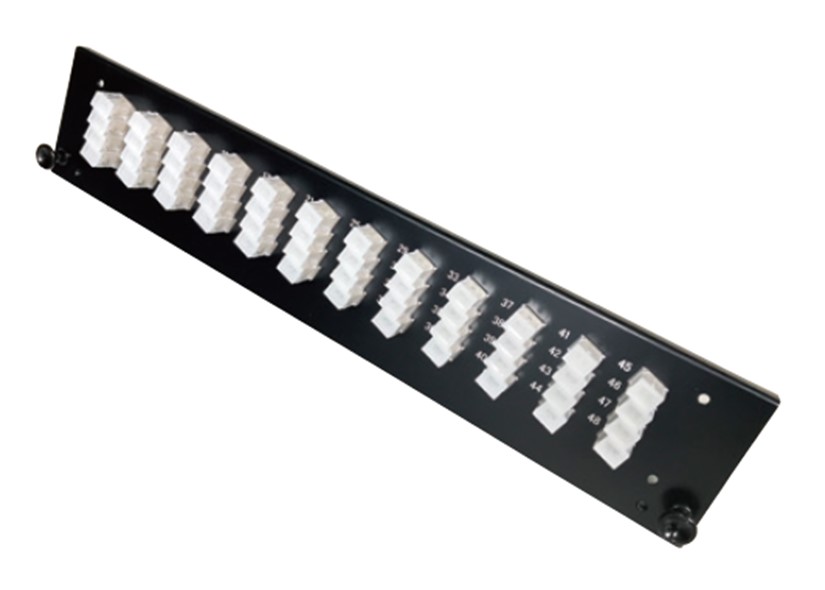

24-fiber SC Adapter Panel (1U, Transparent)

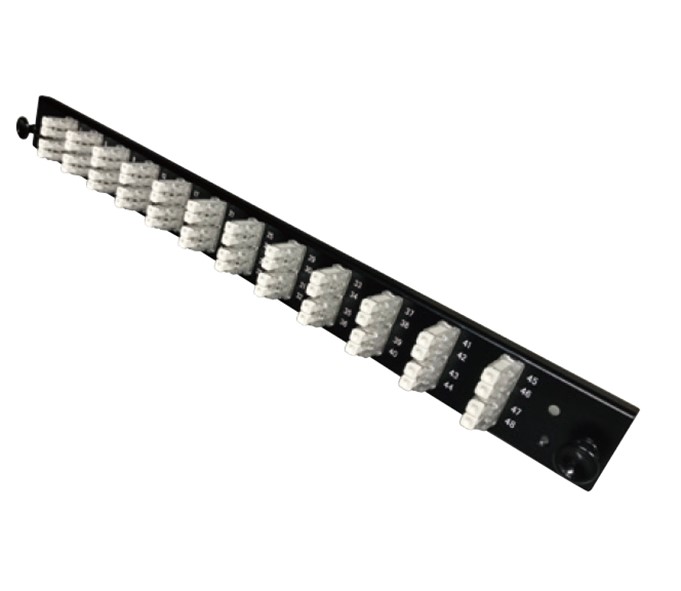

48-fiber DLC Adapter Panel (1U, Transparent)

● Adapter Panel (for 2U)

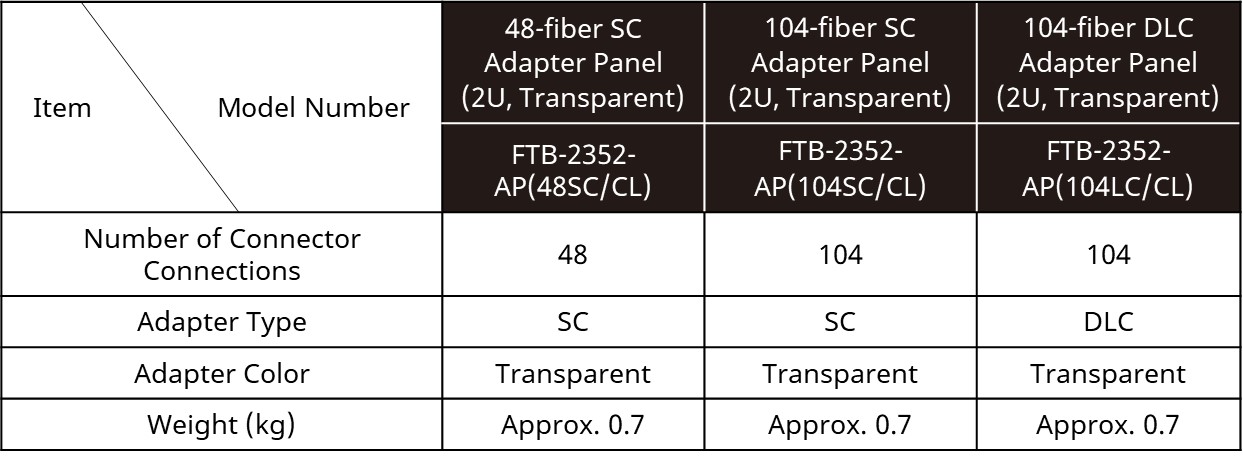

48-fiber SC Adapter Panel
(2U, Transparent)

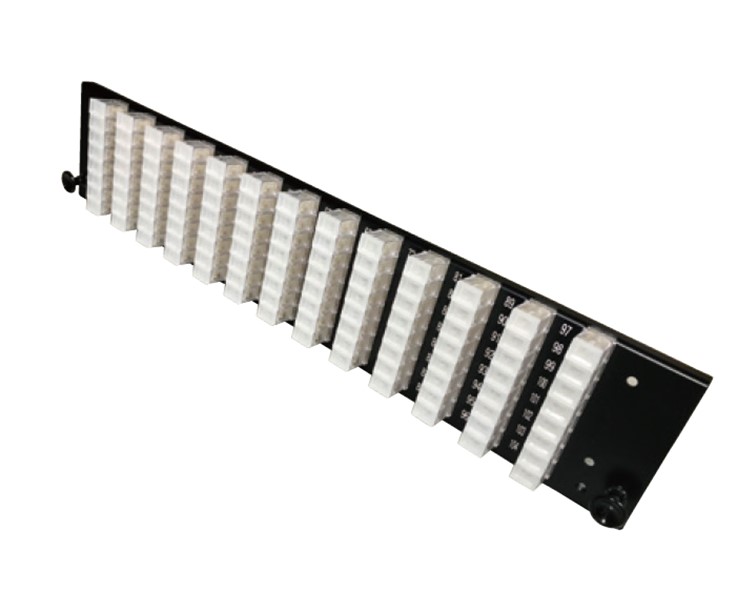

104-fiber SC Adapter Panel
(2U, Transparent)

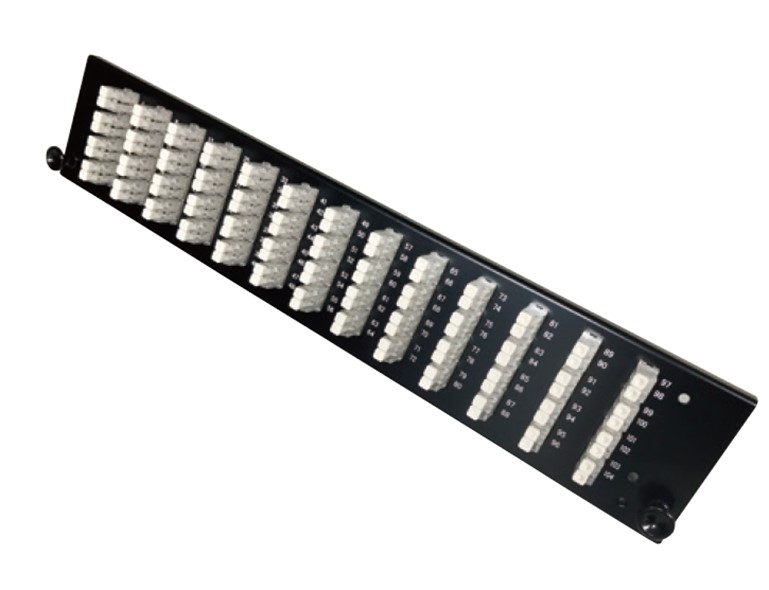

104-fiber DLC Adapter Panel
(2U, Transparent)

Note: The adapter is also available in blue. Please consult us separately.

● Wiring Guide (Optional)

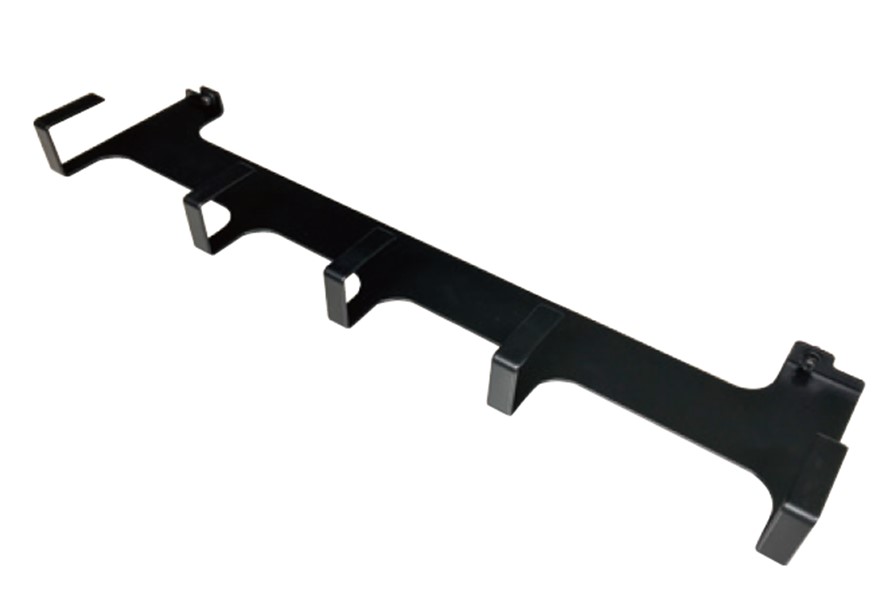

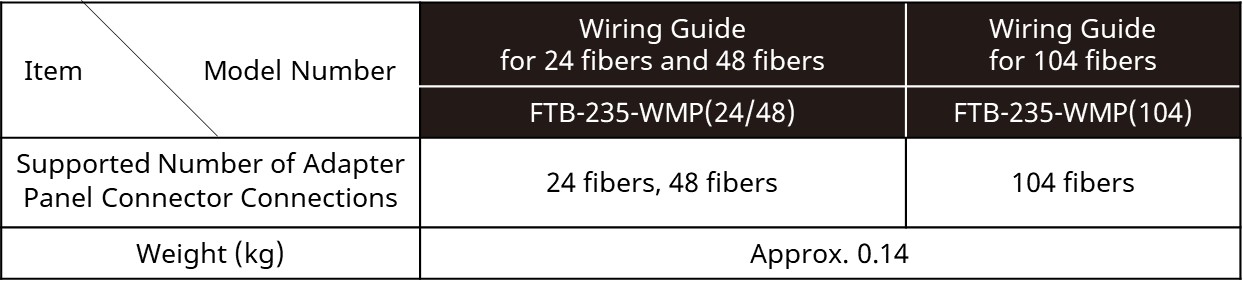

Wiring Guide (For 24 fibers and 48 fibers)
Note: 104-fiber type is available.

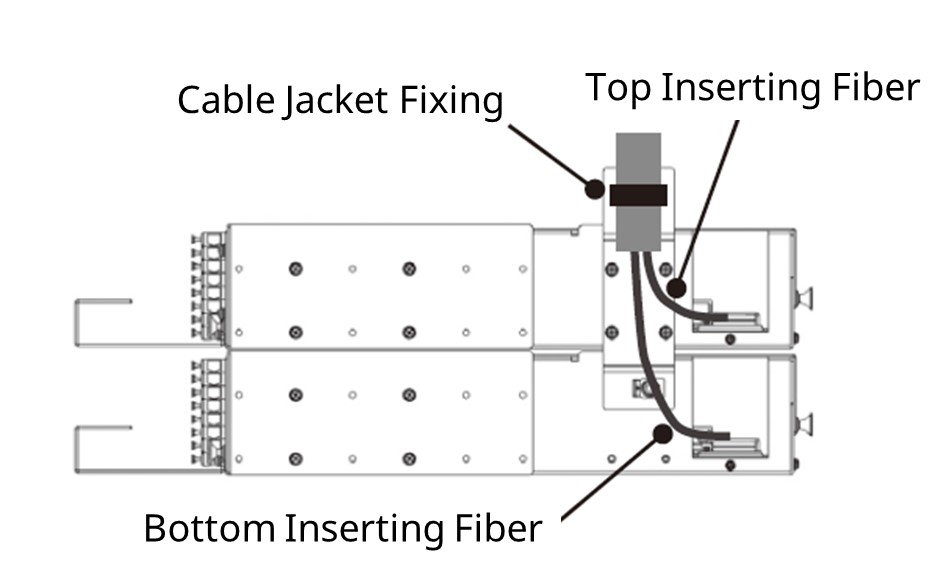

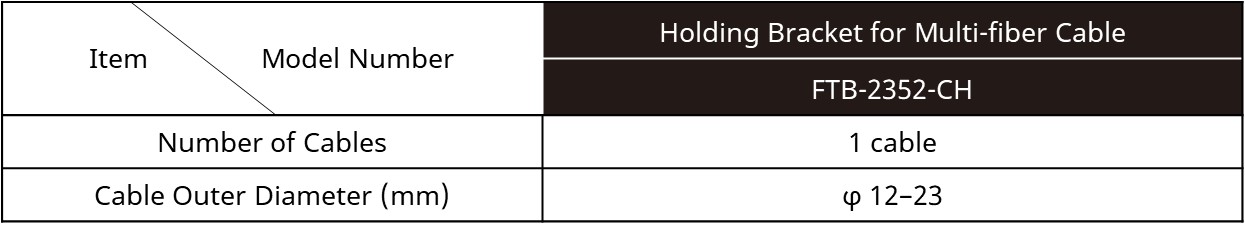

● Holding Bracket for Multi-fiber Cable (Optional)

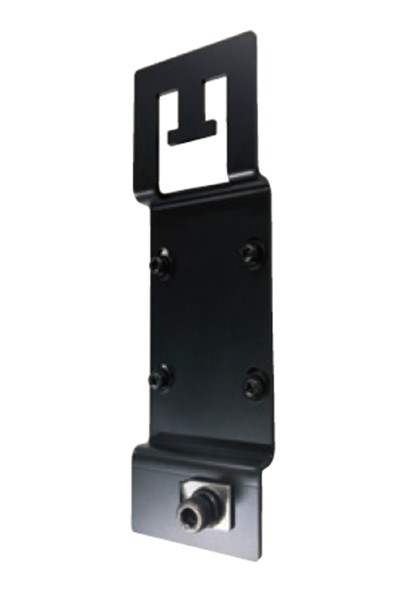

Holding Bracket for Multi-fiber Cable

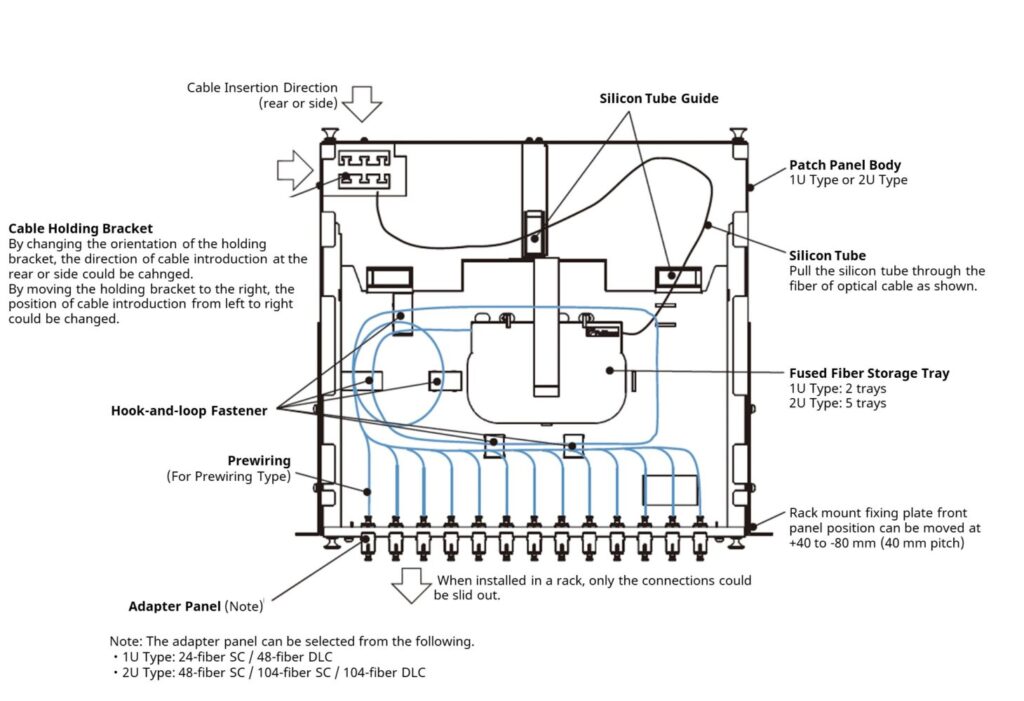

Configuration Examples

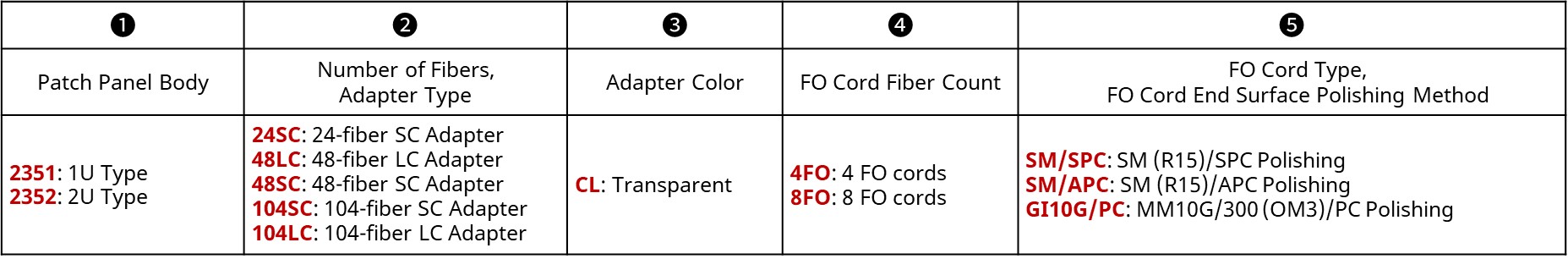

Configuration Example 1 ●For SC Connector, 24 fibers	Configuration Example 2 ● For SC Connector, 104 fibers
Patch Panel Main Body: FTB-2351-MB Adapter Panel: FTB-2351-AP(24SC/CL) Wiring Guide: FTB-235-WMP(24/48)	Patch Panel Main Body: FTB-2352-MB Adapter Panel: FFTB-2352-AP(104SC/CL) Wiring Guide: FTB-235-WMP(104)
