PANDA fiber
with heat resistant coating
Fujikura PANDA fibers have a superior optical property in polarization-maintaining because of the symmetrical accuracy in cross section and the uniform constitution of stress applying parts. Based on Fujikura's fiber technology, PANDA fibers have a universal quality with not only low polarization-crosstalk and low attenuation but also the broad suitability for fusion-splice or optical connector.
Features
・The heat resistance has been improved compared with conventional acrylate coatings, and can be used in a wide temperature range of -40 ˚C to +150 ˚C.
・Product for small bending radius (R5 mm)
Specifications
| BIR5-13-PX-U25HT | BIR5-15-PX-U25HT | |
| Wavelength band | 1310 nm | 1550 nm |
| Mode field diameter (μm) | 7.8 ± 0.5 ＠ 1310 nm | 9.0 ± 0.4 ＠ 1550 nm |
| Concentricity error (μm) | ≤ 0.5 | |
| Cladding diameter （Major diameter） (μm) | 125 ± 1 | |
| Attenuation (dB/km) | ≤ 3.0 ＠ 1310 nm | ≤ 3.0 ＠ 1550 nm |
| Cutoff wavelength (nm) | ≤ 1260 | ≤ 1500 |
| Bending attenuation （dB, R5mm × 10 turns） | ≤ 0.1 ＠ 1310 nm | ≤ 0.1 ＠ 1550 nm |
| Bending polarization crosstalk （dB, R5mm × 10 turns） | ≤ -30 ＠ 1310 nm | ≤ -30 ＠ 1550 nm |
| Beat length (mm) | ≤ 3.0 ＠ 1310 nm | ≤ 3.0 ＠ 1550 nm |
| Minimum bending radius | 2 % proof test level：R5 mm | |
| Coating material | UV curable resin | |
| Coating diameter (μm) | 245 ± 15 | |

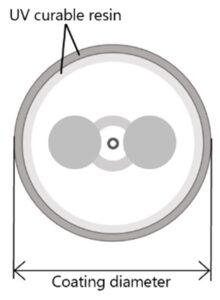

Cross-section image |  | |
| RCBI13-PX-U17HT | RCBI15-PX-U17HT | |
| Wavelength band | 1310 nm | 1550 nm |
| Mode field diameter (μm) | 7.4 ± 0.5 ＠ 1310 nm | 8.6 ± 0.4 ＠ 1550 nm |
| Concentricity error (μm) | ≤ 0.5 | |
| Cladding diameter （Major diameter） (μm) | 80 ± 1 | |
| Attenuation (dB/km) | ≤ 3.0 ＠ 1310 nm | ≤ 3.0 ＠ 1550 nm |
| Cutoff wavelength (nm) | ≤ 1250 | ≤ 1500 |
| Bending attenuation （dB, R5mm × 10 turns） | ≤ 0.1 ＠ 1310 nm | ≤ 0.1 ＠ 1550 nm |
| Bending polarization crosstalk （dB, R5mm × 10 turns） | ≤ -27 ＠ 1310 nm | ≤ -27 ＠ 1550 nm |
| Beat length (mm) | ≤ 3.0 ＠ 1310 nm | ≤ 3.5 ＠ 1550 nm |
| Minimum bending radius | 2 % proof test level：R5 mm | |
| Coating material | UV curable resin | |
| Coating diameter (μm) | 165 ± 10 | 165 ± 15 |
Cross-section image |  | |
