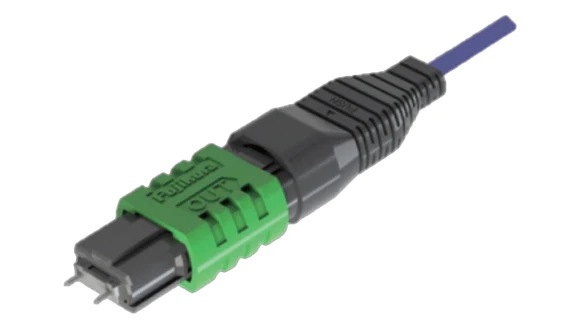

FuseConnect^™ for MPO

Applications

Field termination of MPO connector in Data center and central office
Low return loss connection

Features

01
Factory Pre-Polished Ferrule

Eliminates the need for field polishing, adhesives, and crimping, reducing operator error and costly connector scrap.
02
Easy and clean single to ribbon fiber conversion

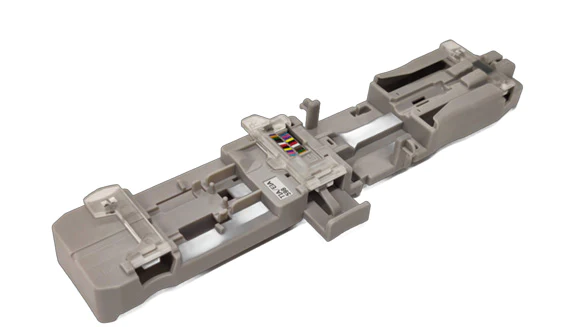

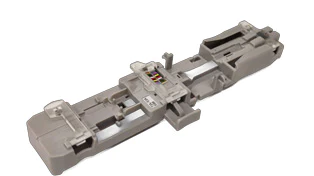

Designed for use with the RT-02 ribbonizing tool that requires no ribbonizing glue, ensuring a cleaner and simpler installation.
03
Versatile and Reliable

Compatible with standard ribbon, Spider Web Ribbon™, or loose-tube cable for reliable, repeatable multi-fiber terminations in the field.

Customer Benefits

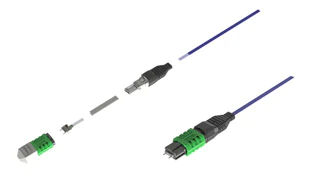

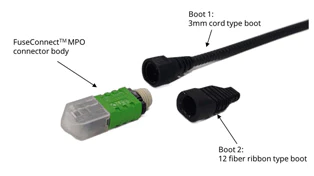

FuseConnect™ MPO simplifies multi-fiber terminations with just six components and a factory-pre-polished ferrule, eliminating polishing, adhesives, and crimping to reduce errors and scrap. Compatible with the RT-02 tool for a cleaner process, it matches factory MPO/MTP™ performance while supporting standard ribbon, Spider Web Ribbon™, and loose-tube cables for reliable, repeatable field terminations.

Product Catalog

You can find the product specifications here. Please download them using the button below.

Download Catalog

Selection Process

Ordering Information

Fiber	Polishing	Male (Connector with Guide Pin)	Female (Connector without Guide Pin)
SM	APC	FUSECONNECT-MPO-S-MALE-SM15-6	FUSECONNECT-MPO-S-FEMALE-SM15-6
Low Loss SM	APC	FUSECONNECT-MPO-S-MALE-LLSM15-6	FUSECONNECT-MPO-S-FEMALE-LLSM15-6
MM (OM1)	PC	FUSECONNECT-MPO-S-MALE-GI6-6	FUSECONNECT-MPO-S-FEMALE-GI6-6
MM (OM4)	PC	FUSECONNECT-MPO-S-MALE-OM4-6	FUSECONNECT-MPO-S-FEMALE-OM4-6
