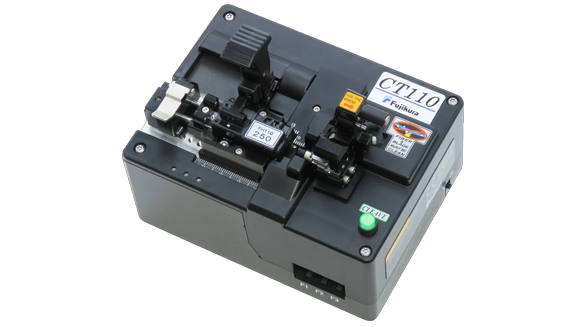

Advanced Optical Fiber Cleaver CT110/111
Applications
- The CT110/111 is designed for cleaving silica fiber with 80 to 250µm cladding diameter.
Features
- 01

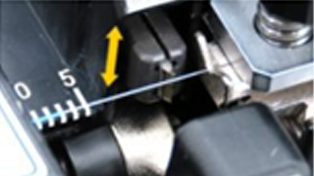

Cleaving tension automatic setting
Automatic cleaving tension function can tension and can save your optimization.
- 02

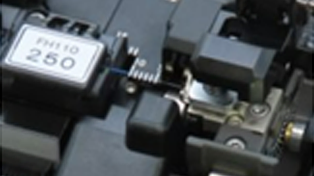

Blade position automatic changing
A new blade mechanism automatically controls blade height, maintaining optimal blade condition for consistent, high-quality cleaving.
- 03

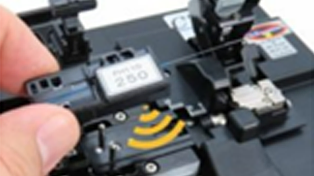

Wireless communication by RFID
Fiber holders equipped with RFID tags communicate with the CT110/CT111 to automatically select the appropriate cleaving program.
Customer Benefits
The CT110/111 cleaves silica fibers with cladding diameters of 80–250 μm by adjusting fiber tension. The CT111 features an oblique cleaving unit (0–15°), making it ideal for both R&D and production applications.
Lineup

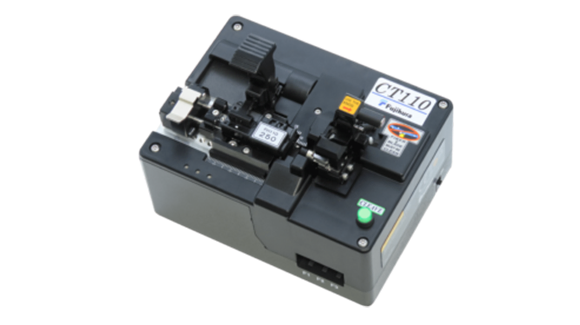

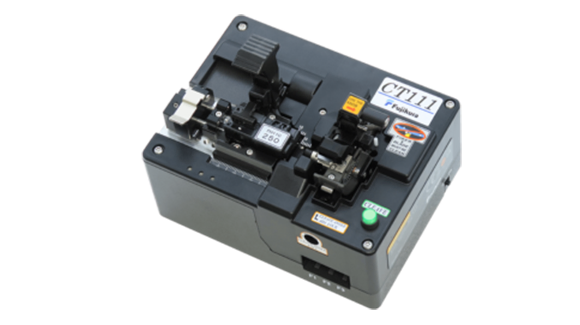

| CT110 | CT111 | |
|---|---|---|
| Cladding diameter | 80 to 250μm | |
| Cleave length | Approx.11~44mm | |
| Angle cleaving | Not available | 0 to 15 degrees |
Product Catalog
You can find the product specifications here.
Please download them using the button below.
Selection Process
Select whether you want to enable the diagonal cutting function.
