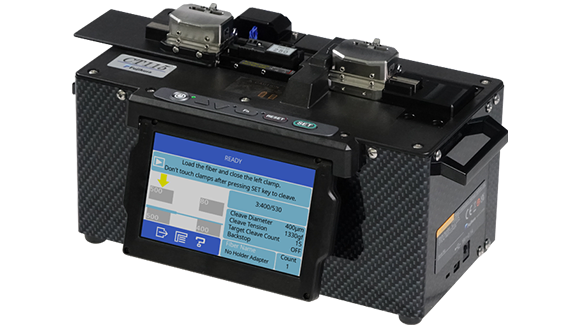

Large Diameter Optical Fiber Cleaver CT114/115/116
Applications
- Cleaving the large diameter optical fiber
Features
- 01

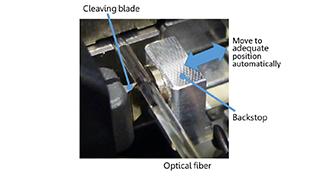

Auto Backstop
The Backstop provides both stable cleaving and shortens the cleaving operation time by detecting the backstop position and moves to the correct position automatically.
- 02

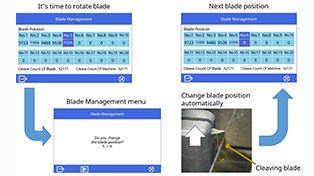

Blade Management
The automatic cleaving blade position always keep using good quality blade and it provides stable cleaving quality without tools.
- 03

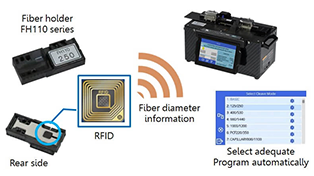

Wireless communication function
The FH110 RFID includes the holder size information. The CT115 series reads it and selects a pre-assigned program.
Customer Benefits
These various functions help you reducing errors and faster work.

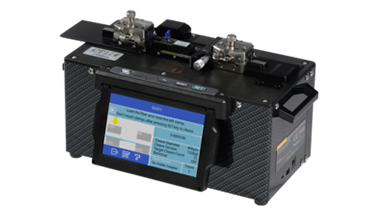

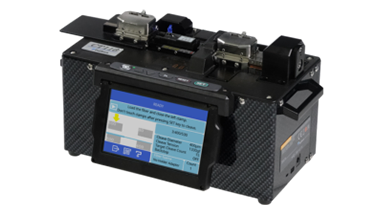

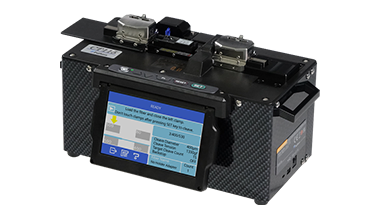

Lineup
We have 3 type of cleavers.
| Model | CT114 | CT115 | CT116 |
|---|---|---|---|
| Cladding diameter | 80 ～ 660μm | 80 ～ 1250μm | |
| Cleave length | 5 ～ 40mm | ||
| Angled cleave | ー | ✓ | |
| Fiber holder | Fiber holder adapter(FHA-CT115) FH-100, FH110 series | ||
Product Catalog
You can find the product specifications here.
Please download them using the button below.

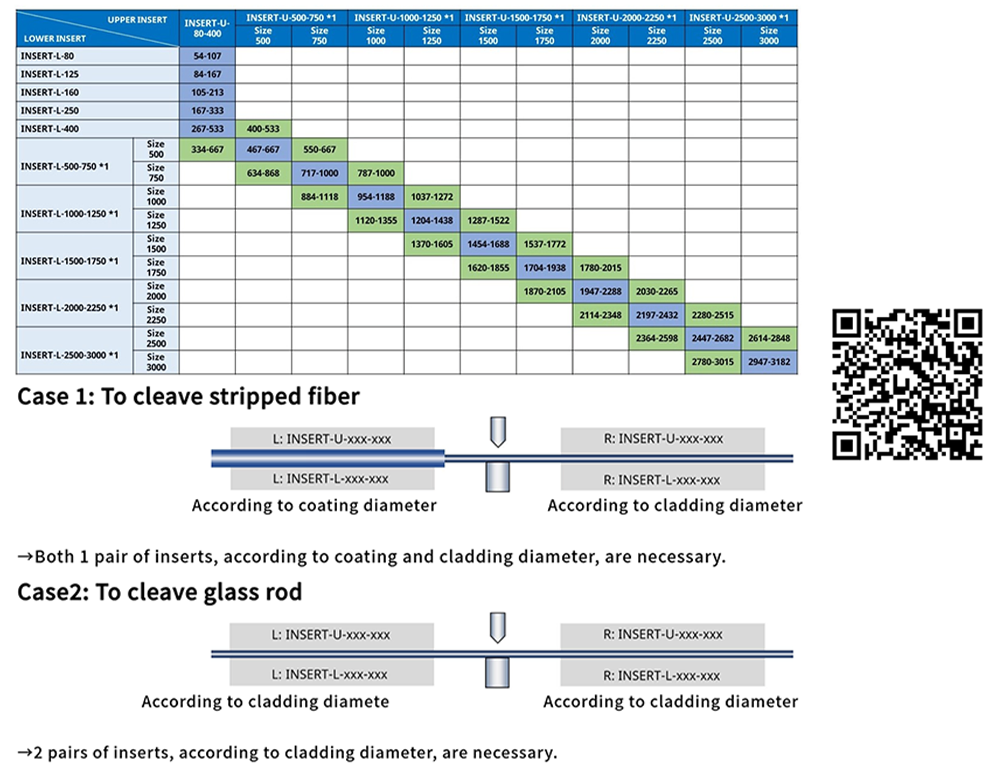

Selection Process
Inserts are selected according to fiber coating diameter and cladding diameter.
Therefore, the standard configuration does not include inserts. Please refer to the below table and purchase inserts separately.
*1: Each side of this insert is equipped with a groove that is marked with the size of the fiber diameter on the table.
For more information on how to select inserts, please refer to the QR code.
Fiber Optic Fusion Splicing Training
Fujikura offers fusion splicing training courses with optic fiber handlings. Through these courses, you will gain an understanding in fiber optic communications, installations, testing procedure with necessity equipment. You will also learn how to make the right knowledge in choosing the most suitable equipment for your project. Please contact Fujikura authorized distributor more information.
