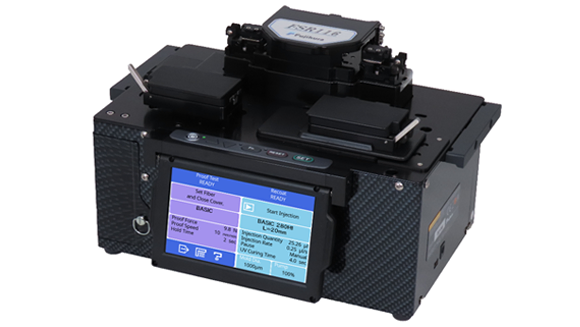

Optical Fiber Recoater FSR115/116/117
Applications
- FSR115/116/117 re-coats the fusion spliced section of the optical fiber with a UV-curable resin.
Features
- 01

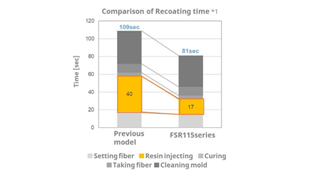

Shortened UV curing resin injection time
The newly designed pump reduces UV resin injection time and cuts total recoating time by 25% compared to the previous model.
- 02

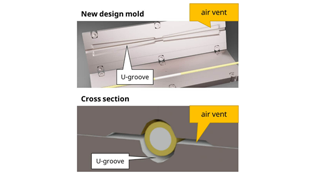

Enhanced repeatability of recoating length.
The recoat mold features slight steps in the U-groove that act as air vents, ensuring smoother resin flow.
- 03

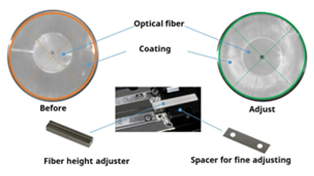

Fiber and recoating centering adjustment is now possible by the user
The fiber height adjuster centers the fiber within the mold to align its diameter, while spacers enable precise fine-tuning.
Customer Benefits
Using a recoater, the section removed during fusion splicing can be restored with UV-curable resin instead of a reinforcing sleeve, making the fiber—including the spliced area—easier to store and handle.
Lineup

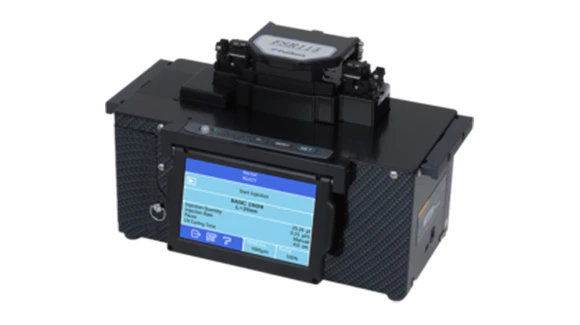

| FSR115 | FSR116 | FSR117 | |
|---|---|---|---|
| Recoating length | Max.50mm | ||

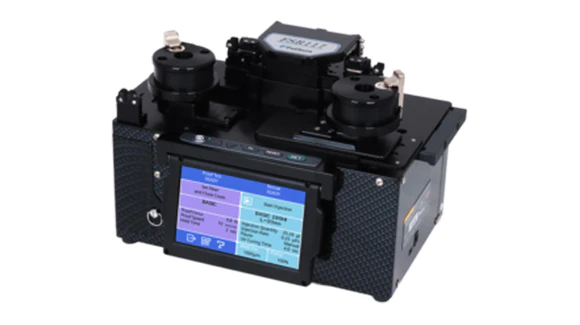

| Proof -tester | Not available | 0.2～2.0kgf、Flat Clamp | FSR117：0.2～10.0kgf、Mandrel clamp |
Product Catalog
You can find the product specifications here. Please download them using the button below.
Selection Process
Select based on the availability of the proof tester function.
FSR115：-／FSR116：0.2～2.0kgf、Flat Clamp／FSR117：0.2～10.0kgf、Mandrel clamp
