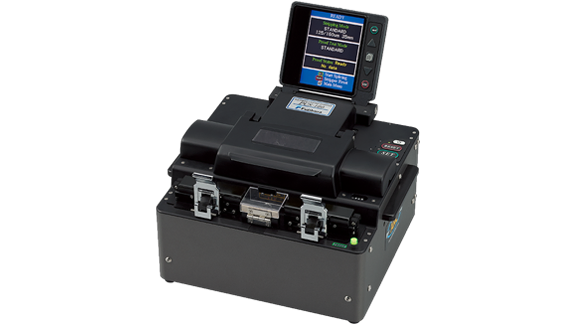

Polyimide Coating Stripper PCS-100/100L
Applications
- Stripping of polyimide coating from fibers
Features
- 01
Quick and Safety Automated Stripping

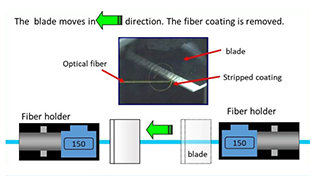

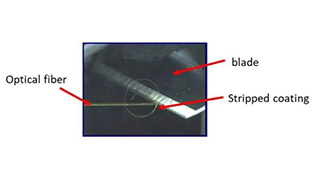

Slide the blade along the fiber with appropriate tension applied to strip the coating.
- 02
Adjustable Parameters
Many parameters—including blade position, stroke, and fiber rotation angle—are adjustable to accommodate different fiber sizes and coating materials.
Customer Benefits
The PCS-100/100L mechanically strips polyimide coatings using blades, without chemicals or flames, in about 20 seconds per fiber. The PCS-100 includes a built-in proof tester to verify the strength of the stripped section, while the PCS-100L does not.
Lineup

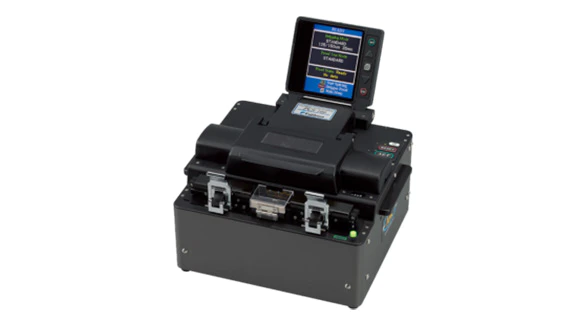

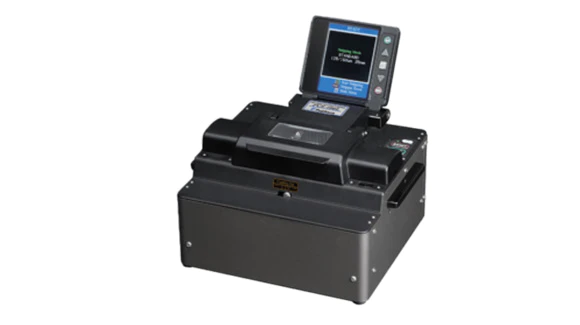

Depending on whether the proof tester function is included or not, there are two types of lineups available.
Selection Process
When stripping polyimide coating, please select this device.
It also accommodates fiber diameters that other coating strippers (RS03, RS03-80, SS110) cannot handle.
