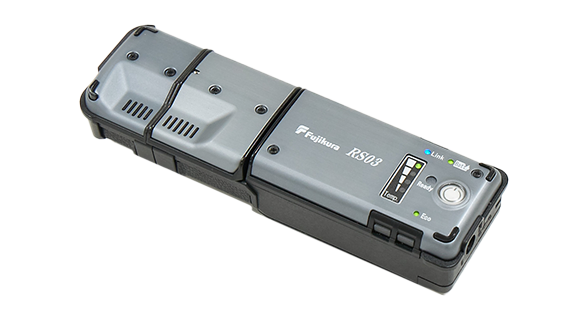

Ribbon Fiber Stripper RS02/03/03-80
Applications
- The RS03 series is designed to heat optical fibers with a built-in heater and remove their coating using a stripping blade.
Features
- 01

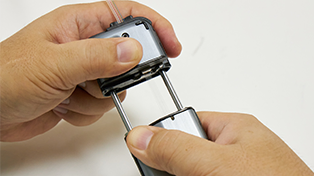

Reduced Pulling Force for Easier Coating Removal
An ergonomically designed body enables coating removal with approximately 25% less pulling force compared to previous models.
- 02

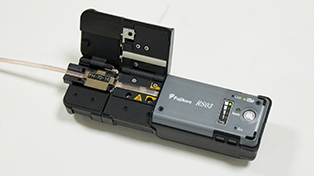

Stripping Condition Control
RS02/03 heating conditions are automatically adjusted via wireless communication based on fiber type whenever the splice mode changes.
- 03
Battery Capacity for RS03
The RS03 is equipped with a high-capacity battery that supports up to 600 stripping cycles.
Customer Benefits
The RS02/03/03-80 is designed for ease of use, requiring minimal force during stripping. With an optional spacer, short leads of 3–5 mm are possible, and the fiber holder is compatible with the FH-100 series. It also features a high-capacity battery supporting 600 stripping cycles—six times larger than conventional models—and wireless connectivity with smartphones for adjusting operational parameters.
Lineup
Two types of lineup available depending on the applicable clad diameter
| RS02 | RS03 | RS03-80 | |
|---|---|---|---|
| Cladding diameter | 125µm | 80µm | |
| Coating diameter | 200μm～250μm | 150μm～250μm | |
| Number of optical fibers | 1～16ribbon | single | |
| Battery | Not available | Available | |
Selection Process
RS02／RS03：Cladding diameter 125µm／Coating diameter 200μm～250μm Number of optical fibers：1～16ribbon
RS03-80：Cladding diameter 80µm／Coating diameter 150μm～250μm Coating diameter：single
Battery :RS03／RS03-80：Available RS02：Not available
