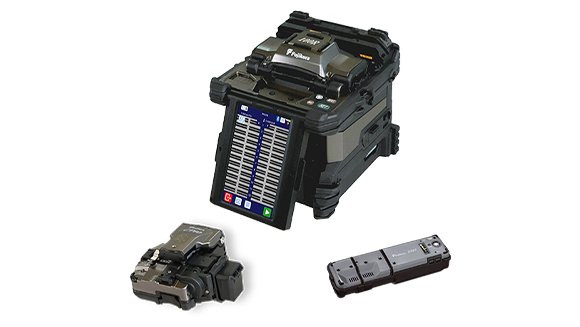

Mass Fusion Splicer 100R Kit series
Applications
- Ribbon splicer for up to 16-fibre ribbons
Features

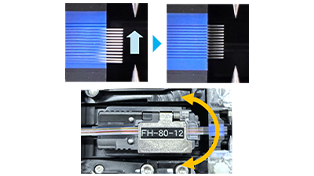

- 01
Reduce fiber re-setting
The new FH-80 series optical fiber holder and Automatic Optical Fiber Seating Function reduce the need for re-setting fibers.

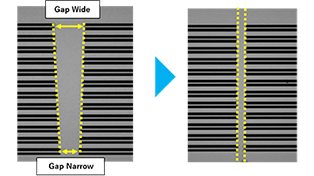

- 02
Improved splice quality
"Fiber Ends Gap Correction Function" and "clamp force adjustment functions" improve splice quality.

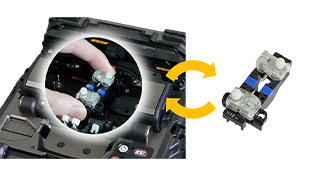

- 03
Changeable V-grooves ensure compatibility with multiple ribbon fiber specifications
Including 16-fiber ribbons and 200 μm pitch can be spliced by replacing the V-groove yourself.
Customer Benefits
The Mass Fusion Splicer 100R Kit series reduces the need for fiber resetting, making it ideal for data center projects with high splice counts. It also features an automatic wind protecter open and close function, "ACTIVE FUSION CONTROL TECHNOLOGY" for automatic arc condition control, and "ACTIVE BLADE MANAGEMENT TECHNOLOGY" that automatically manages the fiber cleaver blades, ensuring high splicing quality.
Lineup
| 100R4 | 100R12 | 100R16 | |
|---|---|---|---|
| Number of fibers that can be fusion spliced | single-core up to 4 fiber ribbon | single-core up to 12 fiber ribbon | single-core up to 16 fiber ribbon |
Option
・V-groove : VG04-02/VG12-02*/VG16-02*/VG12-02-200*/VG16-02-200*
・Fiber holder : FH-80-2/ FH-80-4/ FH-80-8*/ FH-80-12*/FH-80-16*/FH-80-12-200*/FH-80-16-200*
*cannot be used with 100R4
Fiber Optic Fusion Splicing Training
Fujikura offers fusion splicing training courses with optic fiber handlings. Through these courses, you will gain an understanding in fiber optic communications, installations, testing procedure with necessity equipment. You will also learn how to make the right knowledge in choosing the most suitable equipment for your project. Please contact Fujikura authorized distributor more information.
