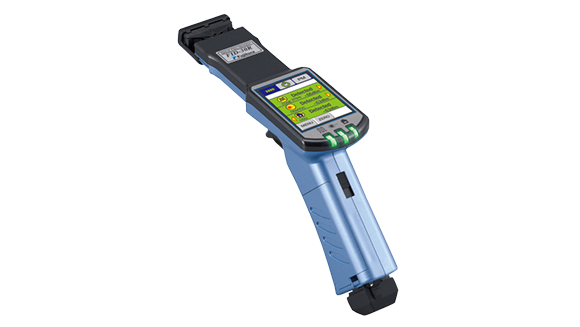

Optical Fiber Identifier FID-30R/31R/32R
Applications
- Detecting the presence or absence of light in optical fiber cores.
Features
- 01

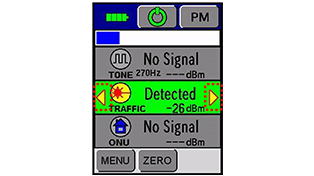

Various measurement functions

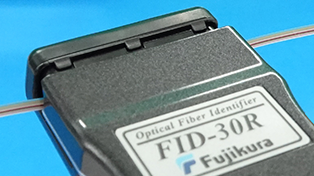

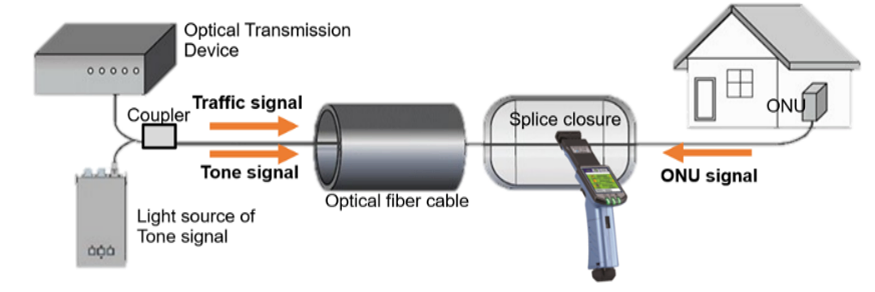

By simply pinching the optical fiber, the presence of tone, traffic, and ONU signals can be detected without interrupting the line.
- 02
No need to replace bent parts
The bending tip accommodates fibers from 0.25 mm single fiber to 3 mm cord, as well as up to 12-fiber ribbon.
- 03

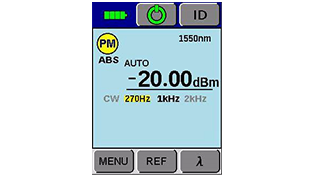

Power meter function (FID-30R only)
Measures communication wavelengths of 1310, 1490, and 1550 nm, along with fiber reference signals at 270 Hz, 1 kHz, and 2 kHz.
Customer Benefits
Detection is performed by simply clamping the fiber or cord, enabling fast, non-intrusive measurement without interrupting the line. Compatible with single- and multimode fibers, the unit offers standard, high-speed, and high-sensitivity modes to suit different applications and line conditions.
Lineup
There are two models available, with or without a power meter function.
- FID-30R: With power meter function
- FID-31R: Without power meter function
| FID-30R | FID-31R | |
|---|---|---|
| Power Meter | ✔ | ー |
| ONU Detection | ✔ | ✔ |
Product Catalog
You can find the product specifications here.
Please download them using the button below.
Selection Process
・FID-30R: With power meter function
・FID-31R: Without power meter function
