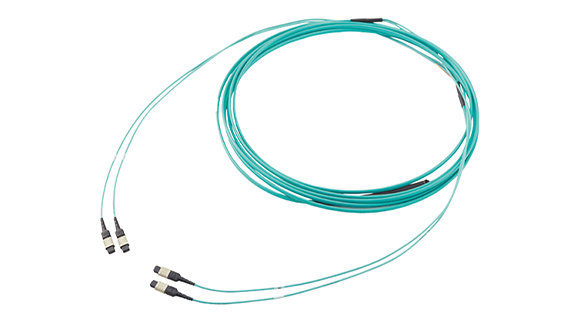

Trunk Cable
Applications
- High-capacity fiber optic connections
Features
- 01
Achieves Space Savings during Multi-Fiber Cabling
Compared to conventional bundled cables, it features a smaller diameter, achieving space savings for multi-fiber wiring.
- 02
Optimal Combination with Multi-Fiber MPO Connectors
This cable houses 12 fibers in a 3mm sub-unit (cord), making it ideal for pairing with MPO connectors.
- 03

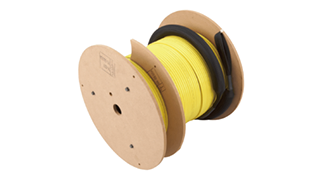

Supports Pull-End and Reel Packaging depending on Installation Environment
Its compact size (flange diameters of 44cm and 60cm) facilitates easy transport into data center server rooms. The material generates minimal wood dust, making it suitable for use within server rooms.
Customer Benefits
This cable serves as the backbone for MPO cabling systems connecting racks and rooms within data centers. It aggregates 12-fiber subunit cables to achieve multi-fiber, high-density performance.
Product Catalog
You can find the product specifications here. Please download them using the button below.

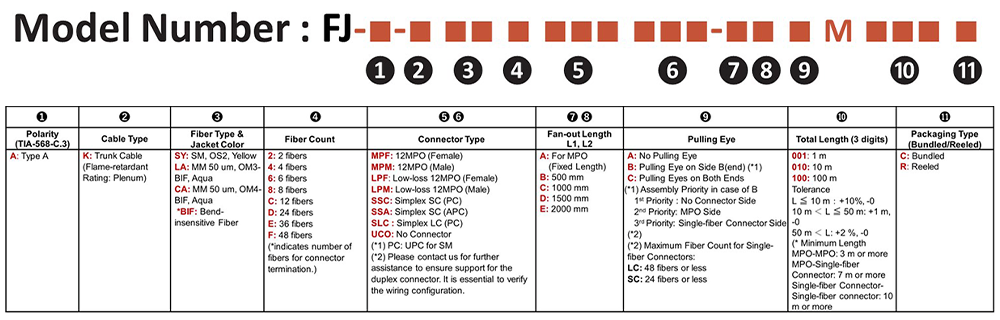

Selection Process

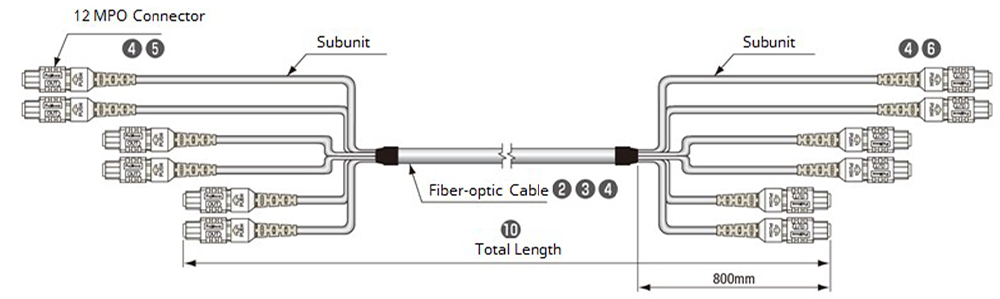

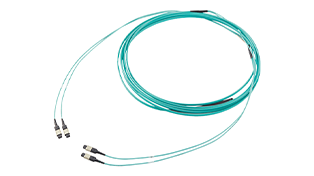

MPO Connector

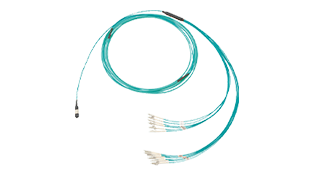

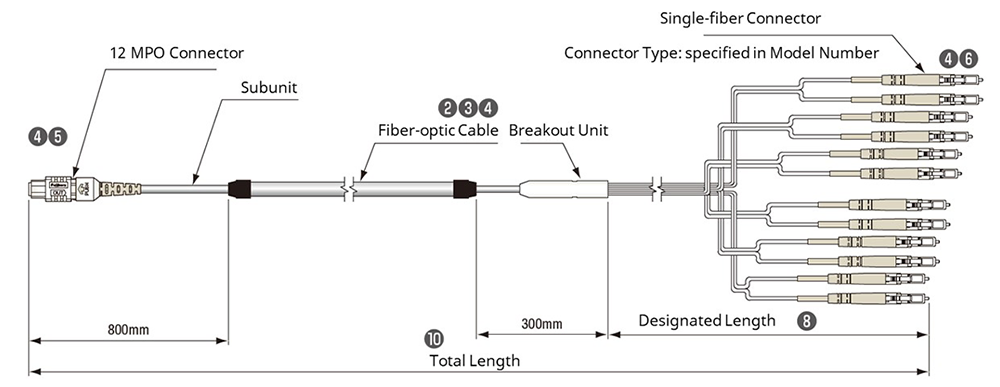

MPO-Single-fiber Connector (Fan-out)

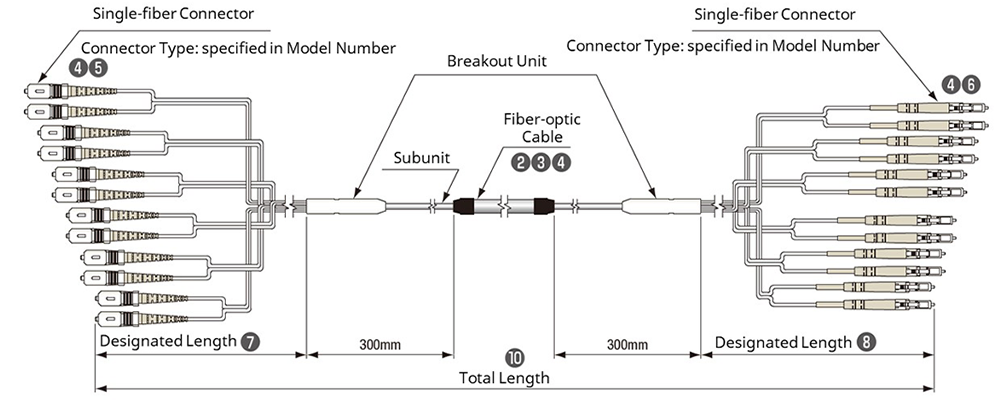

Single-fiber Connector (Fan-out) – Single-fiber Connector (Fan-out)
