Fiber Optic Termination Box for 19-inch Rack Mounting (Sliding Enclosure) FTB-235 Series
Applications
- 19-inch Rack
Features
- 01
Flexible Combination
By combining frames, adapter panels, wiring guides, and multi-fiber cable clamps, we can flexibly accommodate various needs.
- 02
Easy Workability

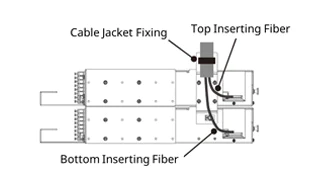

The slide mechanism allows easy maintenance and additional cable connections after installation.
- 03
Prevents Misinsertion
The transparent optical adapters allow port verification using visible light (for SM only), helping to prevent accidental removal.
Customer Benefits
Flexible adaptation to various needs through combination of various configuration components. The slide mechanism and accidental removal prevention function also contribute to improved workability and safety.
Lineup
Fiber Optic Termination Box for 19-inch Rack Mounting (Sliding Enclosure)FTB-235 Series

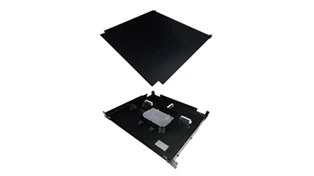

Patch Panel Body

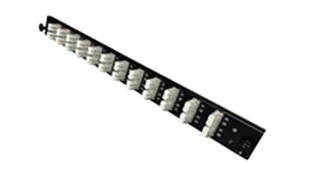

Adapter Panel (for 1U)
(1U, Transparent)
(1U, Transparent)
Adapter Panel (for 2U)
(2U, Transparent)
(2U, Transparent)
(2U, Transparent)
Product Catalog
You can find the product specifications here. Please download them using the button below.
Selection Process
Configuration Example

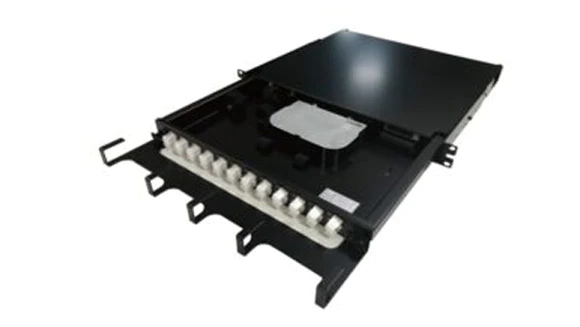

Configuration Example 1
For SC Connector, 24 fibers
Adapter Panel: FTB-2351-AP(24SC/CL)
Wiring Guide: FTB-235-WMP(24/48)

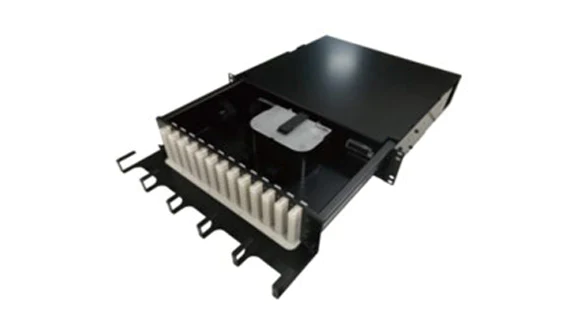

Configuration Example 2
For SC Connector, 104 fibers
Adapter Panel: FFTB-2352-AP(104SC/CL)
Wiring Guide: FTB-235-WMP(104)
