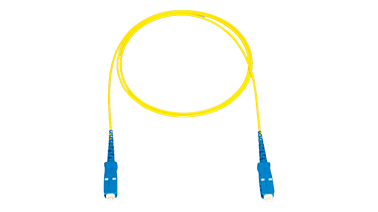

Simplex Patch Cord
Applications
- Cabling in the optical equipment for inside plant

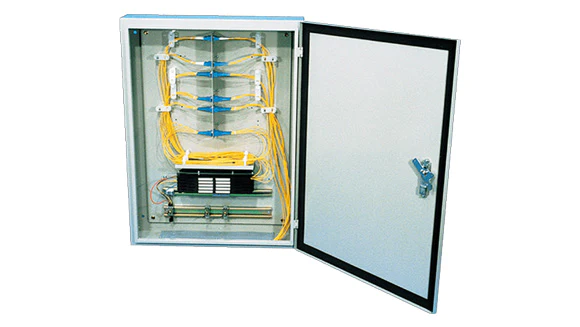

- Cabling in the Optical Termination Enclosure and Optical Distribution Frame
Features
- 01
High-Quality Connection Reliability
Strict manufacturing control and high-precision optical connectors minimize optical signal loss, ensuring stable communication quality.
- 02
Simplified Installation
Pre-terminated at the factory, these cables simplify on-site handling. They reduce connection time and minimize installation errors, contributing to lower overall project costs.
- 03
Versatile Flexibility
It is suitable for a wide range of applications, from communication equipment to industrial machinery and data centers, meeting diverse customer needs.
Customer Benefits
Enables easy construction of high-quality, stable optical communication environments, improving operational reliability and cost efficiency.
Lineup

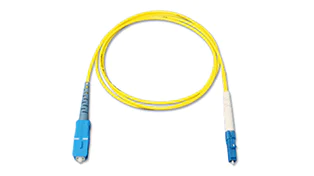

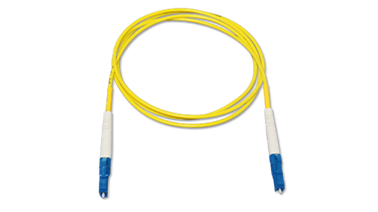

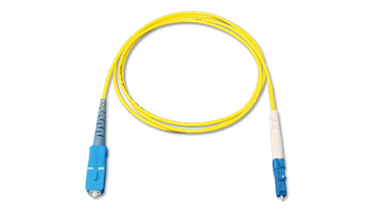

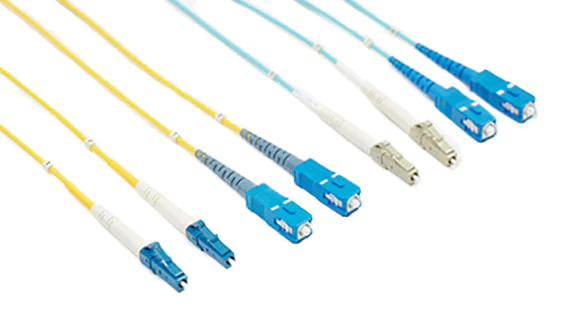

Simplex Patch Cords and Pigtails
Product Catalog
You can find the product specifications here. Please download them using the button below.
Selection Process

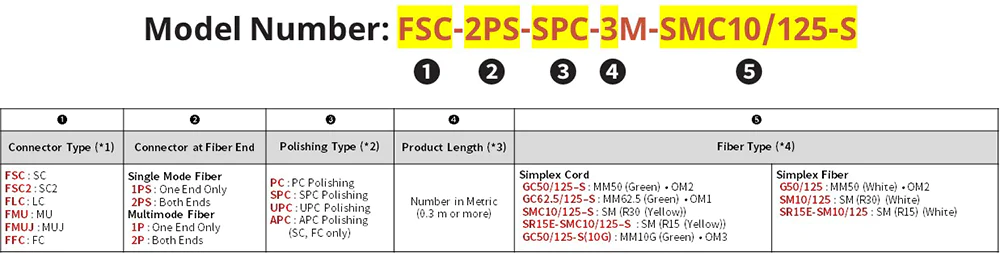

Ordering Information

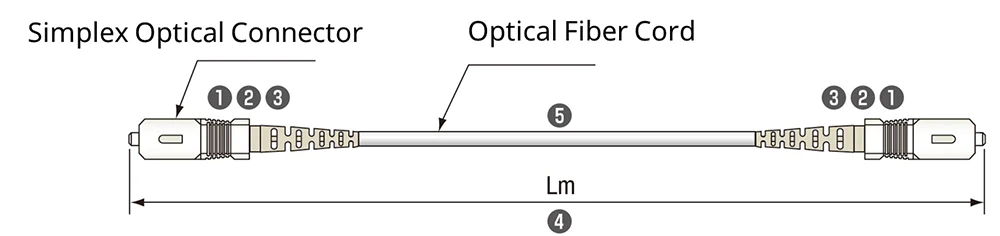

Both End with Connectors
(*1): When different connectors are attached at both ends, indicate FFC/FSC.
(*2): When polishing at both ends is different, indicate PC/SPC. Multimode fiber is PC polishing only.
(*3): Product length tolerances are shown below:
| Product Length | Tolerance |
|---|---|
| L ≤ 1 m | +10 cm, -0 |
| 1 m < L ≤ 10 m | +10%, -0 |
| 10 m < L ≤ 50 m | +1 m, -0 |
| 50 m < L | +2%, -0 |

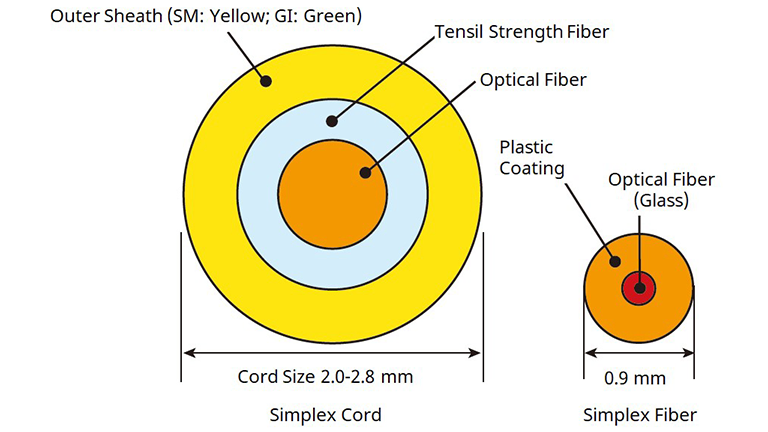

(*4): For Ø 0.9 mm fiber and Ø 2 mm cord, color in () indicates coating color.
