Telecommunication uses
Fusion splicer enable splicing of Fiber Optic Cable with low loss and high reliability. For fusion splicer, we offer two types: Core alignment fusion splicer, which bring high performance and functionality, and Cladding alignment fusion splicer, which are superior in portability. For Mass fusion splicer, we provide two types as well: a 16-core mass fusion splicer suitable for data center construction, and a 4-core mass fusion splicer designed for FTTH cable installation. Fusion splicer and tools communicate with Bluetooth, allowing stable and high-quality splice.
Splicers
-
Core Alignment Fusion Splicer 100S Kit
100S Kit is a core alignment fusion splicer for single optical fibers. Since it can conduct two optical fibers preparation simultaneously, it reduces splicing time compared to conventional models.
-

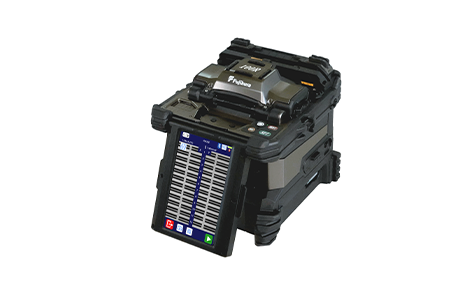

Mass Fusion Splicer 100R Kit series
100R Kit is a mass fusion splicer for single optical fibers up to 16 fiber ribbon. The “Automatic Optical Fiber Seating Function” reduce the need for re-setting the optical fiber.
-

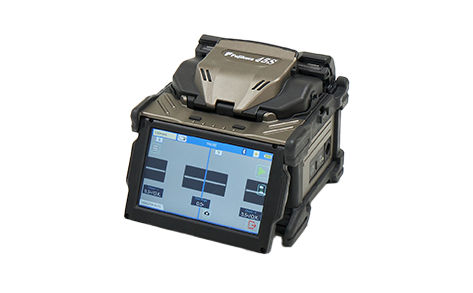

Clad Alignment Fusion Splicer 45S Kit
45S Kit is a cladding alignment fusion splicer for single optical fibers. Since it can conduct two optical fibers preparation simultaneously, it reduces splicing time compared to conventional models.
-

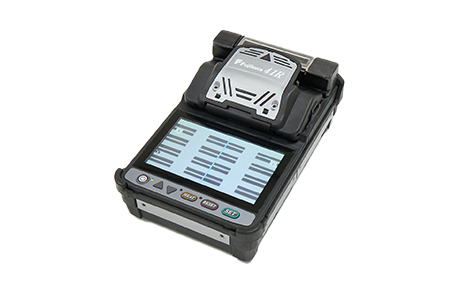

Mass Fusion Splicer 41R Kit
41R can splice optical fibers varying from single fiber up to 4-core fibers. Equipped with wireless communication functionality, it communicates bidirectionally with tools to manage their status in real time.
Strippers
-

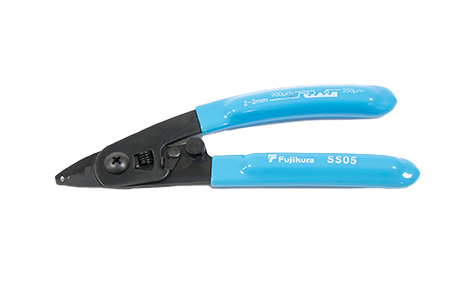

Single Fiber Stripper SS05
SS05 is a tool for stripping the coating of single optical fiber. The coating diameter supported ranges from 125 μm to 3 mm.
-

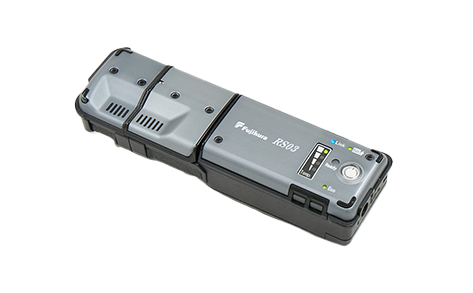

Ribbon Fiber Stripper RS03
RS03 is a tool for stripping the coating of optical fibers ranging from single core up to 16-core. Designed with operability and ease of use in mind, it allows coating removal with low pull-out force.
Others
-

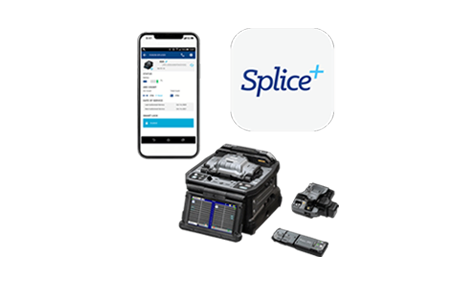

Splice+ Cloud Connectivity App
Splice + is a smartphone app for fusion splicers and tools. It enable to check splicing results, manage tool status, and change setting.
-

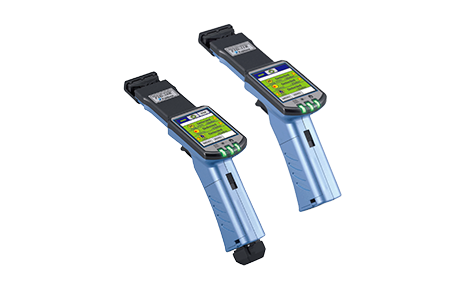

Optical Fiber Identifier FID-30R/31R
FID-30R is a compact fiber identifier for optical fiber. It allows measurement without interrupting communication. It supports both singlemode and multimode optical fibers.
-

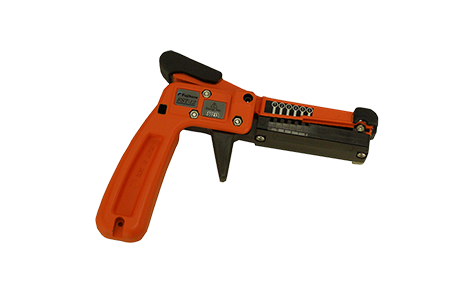

Fiber Separation Tool FST-12
The FST-12 is a tool for splitting a 12-fiber ribbon into individual fibers with various separation ratios from 1:11 to 6:6. This handy tool is designed for operation in limited space in like a splice closure.
-

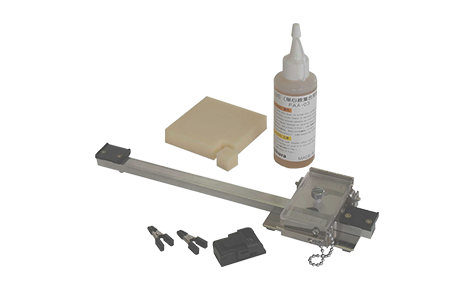

Fiber Arrangement Tool FAT-04
FAT-04 is a tool for gathering single-core optical fibers with a 250 μm coating diameter. It aligns single fibers collectively and processes them into a tape-like form used in optical ribbon fiber.
-

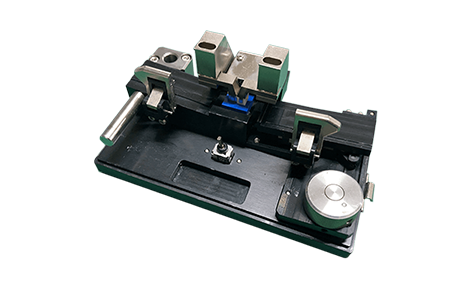

Optical Fiber Temporary Jointing Device TJ series
TJ series is a compact and lightweight tool that allows easy temporary connections for pulse testing before and after optical fiber installation, as well as continuity and loss testing.
Fiber Optic Fusion Splicing Training
Fujikura offers fusion splicing training courses with optic fiber handlings. Through these courses, you will gain an understanding in fiber optic communications, installations, testing procedure with necessity equipment. You will also learn how to make the right knowledge in choosing the most suitable equipment for your project. Please contact Fujikura authorized distributor more information.
