FuseConnect™ for MPO
FuseConnect™ for MPO is factory pre-polished and could be terminated easily. Similar to the conventional single-core type of Fuse Connector in the field.

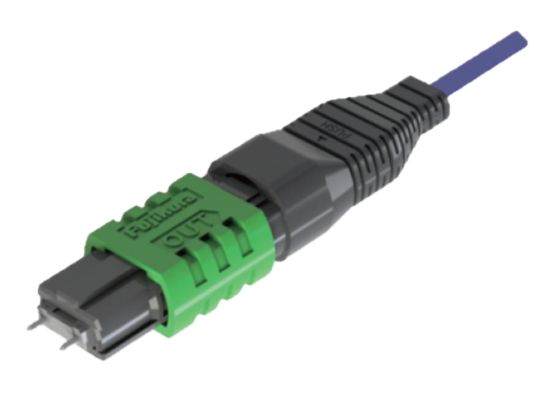

FuseConnect™ MPO

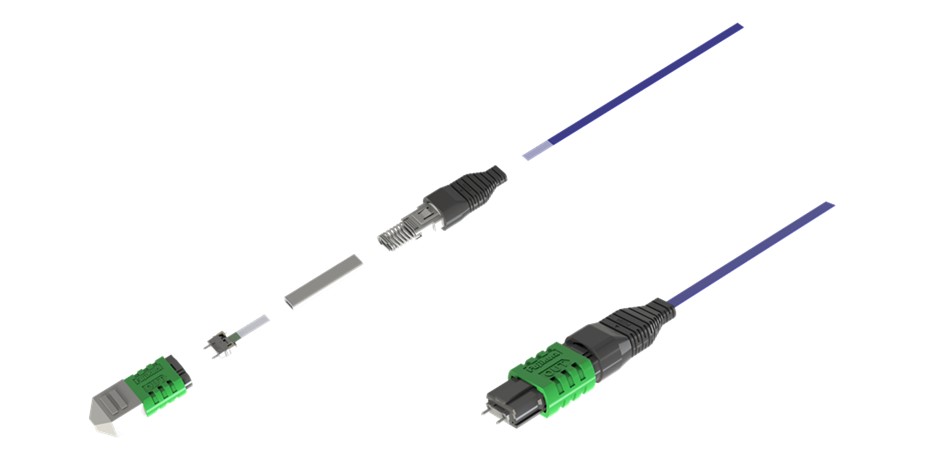

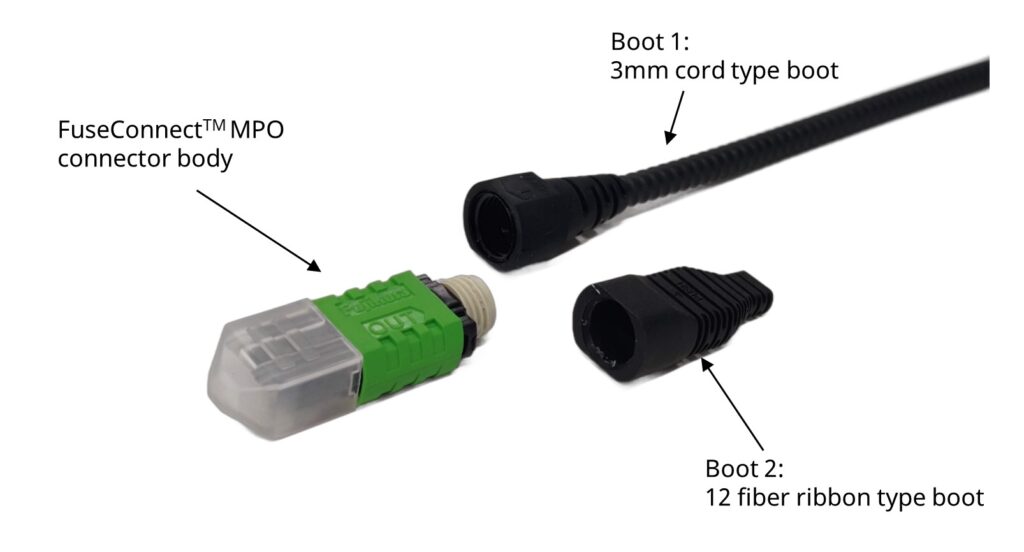

FuseConnect™ MPO splice-on, field-installable connectors are uniquely designed and feature just six
components. The innovative factory pre-polished ferrule allows for a field-termination process that eliminates
the need for polishing, adhesives and crimping in the field and minimizes the potential for operator error and
expensive connector scrap. FuseConnect™ MPO is part of the FuseConnect™ splice-on connector family
which includes SC and LC style connectors.
The connector is designed for use with the RT-02 ribbonizing tool which does not require ribbonizing glue
resulting in a cleaner termination process.
FuseConnect™ MPO performs as an equivalent to the standard factory terminated MPO/MTP™ assemblies.
Designed to utilize standard ribbon, Spider Web Ribbon™, or loose tube cable, this connector helps
minimize the complexity involved in the termination of a multi-fiber connection, allowing for a reliable and
repeatable termination in field applications. Fujikura offers a tool kit as well as a variety of accessories
designed to meet all your installation needs for your FuseConnect™ MPO application.
MTP™ is a trademark of US Conec Ltd.
Specifications
| Applicable Fiber/Cable | ● 12 fiber ribbon type (0.25mm fiber) ● 3mm cord type | |||
| Connector | MPO (12f) | |||
| Type | SC (*1) | Low Loss SM | MM(OM1) (*2) | MM(OM4) (*3) |
| Polishing | APC | PC | ||
| Housing Color | Green | Yellow | Beige | Aqua |
| Insertion Loss (*4) | ≦0.75 dB | ≦0.35 dB | ≦0.35 dB | |
| Return Loss (*4) | ≧65 dB | ≧65 dB | ― | |
| Remark | 6pcs packing unit | |||
(*1) Mode field diameter: 8.6 μm. (For 9.2 μm type, please consult with us.)
(*2) GI62.5/125, IEC60793-2-10A1b
(*3) GI50/125, IEC60793-2-10A1a.3
(*4) with reference connector, SM @ 1310, 1550 nm, MM @ 850, 1310 nm
Ordering information
| Type | Polishing | Male(Connector with guide pin) | Female(Connector without guide pin) |
| SM | APC | FUSECONNECT-MPO-S-MALE-SM15-6 | FUSECONNECT-MPO-S-FEMALE-SM15-6 |
| Low Loss SM | APC | FUSECONNECT-MPO-S-MALE-LLSM15-6 | FUSECONNECT-MPO-S-FEMALE-LLSM15-6 |
| MM(OM1) | PC | FUSECONNECT-MPO-S-MALE-GI6-6 | FUSECONNECT-MPO-S-FEMALE-GI6-6 |
| MM(OM4) | PC | FUSECONNECT-MPO-S-MALE-OM4-6 | FUSECONNECT-MPO-S-FEMALE-OM4-6 |
Optical product:

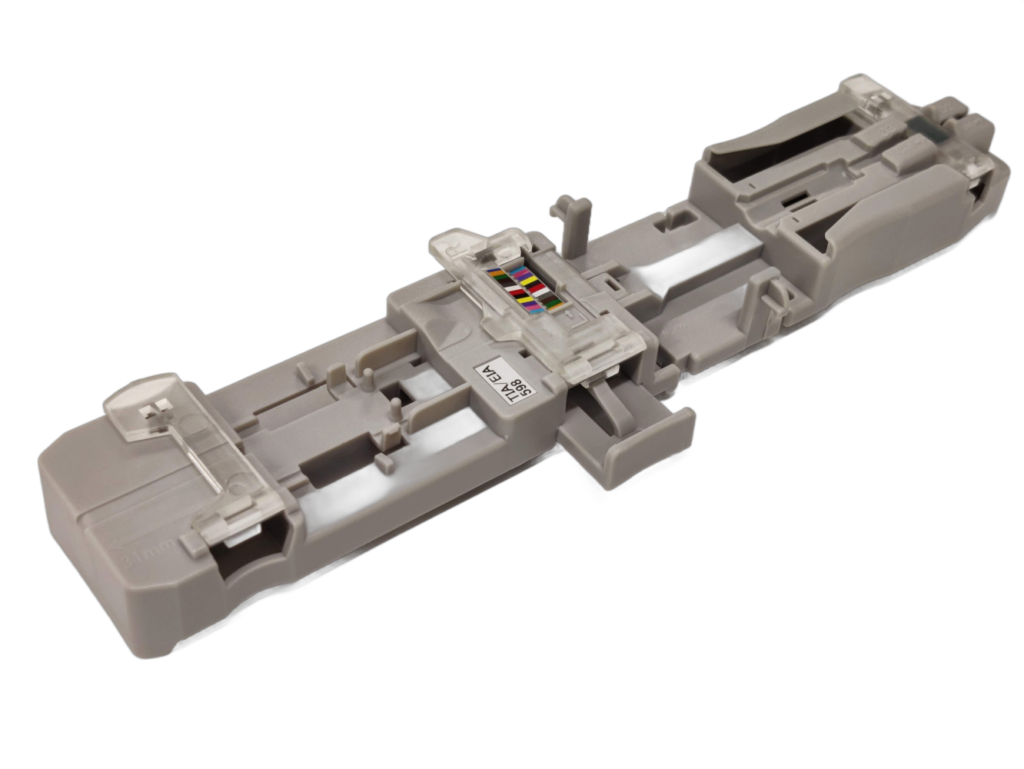

RT-02/Ribbonizing tool

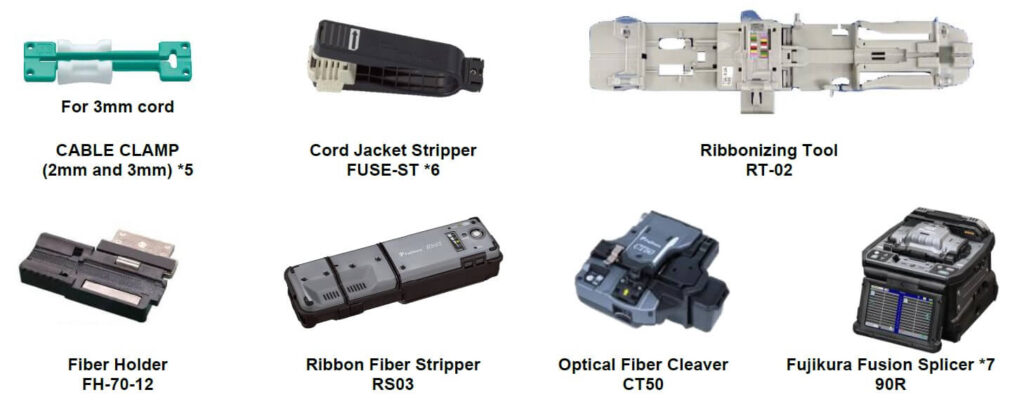

Assembly Tool
| Tools ＼Connector types | Standard Ribbon, Spider Web Ribbon™ | Ø3 mm Cord | ||
| Cord Clamp | Unnecessary item | CABLE CLAMP (2 mm and 3 mm) (*5) | ||
| Cord Jacket stripper | Unnecessary item | FUSE-ST (*6) | ||
| Fiber Holder | FH-70-12 | |||
| Fiber Arrangement Tool | Unnecessary item | Ribbonizing tool RT-02 | ||
| Stripper | Ribbon Fiber Stripper RS03 | |||
| Cleaver | CT50 | |||
| Fusion Splicer | Fujikura Fusion Splicer (*7) | |||
| Aramid Yarn Cutter | Unnecessary item | Off-the-shelf tool | ||
Note: Alcohol and wipes are also necessary for fiber cleaning process
(*5) Both 2 mm and 3 mm cable clamps are provided as a tool set. Use 3 mm type for assembly.
(*6) This is a cord jacket splitting tool for Fuseconnect™ connector assembly. Available for Ø 1.6 mm, Ø 2.0 mm, Ø 2.8 mm
and Ø 3.0 mm cord.
(*7) Applicable Fusion Splicers 90R and 70R.
