FuseConnect™ Series

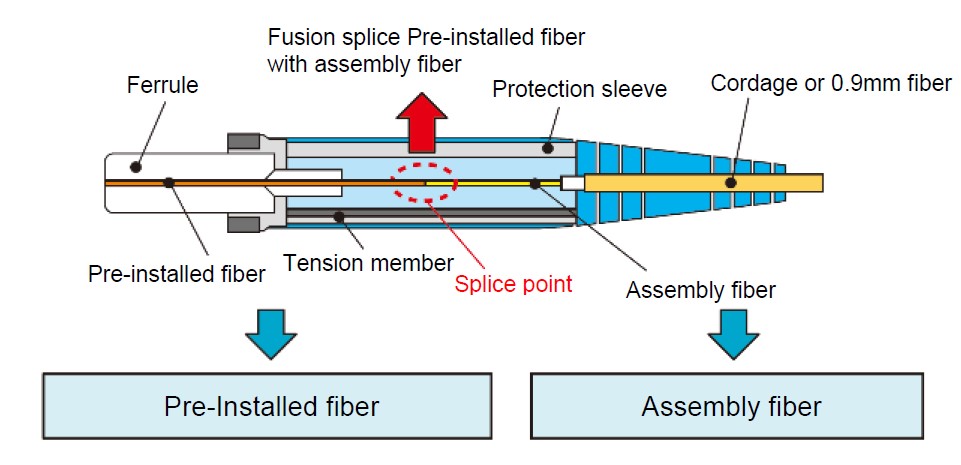

FuseConnect™ is factory pre-polished, field-installable connectors by fusion splice that completely eliminate the need for hand polishing in the field.
FuseConnect™ Series
FuseConnect™ is designed to work with an industry standard cleaver and splicers utilising a fibre holder
system and the simplified field installation process minimises the potential for operator error and expensive
connector scrap, even in difficult field environments or in exposed conditions at remote site locations.
Our latest fusion splicers are also pre-programmed for FuseConnect™ terminations, which further simplifies
the assembly process.
Features
● No epoxy, No polishing
● Easily fusion splicer termination operation
● FuseConnect™ is designed for 900 μm coated fiber, 2 mm / 3 mm cord and rectangle shaped drop/indoor cable
Applications
● Field termination of optical connector in Data center and central office
● Low return loss connection

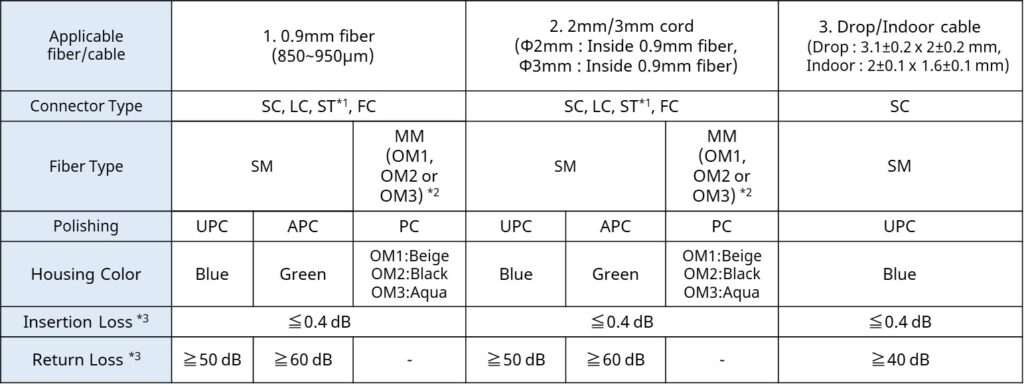

Specifications
1) 0.9 mm fiber / 2 mm cord
| Applicable Fiber | 0.9 mm Fiber (850–950 µm) or 2 mm Cord (inside 0.9 mm Fiber) | ||
| Connector | SC, LC | ||
| Fiber | SM | MM (OM1, OM4) (*1) | |
| Polishing | UPC | APC | PC |
| Housing Color | Blue | Green | OM1: Beige, OM4: Aqua |
| Insertion Loss (*2) | ≤ 0.4 dB | ||
| Return Loss (*2) | ≥ 50 dB | ≥ 60 dB | ー |
2) Rectangular shaped cable
| Applicable Fiber | 0.9 mm Fiber (850–950 µm) or 2 mm Cord (inside 0.9 mm Fiber) | |
| Connector | SC, LC | |
| Fiber | SM | |
| Polishing | UPC | APC |
| Housing Color | Blue | Green |
| Insertion Loss (*2) | ≤ 0.4 dB | |
| Return Loss (*2) | ≥ 50 dB | ≥ 60 dB |
(*1) OM1:GI 62.5/125, IEC60793-2-10A1b, OM4:GI50/125, IEC60793-2-10A1a.3 OM2 and OM3 are also available
(*2) with master, SM @ 1310,1550 nm, MM @ 850,1310 nm

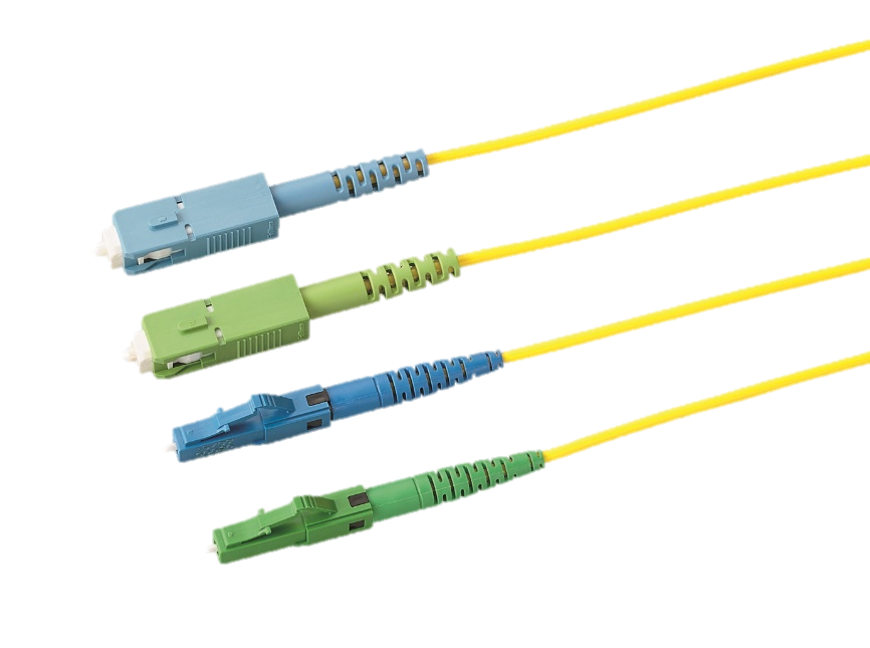

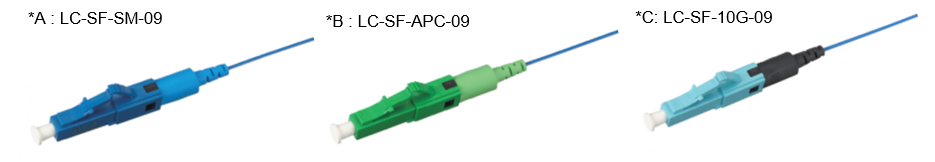

Ordering Information / Product Image (After assembly)

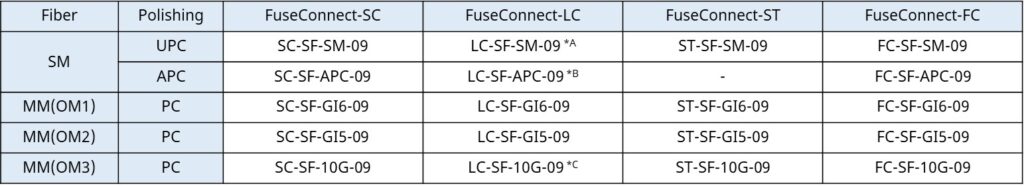

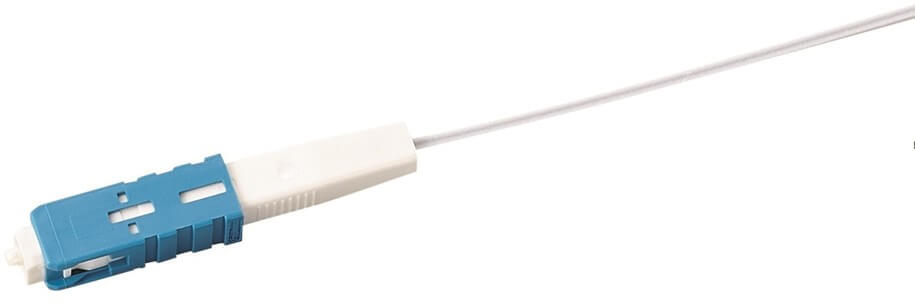

1) 0.9 mm fiber
| Fiber | Polishing | SC | LC |
| SM | UPC | SC-SF-SM-09 | LC-SF-SM-09 (*A) |
| APC | SC-SF-APC-09 | LC-SF-APC-09 (*B) | |
| MM(OM1) | PC | SC-SF-GI6-09 | LC-SF-GI6-09 |
| MM(OM4) | PC | SC-SF-10G-09 | LC-SF-OM4-09 (*C) |

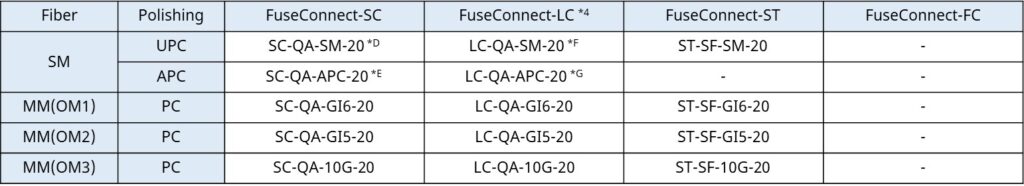

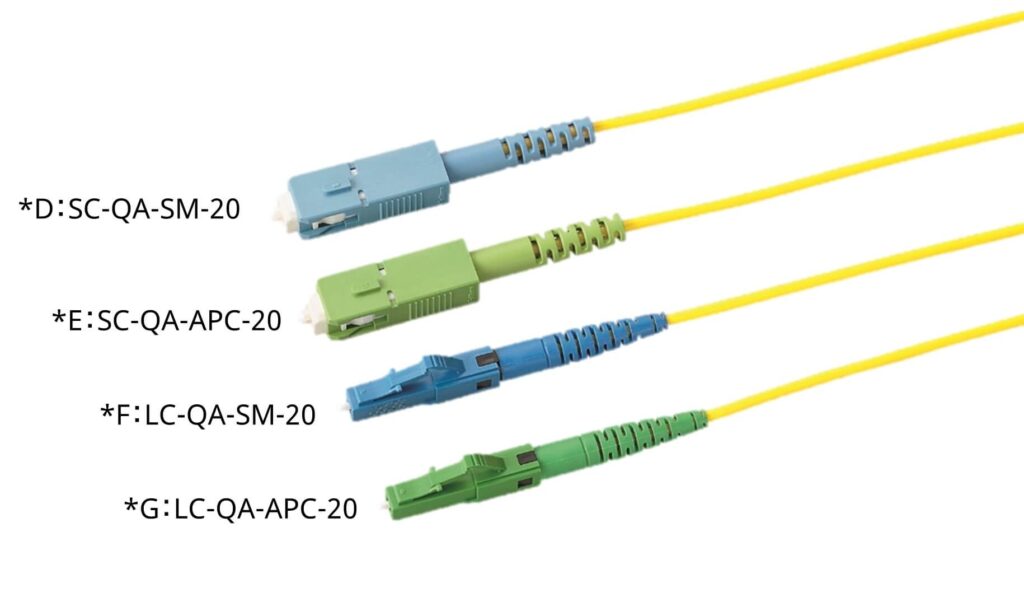

2-1) 2 mm code only (*3)
| Fiber | Polishing | SC | LC |
| SM | UPC | SC-QA-SM-20 (*D) | LC-QA-SM-20 (*F) |
| APC | SC-QA-APC-20 (*E) | LC-QA-APC-20 (*G) | |
| MM(OM1) | PC | SC-QA-GI6-20 | LC-QA-GI6-20 |
| MM(OM4) | PC | SC-QA-OM4-20 | LC-QA-OM4-20 |

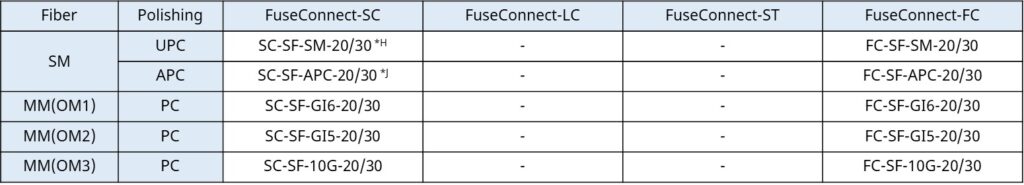

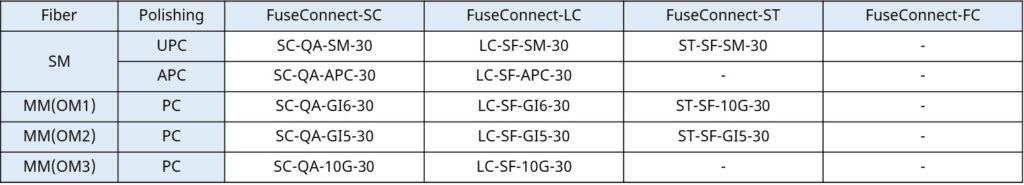

(*3) 3 mm cord type is also available

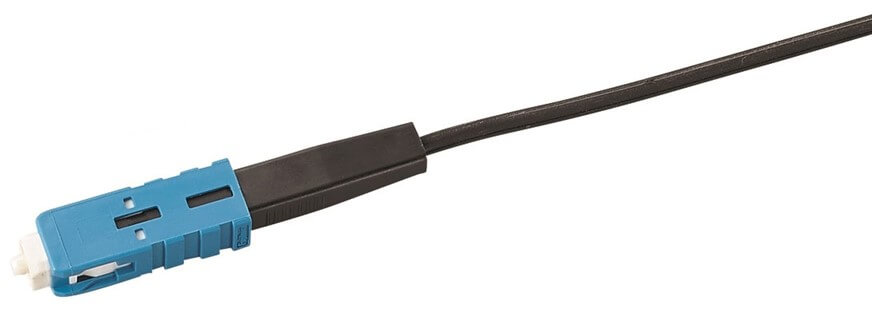

3-1) Rectangular shaped cable: Outdoor (3.1 x 2 mm)
| Fiber | Polishing | SC | LC |
| SM | UPC | SC-DC (*H) | ー |
| APC | SC-DC-APC | ー |
3-2) Rectangular shaped cable: Indoor (2 x 1.6 mm)
| Fiber | Polishing | SC | LC |
| SM | UPC | SC-LFC (*I) | ー |
*H：SC-DC
*I：SC-LFC

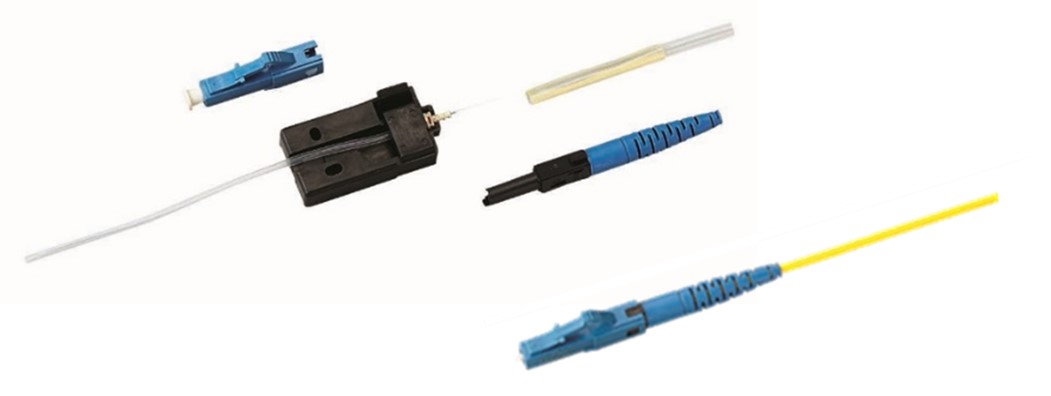

Assembly Flow of Fuse Connector
FuseConnect-SC-QA-SM-20 (SC connector, QA type, SM, 2 mm cord)
1. Remove cord jacket and cut Aramid yarn in proper length. Remove 0.9 mm coated fiber and set onto the fiber holder for cleaving the fiber in proper length.
2. Set fiber holder and connector holder onto fusion splicer for splicing.
3. Set protection sleeve to the spliced fiber with Aramid yarn. Heat the protection sleeve.
4. Assemble housing.
Note: See operation manual for details. Assembly flow is different in connector types and cord types.

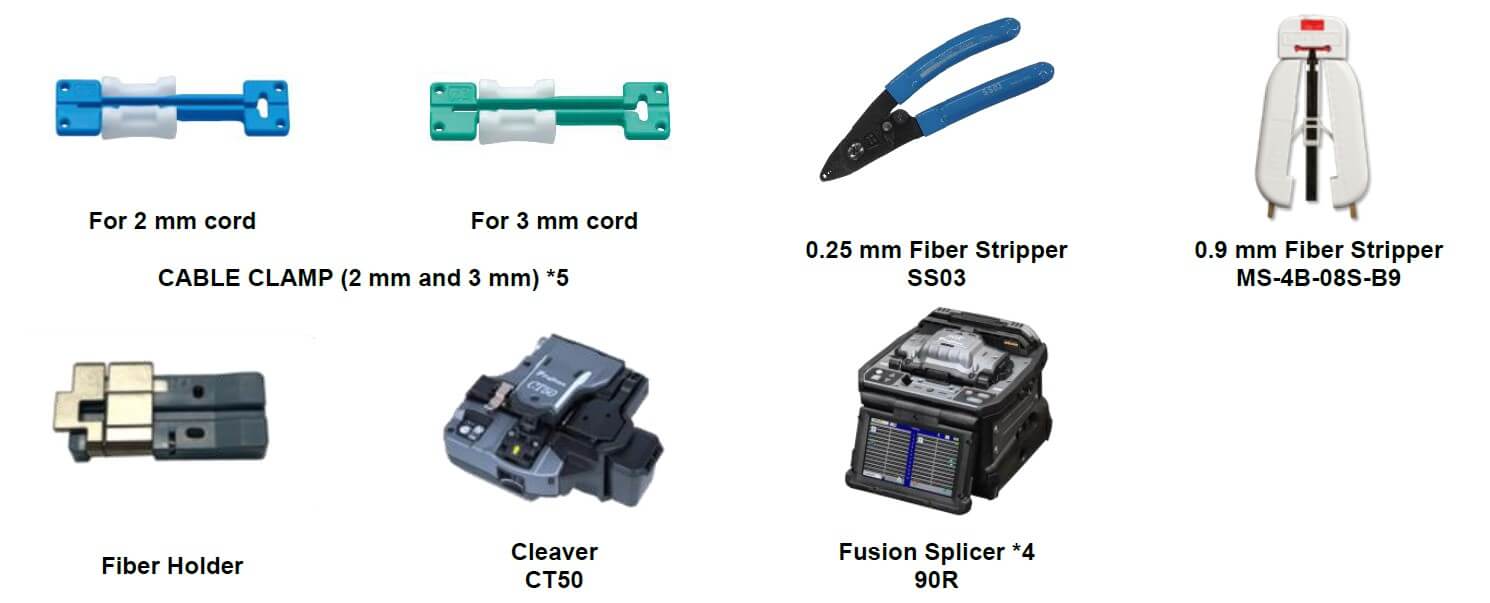

Assembly Tool
For 0.9 mm fiber and Rectangular shaped cable
● LFC/DC types
For LFC cable：FUSECONNECT-SC-LFC
For DC cable ：FUSECONNECT-SC-DC
● SF types
For 0.9 mm fiber： FUSECONNECT-■-SF-■-09
| Tools ＼Connector types | LFC/DC types | SF types | |
| LFC cable | DC cable | 0.9mm fiber | |
| Stripper | Include with connector kit | Include with connector kit | 0.25mm fiber stripper SS03 or 0.9mm fiber stripper MS-4B-08S-B9 |
| Fiber Holder | FH-60-IDC-250 | FH-60-IDC-250 | FH-50-900、FH-60-900 |
| Cleaver | CT08、CT16、CT50 | ||
| Fusion Splicer | Fujikura Fusion Splicer (*4) | ||
For Cordage
● QA types
For 2 mm cord：FUSECONNECT-■-QA-■-20
| Tools ＼Connector types | QA types | ||
| For 2mm cord | |||
| Cord Clamp | CABLE CLAMP (2mm and 3mm) (*5) | ||
| Cord Jacket stripper | 0.25mm fiber stripper SS03 or off-the-shelf fiber stripper | ||
| Aramid yarn cutter | off-the-shelf tool | ||
| Stripper | 0.25mm fiber stripper SS03 or 0.9mm fiber stripper MS-4B-08S-B9 | ||
| Fiber Holder | FH-FC-20 | ||
| Cleaver | CT08、CT16、CT50 | ||
| Fusion Splicer | Fujikura Fusion Splicer (*4) | ||
Note: Alcohol and wipes are also necessary for fiber cleaning process
(*4) Applicable Fusion Splicers: 90S+/90S/90R, 45S, 41S+/41R, 70S+/70S/70R, 19S+/19S/19R, 12Si/12S/12R
(*5) Both cable clamps are provided as a tool set.
